2.3.6 Cutting Chamber

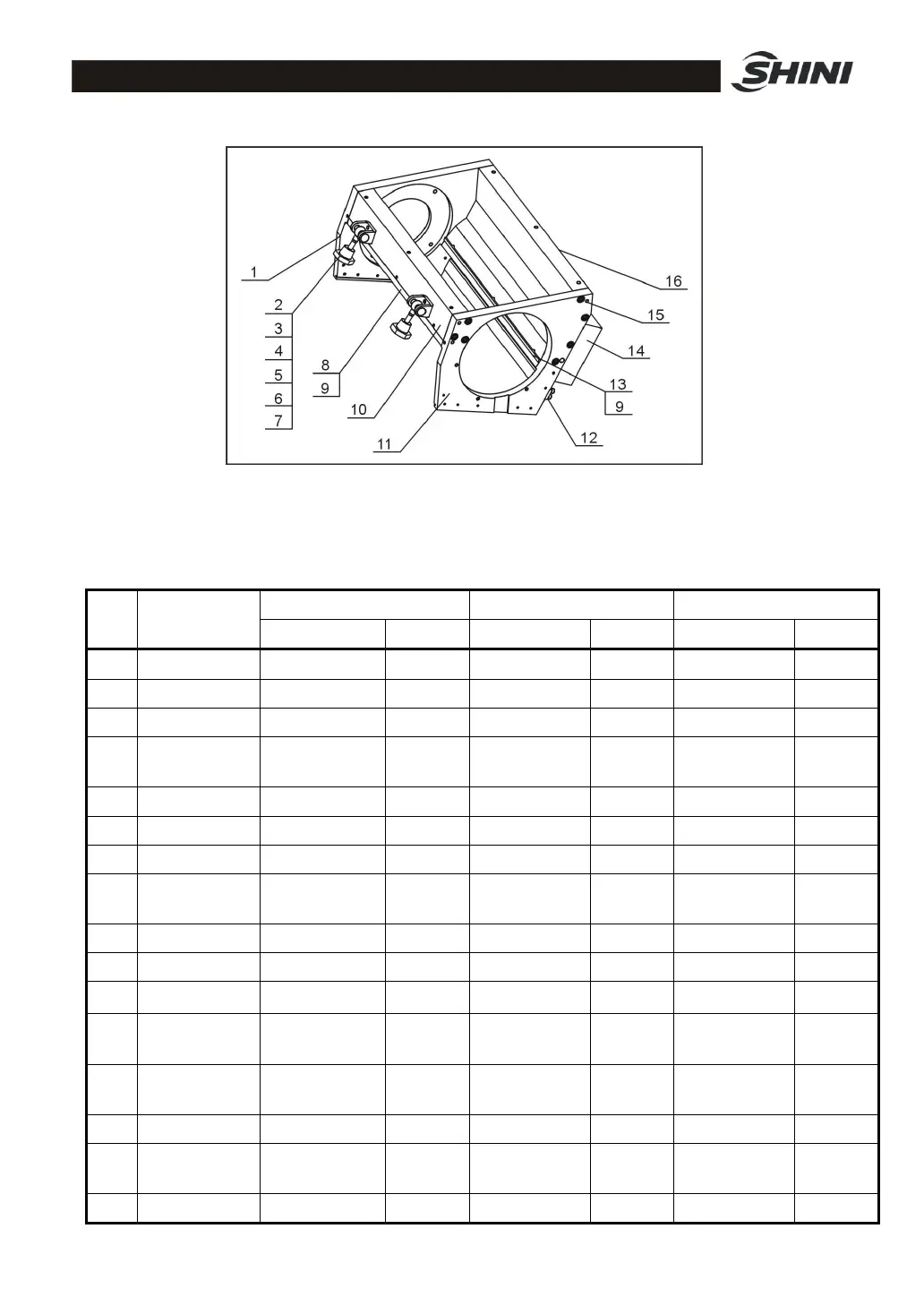

Picture 2-8：Cutting Chamber
2.3.7 Parts List of Cutting Chamber
Chart 2-6：Parts List of Cutting Chamber One
SG-2324 SG-2336 SG-2348
No. Name
Part No. Quantity Part No. Quantity Part No. Quantity
1 Left side plate BH10232500010 1 BH10232500010 1 BH10232500010 1
2 Hinge base - 1 - 2 - 2
3 Shaft pin YW09301400000 1 YW09301400000 2 YW09301400000 2
4
A type circlip
for shaft 16
YW69001600000 1 YW69001600000 2 YW69001600000 2
5 Star screw YW09003010500 1 YW09003010500 2 YW09003010500 2
6 Flat gasket YW66123200100 1 YW66123200100 2 YW66123200100 2
7 Star nut (M12) YW09001200500 1 YW09001200500 2 YW09001200500 2
8
Front pressing
block
BW30232400110 1 BW30233600110 1 BW30234800110 1
9 Fixed blades BW40232400040 1 YW42233600100 2 YW42234800100 2
10 Front block - 1 BW30233600010 1 BW30234800010 1
11 Right side plate BH10231100010 1 BH10231100010 1 BH10231100010 1
12
Screen bracket
fixing plate
- 1 - 1 - 1
13
Back pressing
block
BW30232400410 1 BW30233600410 1 BW30234800410 1
14 Water tank - - - - - -
15
Elastic fixing
pin 8×35
YW69083500000 8 YW69083500000 8 YW69083500000 8
16 Rear box block 1 BH10236500010 1 BH10230800010 1
