91(107)
screws.

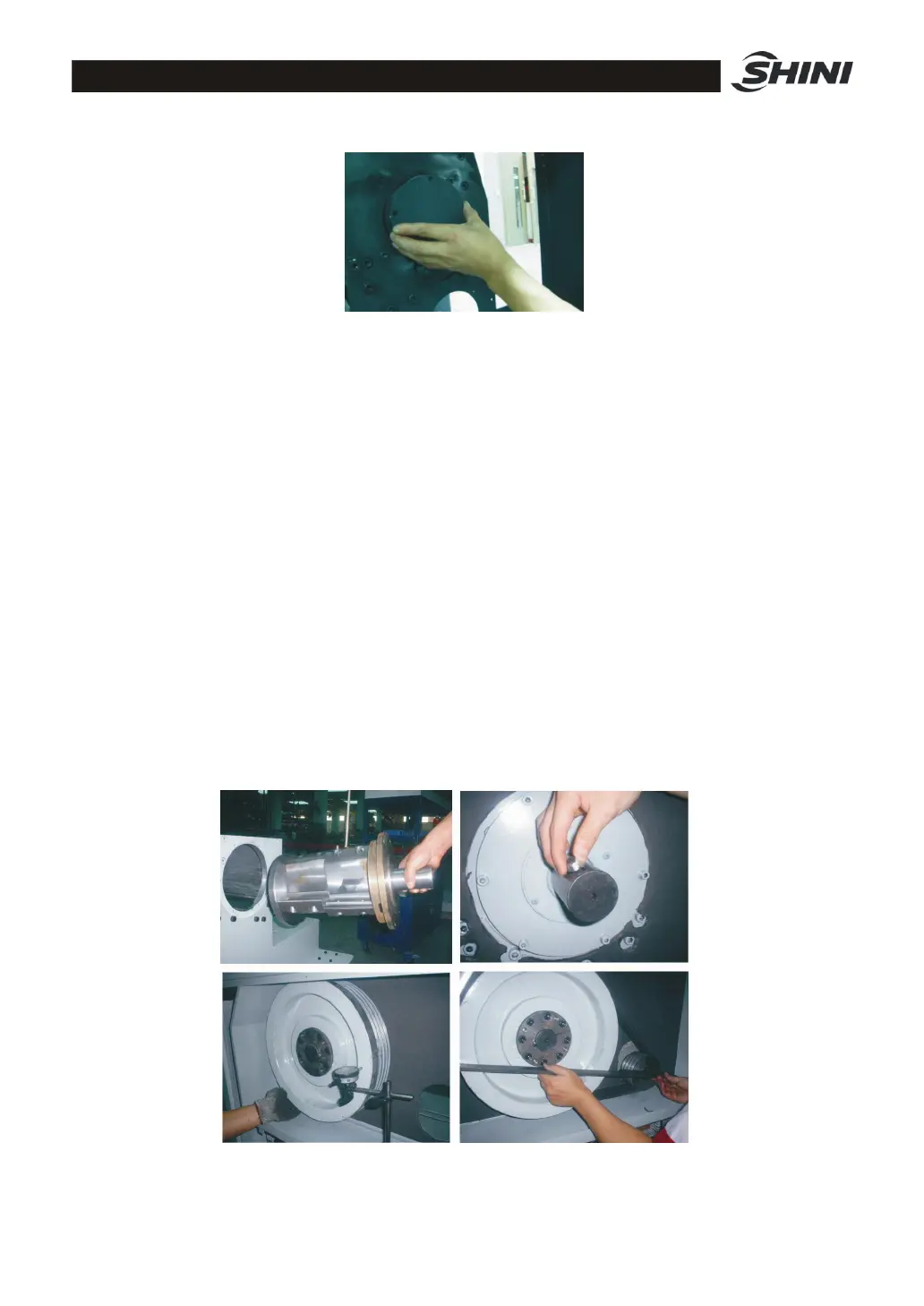

Picture 3-7：Installation of Bearing Cover Plate
3.4 Installation of Bearing, Motor, Belt Plley and Belt
1) Install baffles at both of the right and left sides of blade rest.
2) Spread lubricating grease on bearing and bearing block and then put the
bearing into bearing block.
3) Use oil press to press the bearing to the bearing installation position on
rotation shaft.
4) After fixing the cutting chamber and base, put the blade rest into the cutting
chamber in the order from the left to the right and then tighten the bearing
block up with screws.
5) Lock the bearing cover well and put bolts into key grooves.
6) Set the big belt pulley on the shaft and install the locing ring. And then tighten
the locking ring after using dial gauge to adjust the big belt pulley.
7) Install the motor and position-adjusting plate on motor fixing plate (don’t
tighten them up)
8) Use level ruller to adjust the level of large and small pulley and then lock it
tightly.
Picture 3-8：Installation of Bearing, Motor, Belt Plley and Belt
3.5 Installation of Screen, Screen Bracket and Storage box.
