33(107)

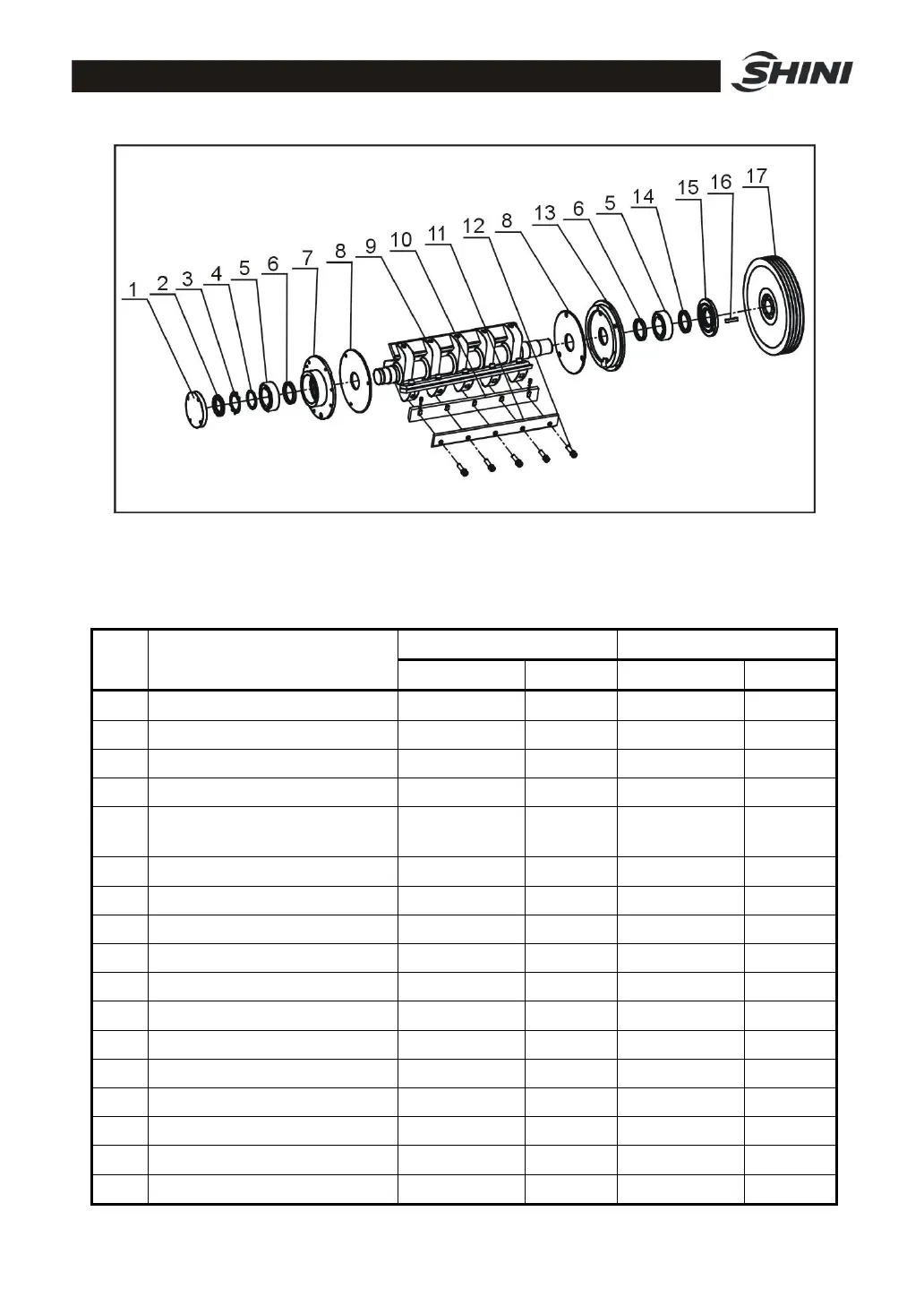

Picture 2-10Cutting Chamber Two (SG-30)
2.3.10 Parts List of Cutting Chamber Two (SG-30)
Chart 2-9Parts List of Cutting Chamber Two (SG-30)
SG-3048 SG-3060
No.
Name
Part No. Quantity
Part No. Quantity
1 Left bearing block cover plate BW30301300010
1 BW30301300010
1
2 Round nut M64×2 YW64642000000
1 YW64642000000
1
3 Lock gasket 64 YW09640000000
1 YW09640000000
1
4 Bearing gasket BL54301110020
1 BL54301110020
1
5
Self-aligning roller bearing
22213
YW11222100300
2 YW11222100300
2
6 Oil seal 90×70×10 YR80971000000
2 YR80971000000
2
7 Left bearing block BW30301200010
1 BW30301200010
1
8 Material fender BH11300820010
2 BH11300820010
2
9 Blade shaft BH11306006110
1 BH11306006110
1
10 Rotary blades BW30301300010
3 BW30301300010
3
11 Rotary blades pressing plate BH11304803810
3 BH10306000910
3
12 Inner hexagon cylindrical screw
YW61145000000
15 YW61145000000
15
13 Right bearing block BW30300202110
1 BW30300202110
1
14 Oil seal 80×65×8 YR80806500000
1 YR80806500000
1
15 Oil seal 80×65×8 YR80806500000
1 YR80806500000
1
16 Flat key 18×11×55 BH10301300310
1 BH10301300310
1
17 Big belt pulley with taper sleeve
YW30400400100
1 YW30400400100
1
