3.1 Installation Notice
1) Make sure voltage and frequency of the power source comply with those
indicated on the nameplate, which is attached to the machine by the
manufacturer.
2) Power cable and earth connections should comply with local regulations.
3) Use independent power cable and power switch. The cable's dia. should not
be smaller than those applied in the control box.
4) The power cable connection terminals should be tightened securely.
5) This series adopts three-phase and four-wirepower: L1, L2, L3 are connected
to the fire wire while the PE line connected to the ground wire.
6) Power supply requirements:
Main power voltage: ±10%
Main power frequency: ±2%
Make at least 1 meter clearance around the machine to facilitate repair and
maintenace.

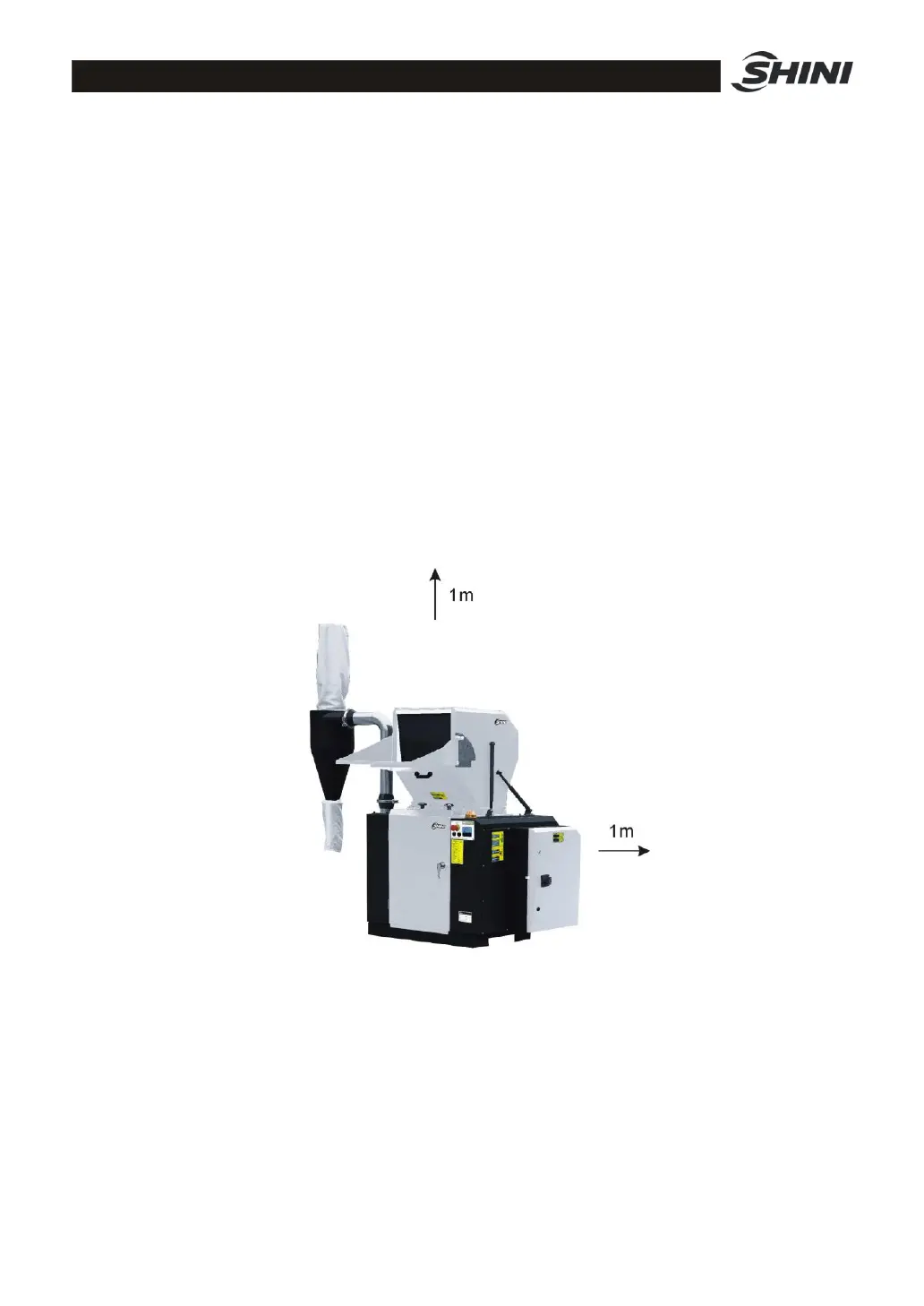

Picture 3-1：Installation Space
