2.3.17 Automatic feeding assembly

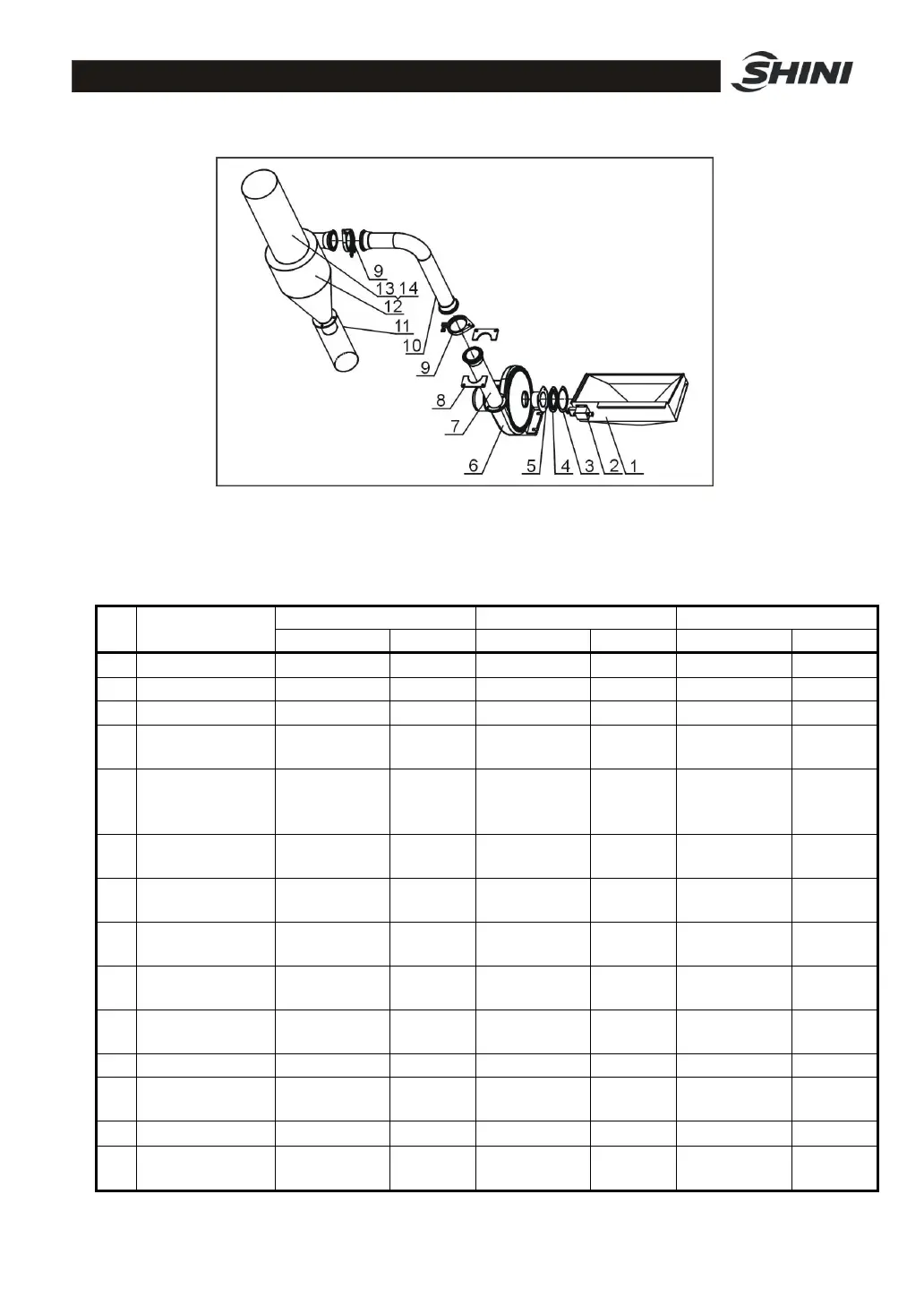

Picture 2-14：Automatic feeding assembly
2.3.18 Parts List of Automatic feeding assembly
Chart 2-15：Parts List of Automatic feeding assembly
SG-2324 SG-2336 SG-2348
No. Name
Part No. Quantity Part No. Quantity Part No. Quantity
1 Storage box - 1 - 1 - 1
2 Spiral switch - 1 - 1 - 1
3 Pressing plate - 1 - 1 - 1
4
Material inlet
fastener
YR10002300000 1 YR10002300000 1 YR10002300000 1
5
Blower suction
port connecting
pipe
- 1 - 1 - 1
6
Feeding blower
(0.55kW)
BM30055000250 1 BM30055000250 1 BM30055000250 1
7
Material outlet
pipe
- 1 - 1 - 1
8
Material outlet
pipe fixing flange
- 2 - 2 - 2
9
Stainless steel
pipe clamp 4"
YW07000400000 2 YW07000400000 2 YW07000400000 2
10
Material outlet
pipe bending
- 1 - 1 - 1
11 Filter cloth bag 2 BP82181800044 1 BP82181800044 1 BP82181800044 1
12
Cyclone
separator
BY50002300150 1 BY50002300150 1 BY50002300150 1
13 Filter cloth bag 1 BP82321900144 1 BP82321900144 1 BP82321900144 1
14
Dust collecting
cloth bag stand
BL59230001521 1 BL59230001521 1 BL59230001521 1
