Shini SG-23 Series User Manual

40(107)
2.3.19 Shield Parts

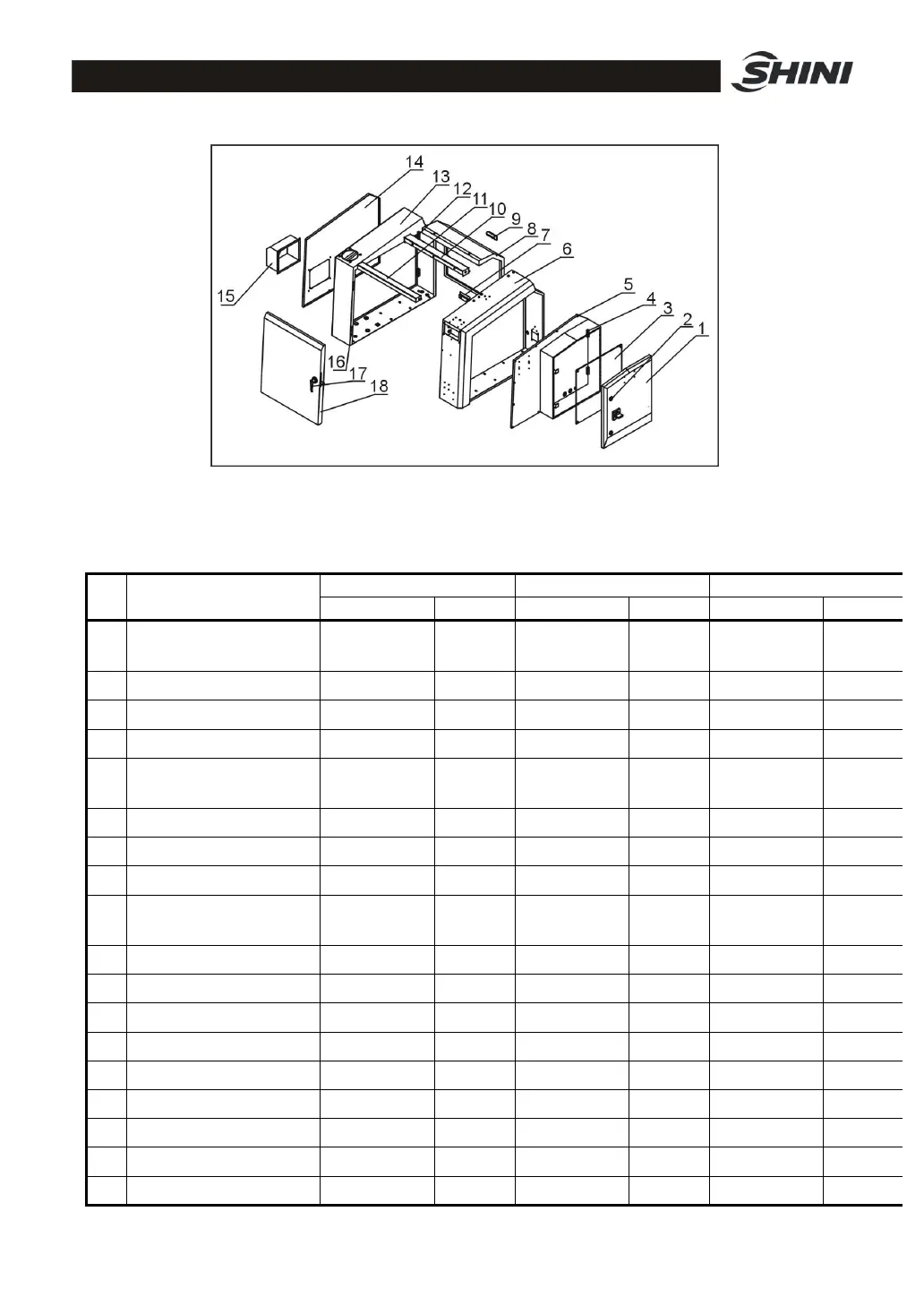

Picture 2-15：Shield Parts
2.3.20 Parts List of Shield Parts
Chart 2-17：Parts List of Shield Parts
SG-2324 SG-2336 SG-2348
No. Name
Part No. Quantity Part No. Quantity Part No. Quantity
1
Electric components box
door plate
- 1 - 1 - 1
2 Long gear lock YW00000000100 2 YW00000000100 2 YW00000000100 2
3 Wiring board - 1 - 1 - 1
4 Big hinge CL203-1 (right) YW06203100200 2 YW06203100200 2 YW06203100200 2
5
Electric components box
base plate
- 1 - 1 - 1
6 Right outshell - 1 - 1 - 1
7 Motor cover plate - 1 - 1 - 1
8 Motor cover - 1 - 1 - 1
9
Plastic ladder type handle
91*40
YR40914040000 1 YR40914040000 1 YR40914040000 1
10 Rear top cover - 1 - 1 - 1
11 Front top cover - 1 - 1 - 1
12 Big hinge CL203-1 (left) YW06203100400 2 YW06203100400 2 YW06203100400 2
13 Left outshell - 1 - 1 - 1
14 Left outshell cover - 1 - 1 - 1
15 Blower motor cover shell - 1 - 1 - 1
16 Hinge CL253-2 YW06253200000 2 YW06253200000 2 YW06253200000 2
17 Door lock M-45-B YW00004500000 1 YW00004500000 1 YW00004500000 1
18 Front door - 1 - 1 - 1
