1) Put the screen into screen bracket.
2) Hold up the screen bracket and hang its back pothook to the two side fixing
plates of the end plate.
3) Hold up the screen bracket to a proper position which match with the bearing
block. Then, tighten up the star screws.
4) Insert the storage box into the grooves at the two sides of end plate.
5) Install the safety switch.

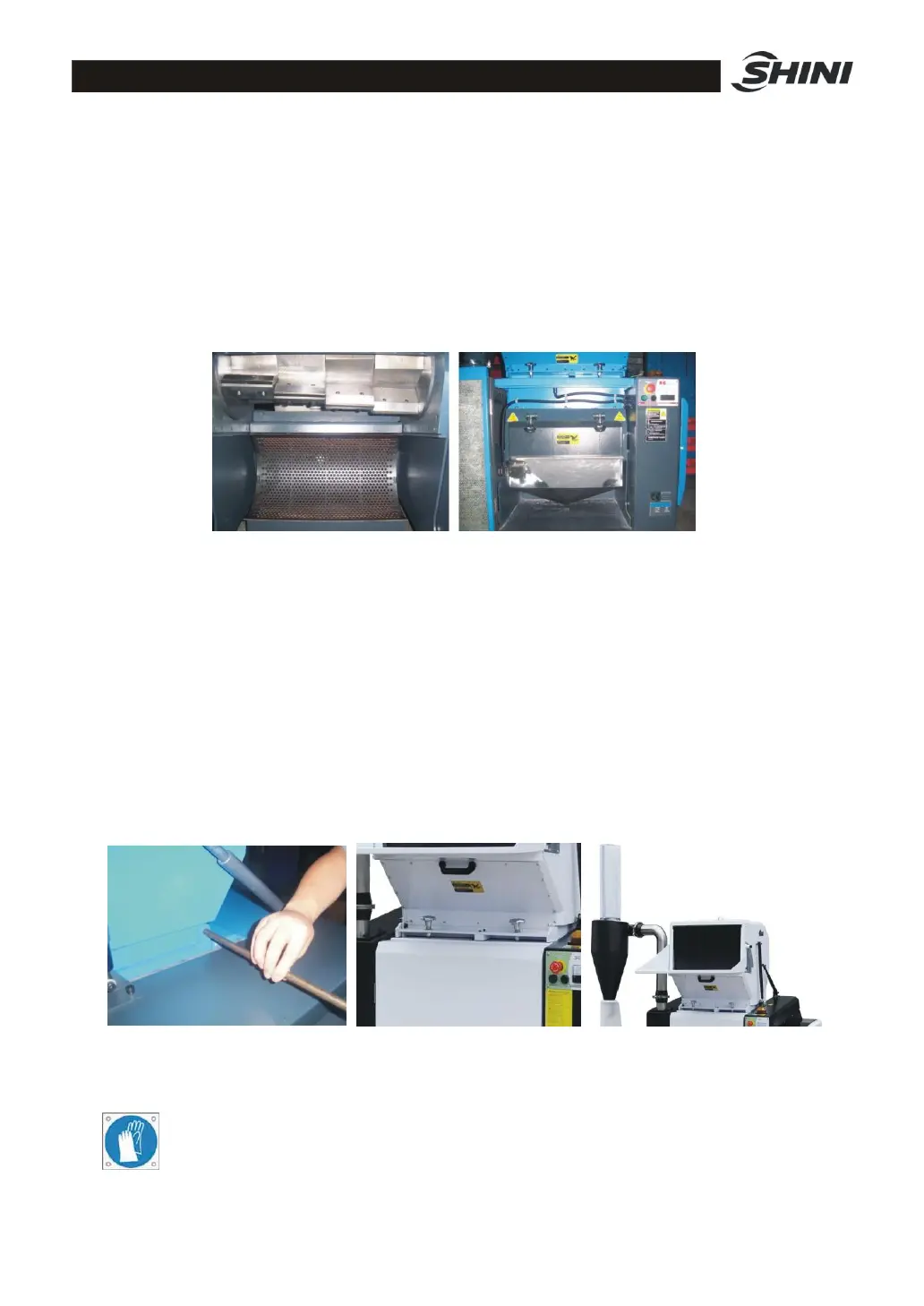

Picture 3-9：Installation of Screen, Screen Bracket and Storage box
3.6 Installation of Feed Box and Feed Port
1) Lift up the feed box to level with the cutting chamber and then fix it with an
iron bar.
2) Mount the pneumatic connecting bar at the right side of feed box.
3) Lock the feed box and the cutting chamber with star knobs.
4) Respectively install one fixing plate at the two sides of feed box and use
rivets to fix them. Then install the feed port.
Picture 3-10：Installation of Rotary Blade and Fixed Plate (3)
3.7 Installation of Blades
The blades are very sharp; please wear gloves before installing and be
careful during operating to avoid cut!
