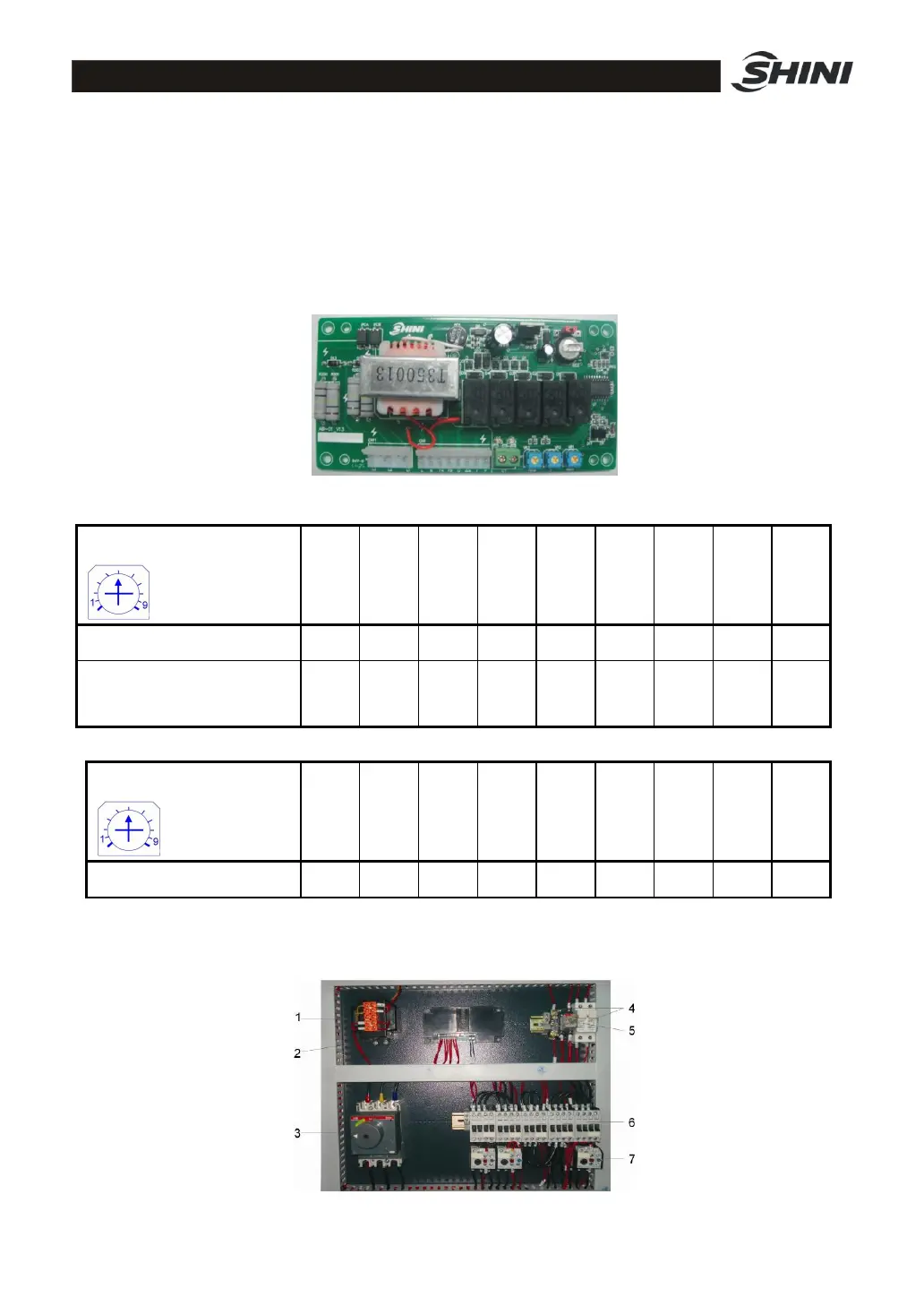

80(107)
2.5 Electrical Components Instruction
2.5.1 Microprocessor Board (PCB)
Function1) Star-delta starting.
2) Granulating motor overload detection and alarm.
3) Material conveying blower postpones machine stop.
4) phase sequence dection, warning and machine halt.
Picture 2-36PCB Circuit board
Scale of Variable Resistor
1 2 3 4 5 6 7 8 9
Fine Adjustment I(A):VR1 -4 -3 -2 -1 0 +1 +2 +3 +4
Rate Current settingI):
VR3
5A 10A
20A
30A
40A
50A
60A
70A
80A
Scale of Variable Resistor
1 2 3 4 5 6 7 8 9
Y/Start Switching 3S 6S 9S 12S
15S
19S
22S
24S
30S
2.5.2 Electrical Components in Electrical Components box
Picture 2-37Main Electrical Components
