20

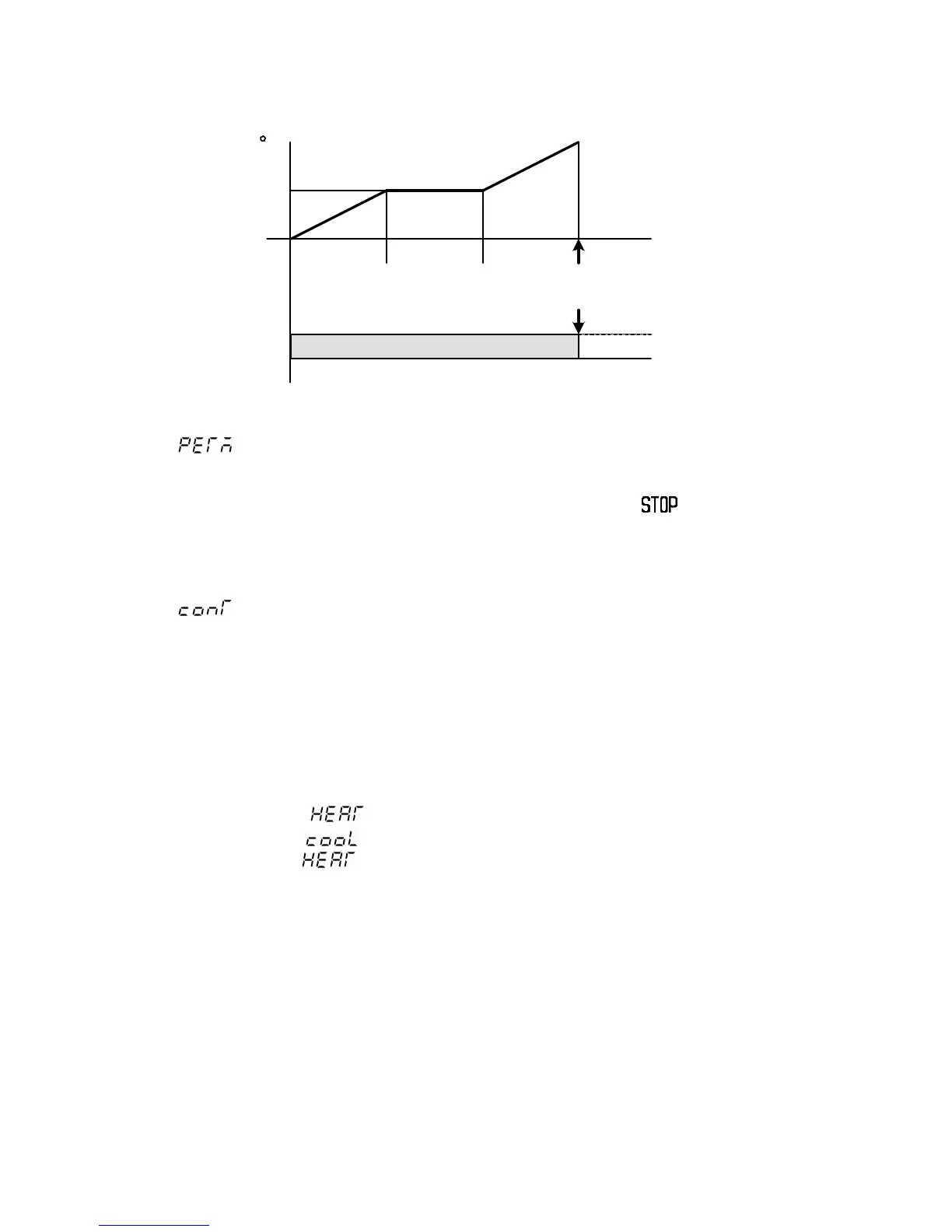

[Run output] (Fig. 5.3-3)
This is outputted during the program control.
(Fig. 5.3-3)
(21) Pattern end output time setting
Sets pattern end output time after pattern end output has been selected during
Event output function selection.
If 0 seconds are selected, the output keeps running until the key is pressed.
Available only when pattern end output is selected during Event output function
selection
• Setting range: 0 to 9999 seconds
• Default value: 0 seconds
(22) Direct/Reverse action selection
Selects the Direct (Cooling) or Reverse (Heating) action.
Direct action
When PV (process variable) is higher than SV (Setting value), the control output is
turned ON. This is a direct action.
This is used for cooling control for devices such as refrigerators.
Reverse action
When PV (process variable) is lower than SV (Setting value), the control output is
turned ON. This is a reverse action.
This is used for heating control for devices such as electric furnaces.
• Selecting item: Reverse (Heating) action
Direct (cooling) action
• Default value: Reverse (Heating) action
Temperature
Step 1
Step 2 Step 3
C
Time
Program control end
Run output OFF
Run output OFF
Run output ON
To Next Page
