Shinko PCD-33A - External Dimension and Panel Cutout; Mounting

9

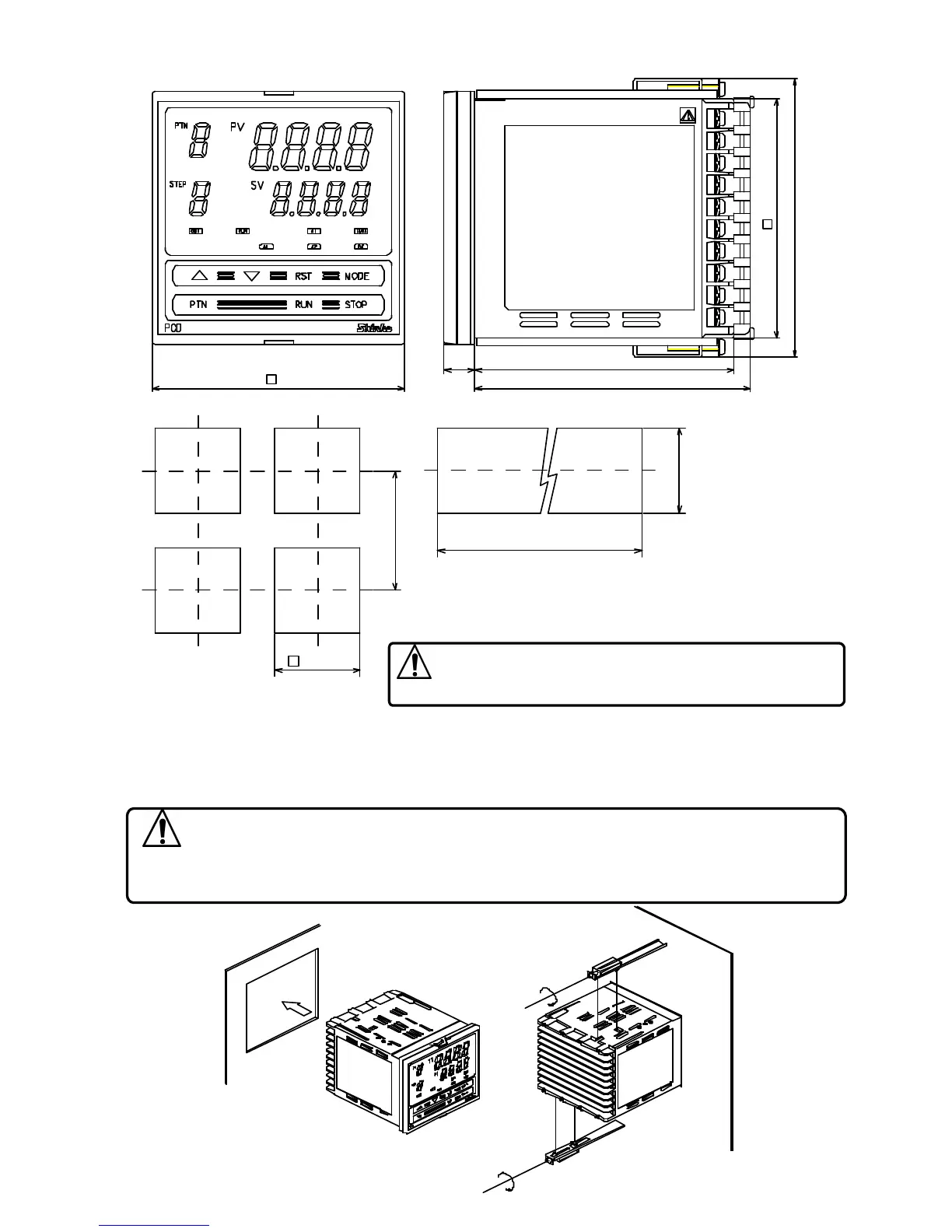

3.2 External dimension and Panel cutout
(Fig. 3.2-1)
Lateral close mounting
n: Number of units mounted
If lateral close mounting is used for the
(Fig. 3.2-2) controller, IP66 specification will not be fulfilled.
3.3 Mounting
Mounting panel thickness is 1 to 15mm.
Insert the PCD-33A from the front of the control panel.
Slot the mounting bracket to the holes at the top and bottom of the case,
and screw in place.
Notice
As the case is made of resin, do not use excessive force while screwing in the
mounting bracket. The torque is approximately 0.12N•m.
(Fig. 3.3-1)
130
nX96-3
+ 0.5
0
92
+ 0.5
0
92
+ 0.8
0
96
91
106.2
11.5 98.5
104.5 (for option TC)
