35
PV start: When the program control starts, SV and step time are advanced to the PV,
then the program control is performed.
However, if the value set during the [Step SV setting when control starts]
and the step SV are equal, or if the value set during the [Step SV setting
when control starts] is higher than PV, PV start is cancelled, and
SV start is adopted.
When Wait function is set, the function has priority.
SV start: When the program control starts, the program control starts from the
value which has been set during the [Step SV setting when control
starts].
[Indication during program control run]
PTN display : Selected program pattern number
PV display : Current actual temperature
STEP display : Step number of the program
control which is running
SV display : Current step temperature
RUN indicator : Lit during program control run
Other indicators: Lit or unlit according to the
controller status

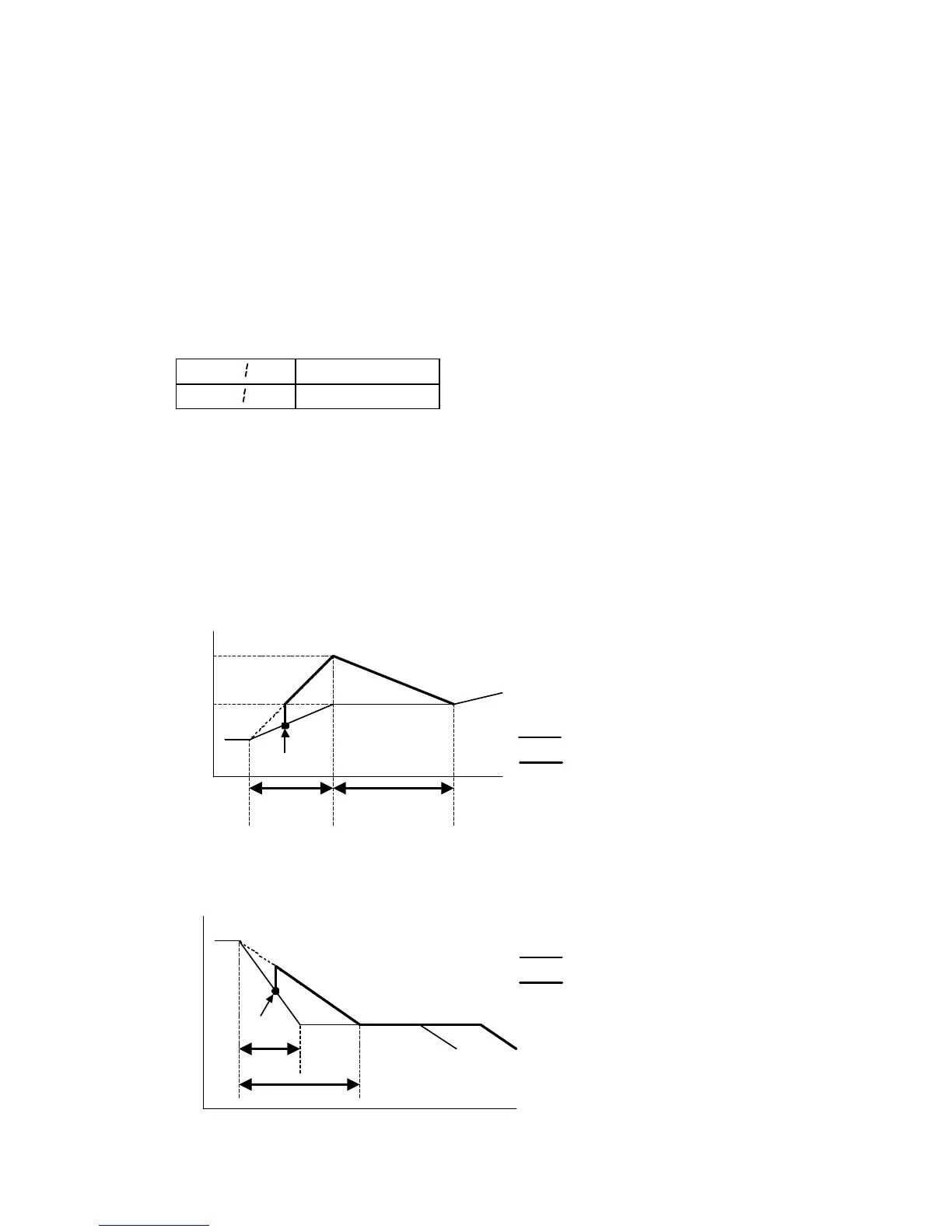

[Step SV or Step time change during running]
(1) When the temperature changed from SV1 to SV2
: Program pattern before change
: Program pattern after change
[Fig. 7.2-1]
(2) When the time is changed from T1 to T2
: Program pattern before change
: Program pattern after change
[Fig. 7.2-2]
PTN
PV
Actual temp.
STEP
SV
Step SV
