59

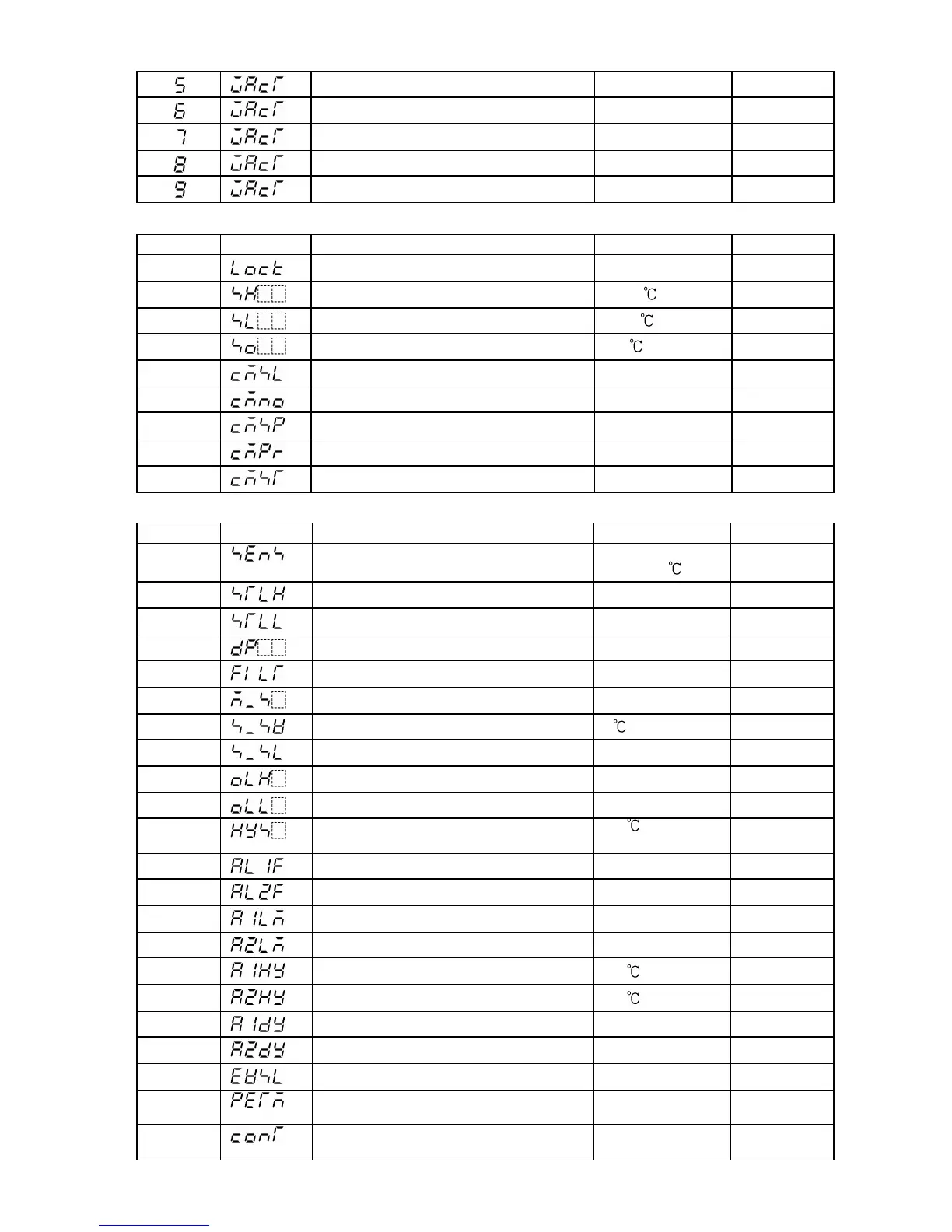

Step 5 Wait function Used/Not used Not used
Step 6 Wait function Used/Not used Not used
Step 7 Wait function Used/Not used Not used
Step 8 Wait function Used/Not used Not used
Step 9 Wait function Used/Not used Not used
<Auxiliary function setting mode 1>
Step No. PV display
Setting item Default value Data
Setting value lock Unlock
SV (Setting value) high limit 1370
SV (Setting value) low limit -200
Sensor correction setting 0.0
Communication protocol Shinko protocol
Instrument number 0
Communication speed 9600bps
Parity Even
Stop bit 1
<Auxiliary function setting mode 2>
Step No. PV display
Setting item Default value Data
Input type selection K: -200 to
1370
Scaling high limit value 9999
Scaling low limit value -1999
Decimal point place
No decimal point
PV filter time constant 0.0 seconds
Step time unit selection Hour/Minute
Step SV setting when control starts
0
Program control start form
PV start
Control output high limit
100%
Control output low limit
0%
Control output ON/OFF action
hysteresis
1.0
Alarm 1 (A1) action
No alarm
Alarm 2 (A2) action
No alarm
Alarm 1 (A1) Energized/Deenergized
Energized
Alarm 2 (A2) Energized/Deenergized
Energized
Alarm 1 (A1) hysteresis
1.0
Alarm 2 (A2) hysteresis
1.0
Alarm 1 (A1) action delayed timer
0 sec.
Alarm 2 (A2) action delayed timer
0 sec.
Event output function Time signal output
Pattern end output time 0s (continuous
output)
Direct (Cooling)/
Reverse (Heating) action
Reverse
(Heating) action
