Chapter 10 Operating Instructions

CLV490 Bar Code Scanner

Appendix

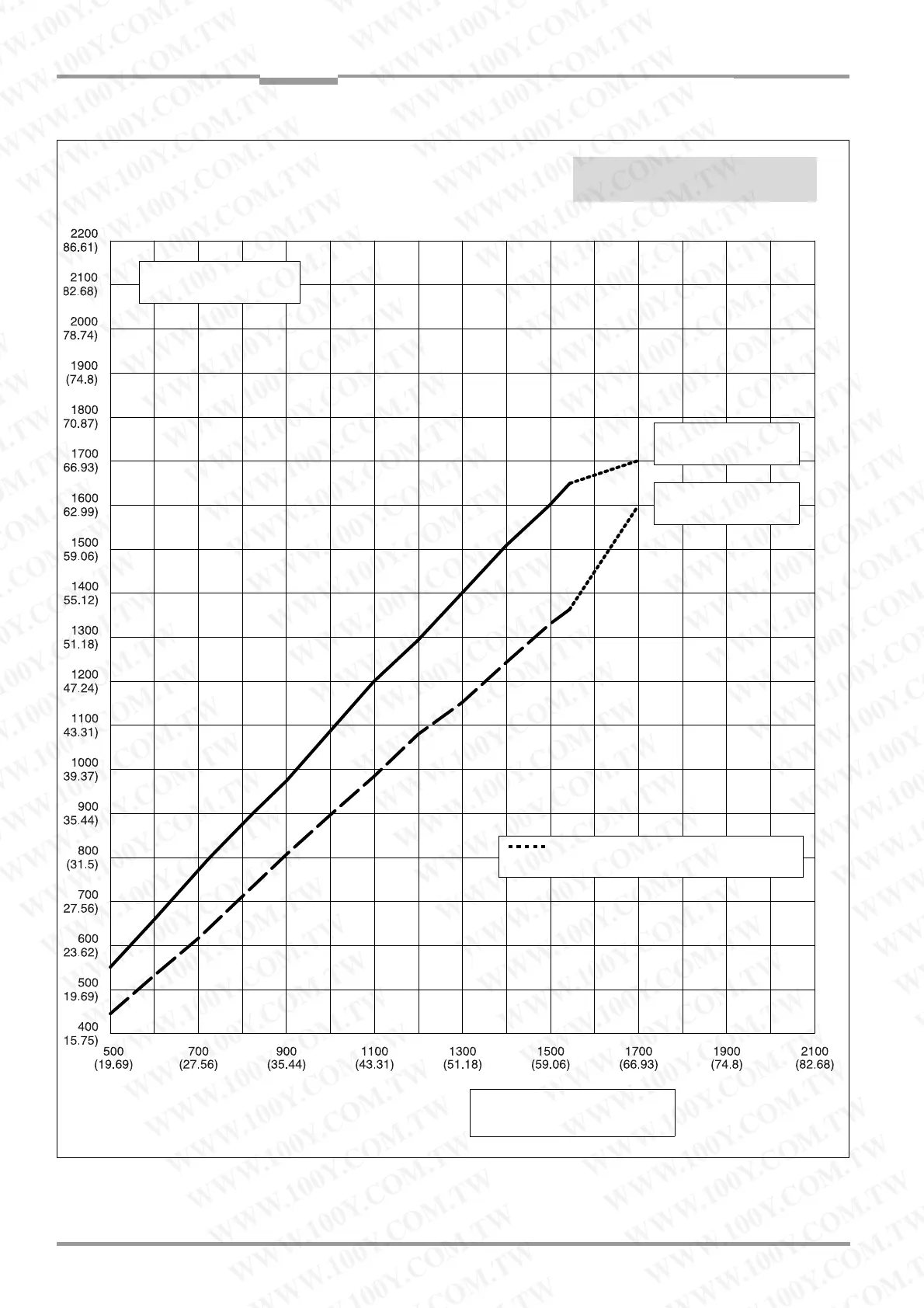

Fig. 10-2: CLV490-0010/-0011 (Standard density): Min. and Max. reading distance (measured radially) as a function of the focus

position at a resolution of 0.35 mm (13.8 mil) and an aperture angle of α =40°

Line scanner (front reading window): CLV490-0010/-0011

Reading conditions:

see Table 10-1, Page 10-1

Characteristics field scanning frequency/

reading distance: see Fig. 10-6, Page 10-8

Radial reading distance

min. reading distance

max. reading distance

Resolution: 0.35 mm (13.8 mil)

Aperture angle: 40°

Focus position

Reading ranges from approx. 1,540 mm

(60.7 in) focus position are typical values!

Dimensions in mm (in)
