Operating Instructions Chapter 10

CLV490 Bar Code Scanner

Appendix

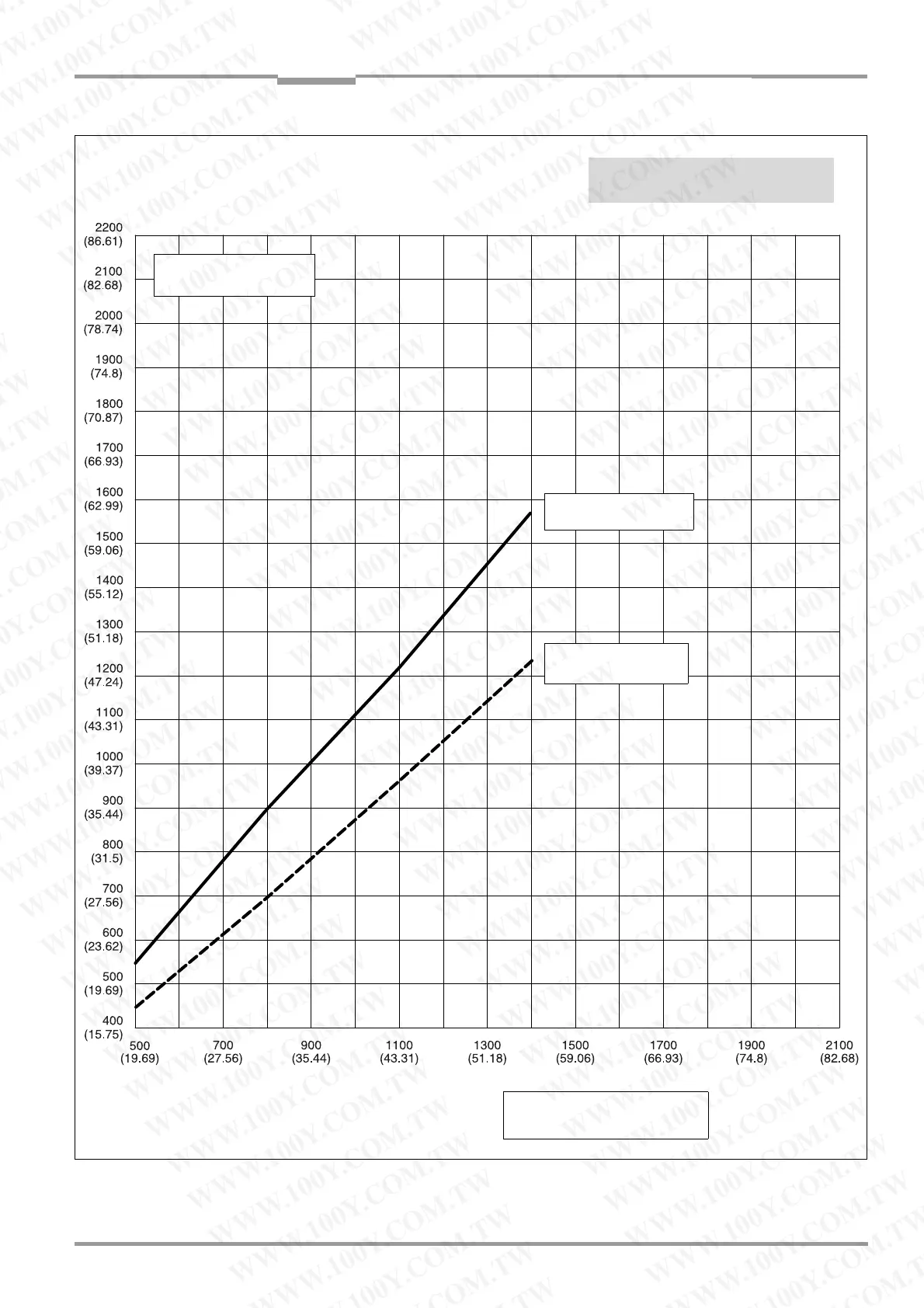

Fig. 10-5: CLV490-0010/-0011 (Standard density): Min. and Max. reading distance (measured radially) as a function of the focus

position at a resolution of 0.50 mm (19.7 mil) and an aperture angle of α =56°

Line scanner (front reading window): CLV490-0010/-0011

Radial reading distance

min. reading distance

max. reading distance

Resolution: 0.50 mm (19.7 mil)

Aperture angle: 56°

Focus position

Reading conditions:

see Table 10-1, Page 10-1

Characteristics field scanning frequency/

reading distance: see Fig. 10-6, Page 10-8

Dimensions in mm (in)
