Chapter 10 Operating Instructions

CLV490 Bar Code Scanner

Appendix

Note Other cable lengths/types for CLV490 with heater available on request.

10.13.7 Plug-in connections

10.13.8 Reading pulse generators

The SICK catalog "SENSICK Industrial Sensors" (no. 8006530, English edition) contains a

large selection of photoelectric switches and photoelectric proximity switches as well as the

associated accessories (brackets, connection cables).

10.13.9 Incremental encoder

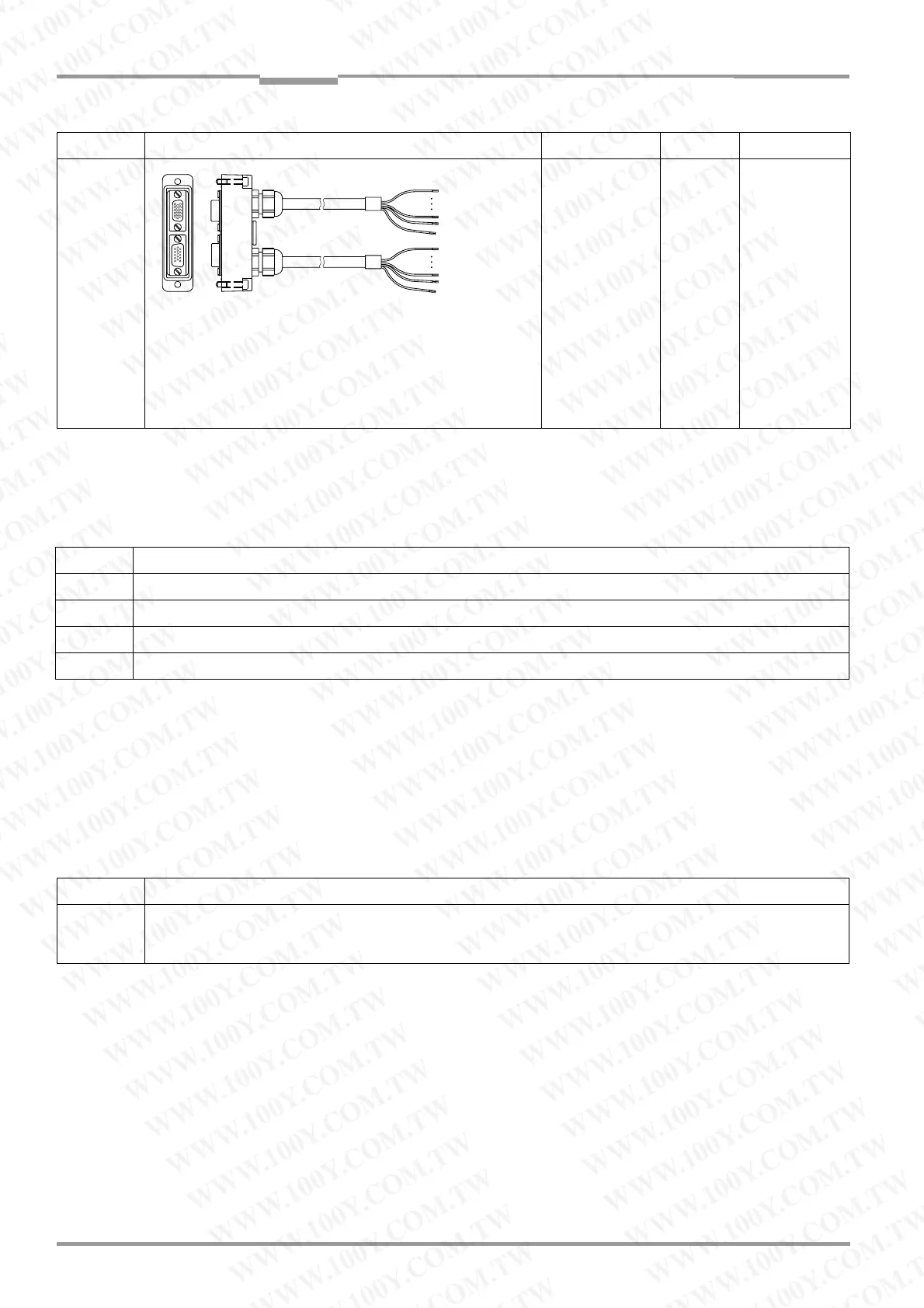

2021267

Connector cover, two connection cables, each with dia. 6.7 mm

(0.26 in), shielded, with open ends (crimpted wires).

All pins connected, however pin 10 to pin 15 of "Host/Term"

connection (CAN interfaces 1 and 2) not connected, pin 13 and

pin 14 of "I/O“ connection not connected.

Enclosure rating max. IP 65.

Required: 1 per CLV490

je 18 x 0.14 mm

(26 AWG)

2 x 1.5 mm

(16 AWG)

3 m

(3.84 ft)

CLV490 to host,

sensors, PLC

and non-SICK

power pack

Order No. Description Wires Length Connection

Table 10-17: Accessories: Cables and connector covers for CLV490 with heater (contd.)

Order No. Description

6009438 D Sub connector housing (metal) for 9-pin or 15-pin HD inserts

6007335 D Sub connector insert, 9-pin socket connector

6010019 D Sub connector insert, 15-pin HD socket connector

6010020 D Sub connector insert, 15-pin HD pin connector

Table 10-18: Accessories: plug-in connections

Order No. Description

2022714 Incremental encoder with friction wheel, resolution 10 mm (0.39 in) per pulse, max. 100 KHz, operating voltage 18 to

28 V DC, operating temperature 0 to +70 °C (+32 to +158 °F).

With mounting bracket and accessories, connection cable 10 m (32.8 ft) with M12 socket and open end

Table 10-19: Accessories: incremental encoder

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

Light Source

LED, visible red light (660 nm)

Protection Class

IP65

Typical Scan Rate

500 scans/s

Ambient Operating Temperature

0 °C ... +50 °C

Power Supply

10 V DC ... 30 V DC
