Chapter 10 Operating Instructions

CLV490 Bar Code Scanner

Appendix

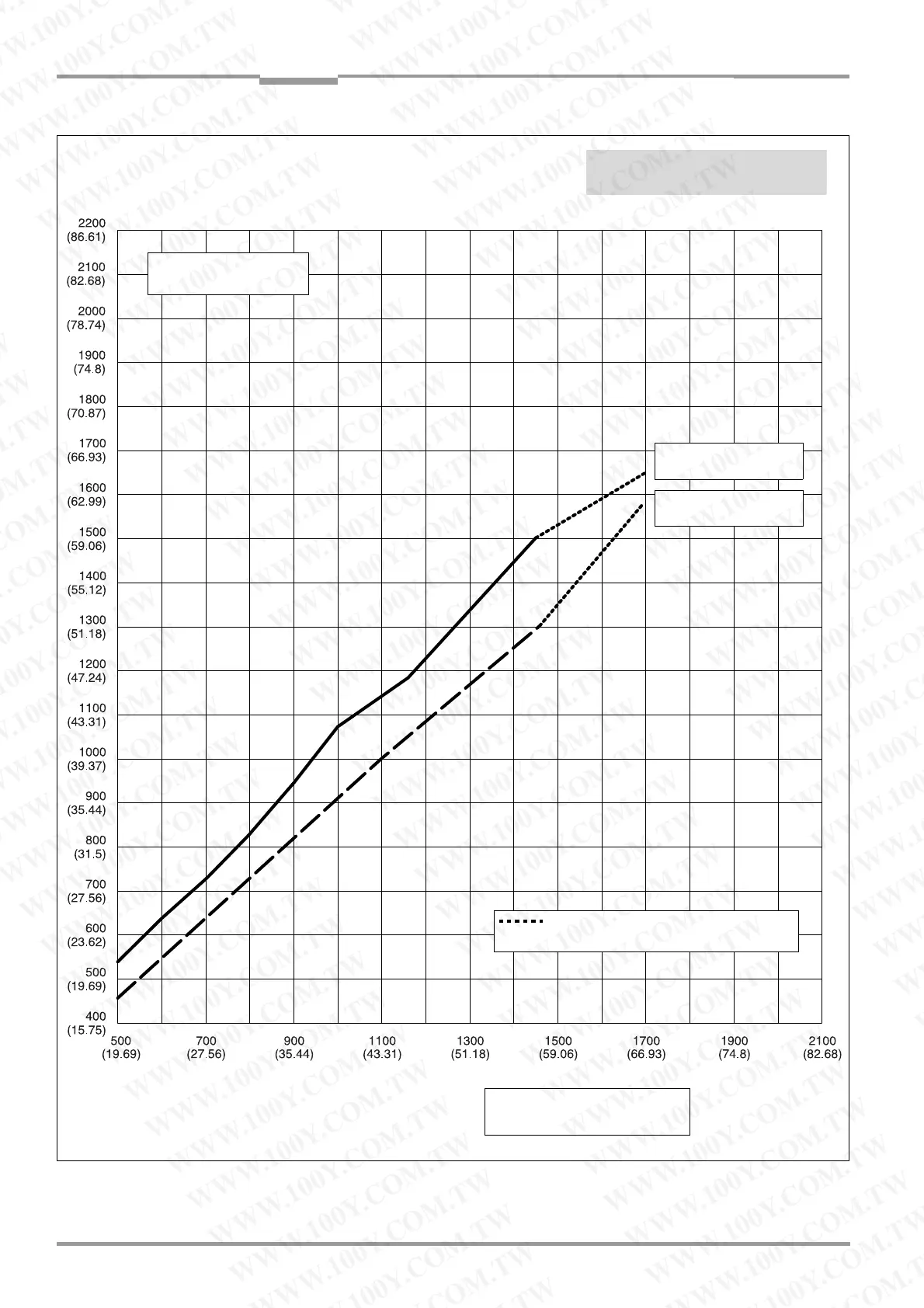

Fig. 10-8: CLV490-1010/-1011 (Standard density): Min. and Max. reading distance (measured radially) as a function of the focus

position at a resolution of 0.35 mm (13.8 mil) and an aperture angle of α =40°

Line scanner with oscillating mirror (side reading window): CLV490-1010/-1011

Radial reading distance

Resolution: 0.35 mm (13.8 mil)

Aperture angle: 40°

max. reading distance

Focus position

min. reading distance

Reading ranges from approx. 1,440 mm

(56.7 in) focus position are typical values!

Reading conditions:

see Table 10-1, Page 10-1

Characteristics field scanning frequency/

reading distance: see Fig. 10-12, Page 10-14

Dimensions in mm (in)
