Chapter 9 Operating Instructions
DME5000
108 © SICK AG • Germany • Subject to change without notice 8009813/ZJV1/2017-05

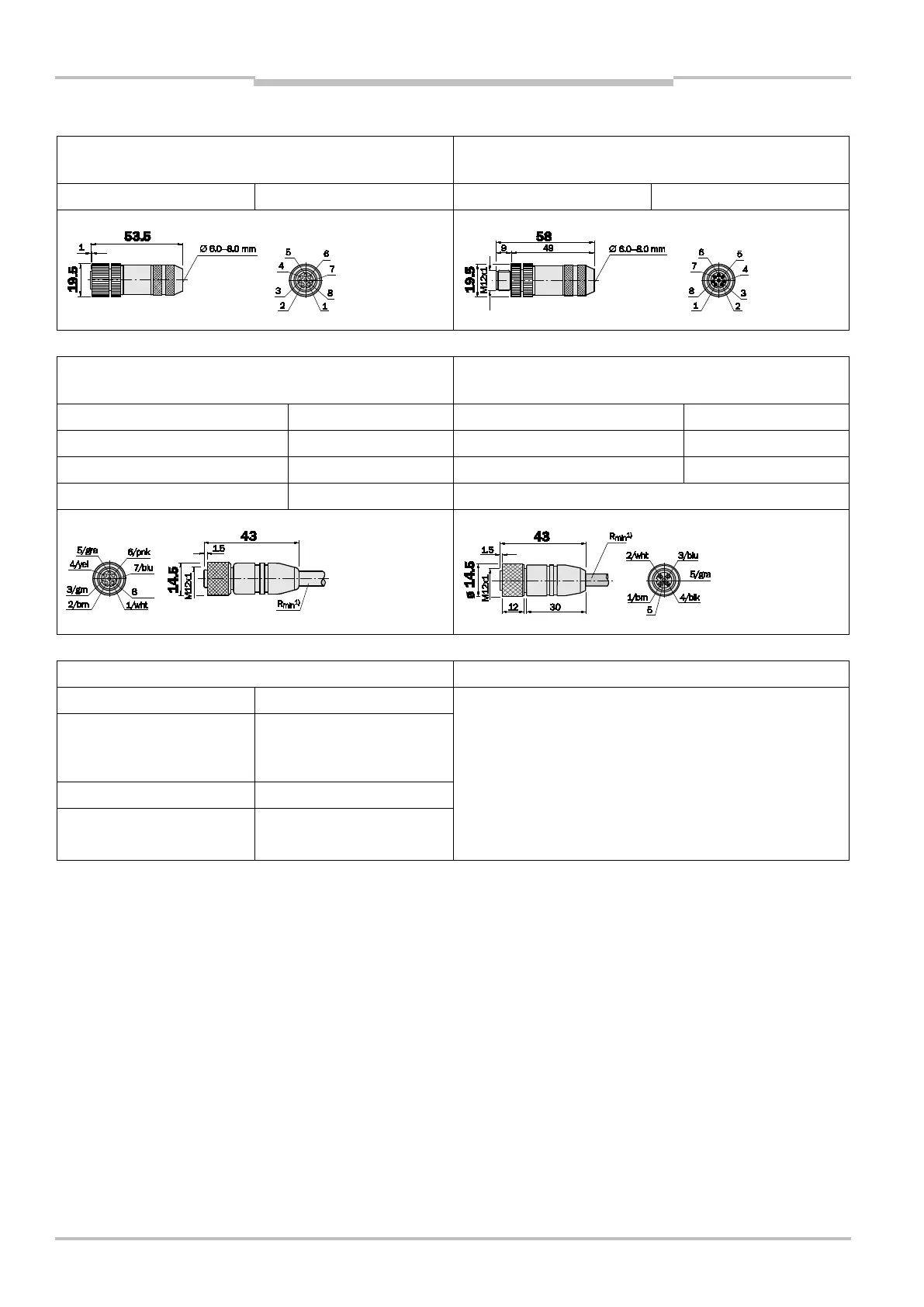

Hiperface
Cable socket M12, 8-pin, straight, customizable, A-coded,
shielded
Cable plug M12, 8-pin, straight, customizable,
A-coded, shielded
Type: DOS-1208-GA Part no.: 6028369 Type: STE-1208-GA Part no.: 6028370
Cable socket , M12, 8-pin, straight, molded-on cable with
shield via knurled nut, A-coded
Cable socket M12, 5-pin, PUR, straight, shield on knurled nut,
A-coded
2 m – DOL-1208-G02MAH1 Part no.: 6032448 5 m – DOL-1205-G05MAC Part no.: 6036384
5 m – DOL-1208-G05MAH1 Part no.: 6032449 10 m – DOL-1205-G10MAC Part no.: 6036385
10 m – DOL-1208-G10MAH1 Part no.: 6032450 20 m – DOL-1205-G20MAC Part no.: 6036386
20 m – DOL-1208-G20MAH1 Part no.: 6032451
Cable Pin assignment
Type: LTG-3108-MW Part no.: 6032456 1 wht REFsin
2 brn +sin
3 grn REFcos
4 yel +cos
5 gra Data+
6 pnk Data–
7 blu GND
8 red –
Temperature range moved -10 ... +70 °C
firmly installed -40 ... +70
℃
Sleeve PUR black Ø 6.8 mm
Shield Cu tinned
