Operating Instructions Chapter 9
DME5000
8009813/ZJV1/2017-05 © SICK AG • Germany • Subject to change without notice 107

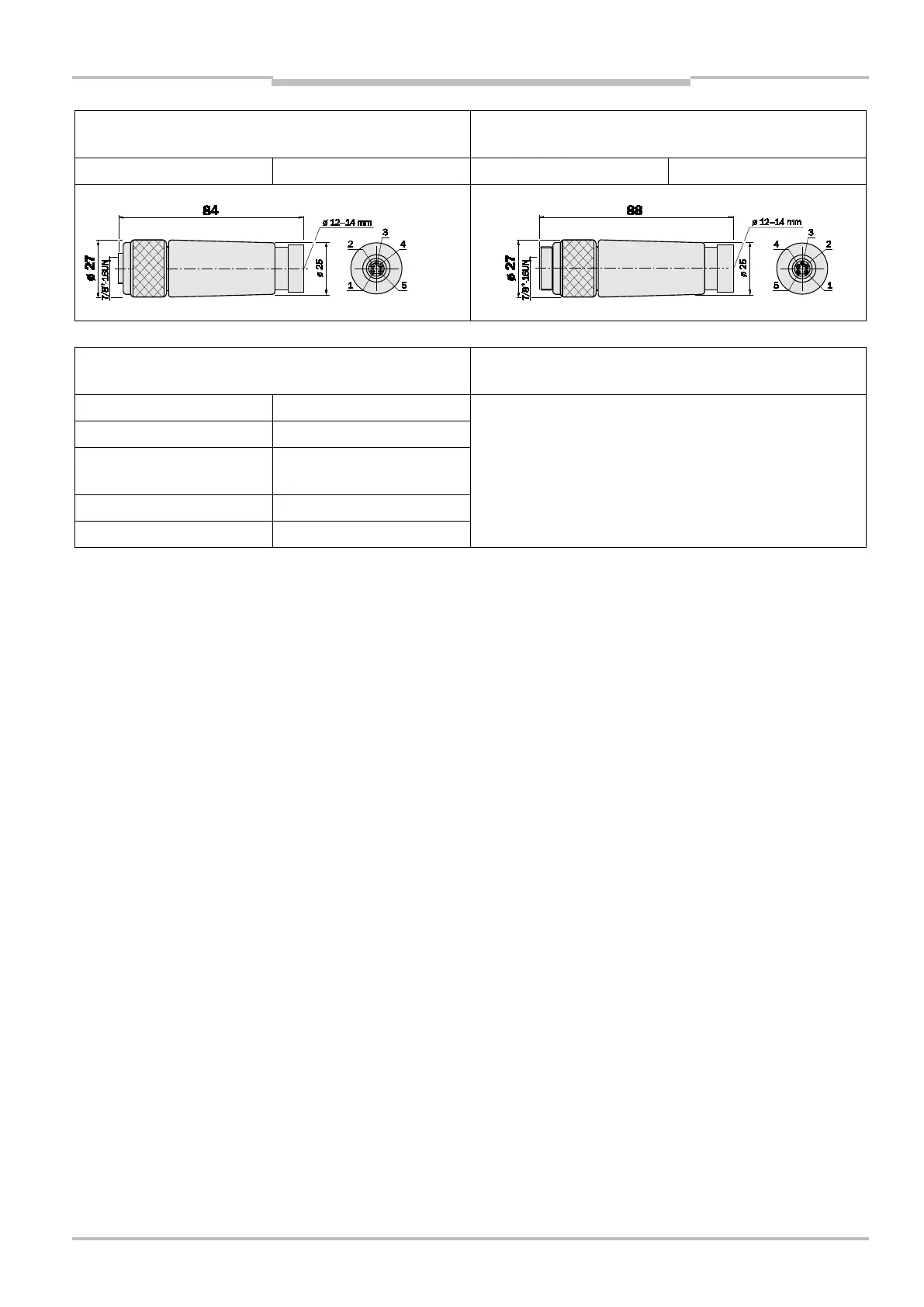

DeviceNet cable socket, 7/8'', 5 pin, straight, PG16,
customizable
DeviceNet cable plug, 7/8'', 5 pin, straight, PG16,
customizable
Type: DOS-7805-GK Part no.: 6028331 Type: STE-7805-GK Part no.: 6028332
cable, 2 x 0.34 mm
2
(V+, V‒) or 2 x 0.25 mm
2
(CAN
H
, CAN
L
),
twisted-pair wires and shielded with AL-PT-foil
Pin assignment
Type: LTG-2804-MW Part no.: 6028328 1 Shield
2 red V+
3 blk V–
4 wht CAN
H
5 blu CAN
L
Temperature range moved –10 ... +70 ℃
firmly installed
–40 ... +70 ℃
Sleeve PUR black Ø 6.7 mm
Shield Cu tinned
