CAN Connection
GM32 · Technical information · 8011923 · V1.4 · © SICK AG 23
Subject to change without notice
3.2 SCU connection (overview)
As an option, the GM32 (and further analyzers) can be operated using an SCU (System
Control Unit).
The SCU is an operating unit for comfortable, powerful analyzer control.
The following actions can be performed on the analyzers via the SCU:
● Control, parameter setting and display.
● Process and save measured values.
● Remote diagnosis.
The SCU is connected with the analyzers via a system bus.
The SCU is operated via a touchscreen or a PC.

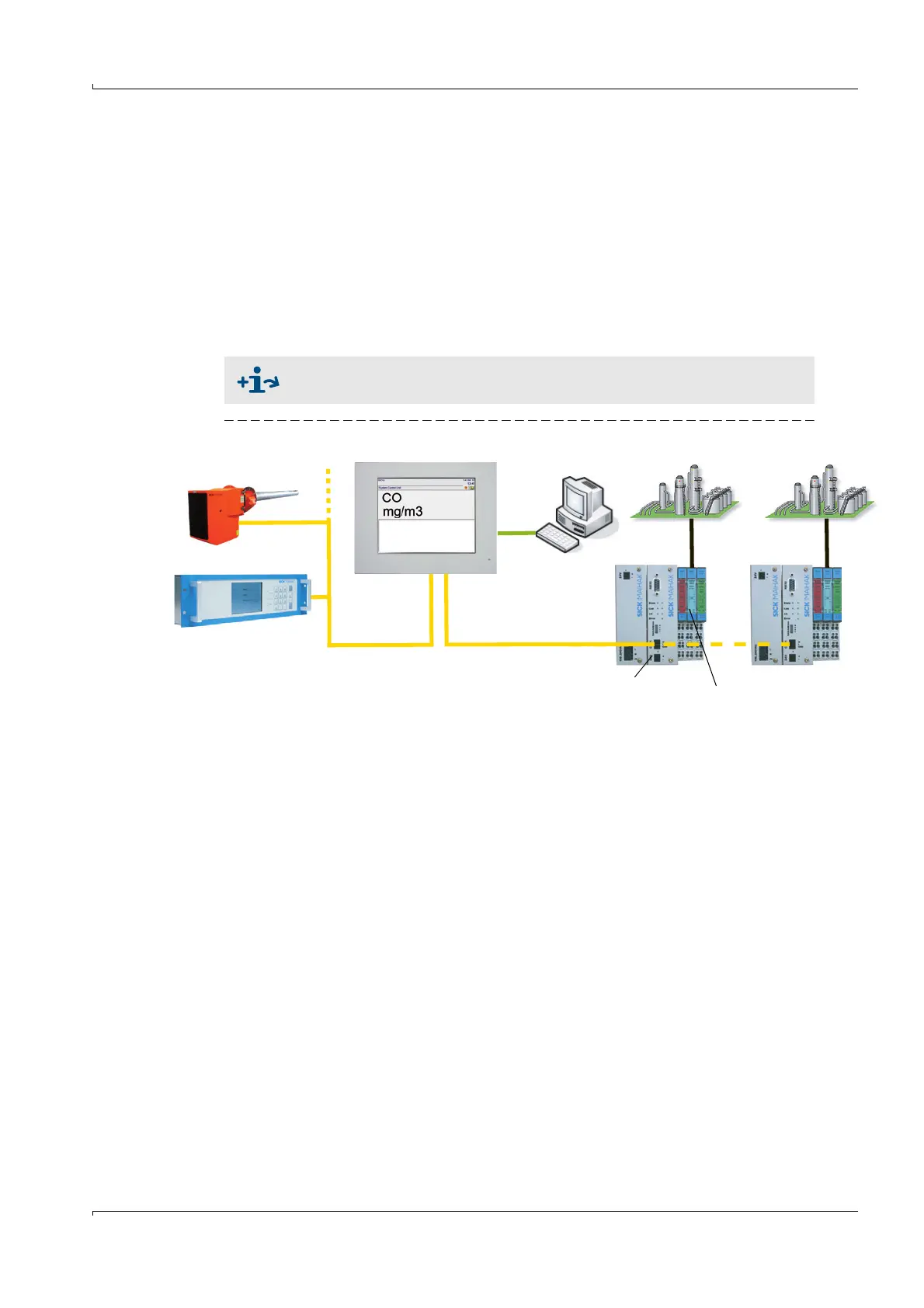

Fig. 7 SCU concept
Further information on the SCU  “SCU” Operating Instructions
12,3
System bus 1 System bus 2
Ethernet
CAN bus gateway
module
Modular
system I/O
Analyzers
SCU
PC with SOPAS ET
