4.2.5.6 Spectra
Significance of individual spectra fields:

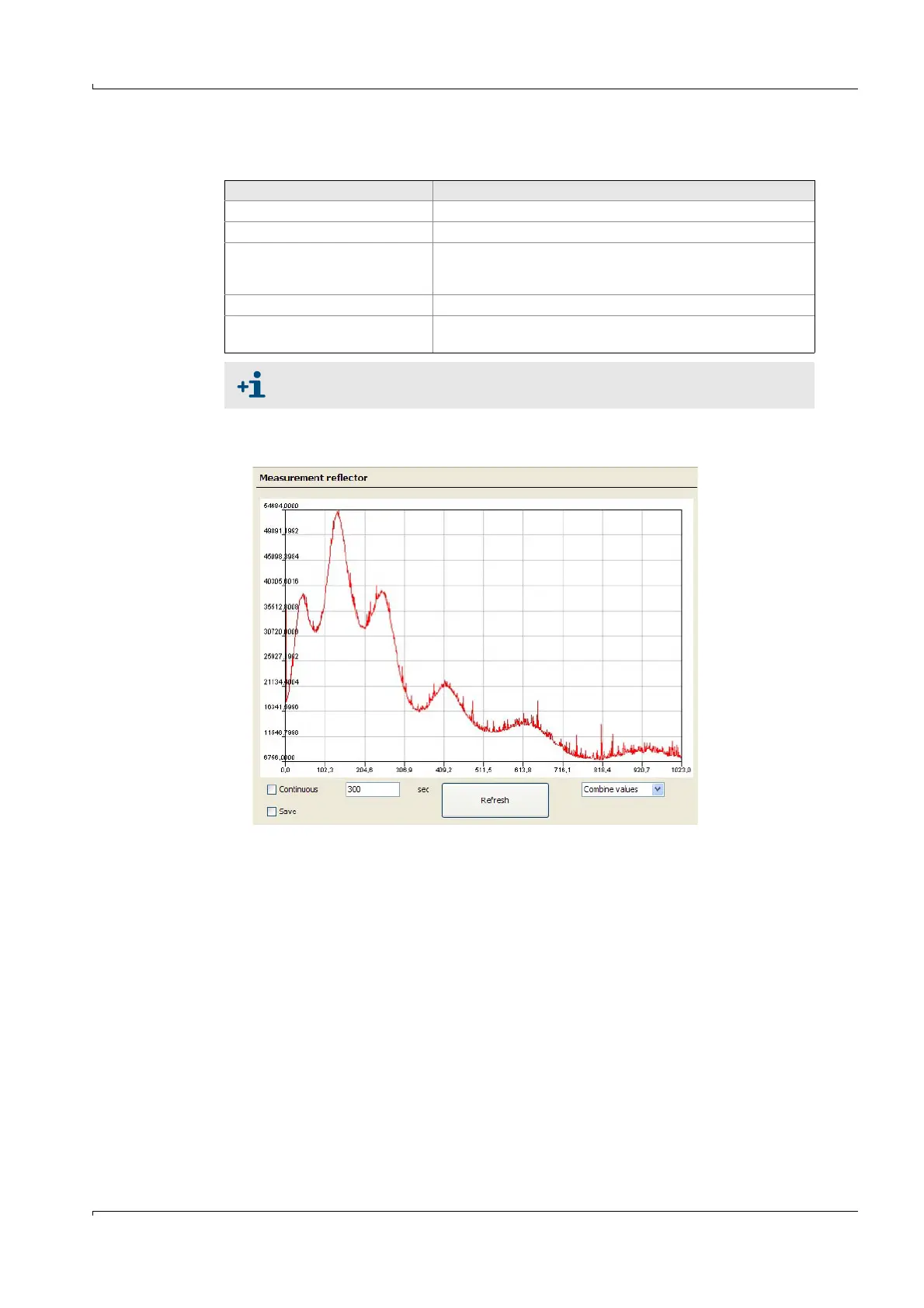

Measurement reflector
Menu: GM32/Diagnosis/Sensor values/Spectra/Measurement reflector
● Measurement reflector raw signal
● Maximum measurement reflector signal on the zero path: 45000 .. 50000 digits.
Change with user level Service in menu Parameter
 Spectrometer  Maximum lamp
intensity.
Field Significance
Continuous The displayed spectrum is continuously refreshed.
Time Time interval of continuous display.
Record Activates data recording
 Enter name and location of file for data recording
 Save
Refresh Refresh spectrum.
Combine values
Show individual measured points
Combine measured value points (line display)
Show individual measured value points.
Click two points in the spectrum to zoom sections of the spectrum.
