Operation (Specialist Menus)
Subject to change without notice

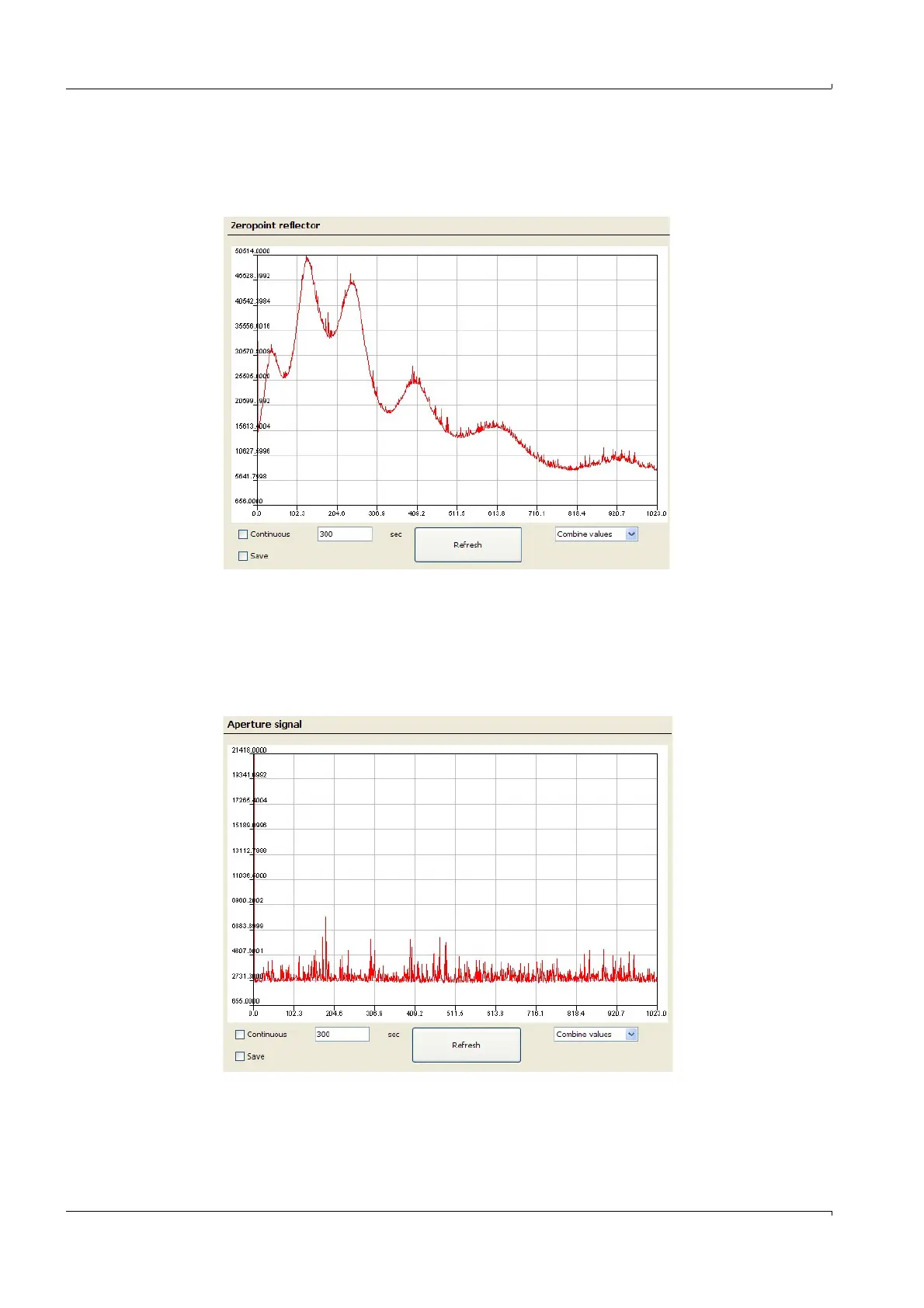

Zero point reflector
Menu: GM32/Diagnosis/Sensor values/Spectra/Zeropoint reflector
Raw signal measured on the zero point reflector. The nominal value corresponds to the
maximum lamp intensity (
 p. 35, §4.2.3.2).
● Zero point reflector signal
● Change with user level Service in menu Parameter  Spectrometer  Maximum lamp
intensity.
Aperture signal (dark signal)
Menu: GM32/Diagnosis/Sensor values/Spectra/Aperture signal
Measurement on blanking diaphragm. Only updated during the check cycle.
