Operation (Specialist Menus)
Subject to change without notice

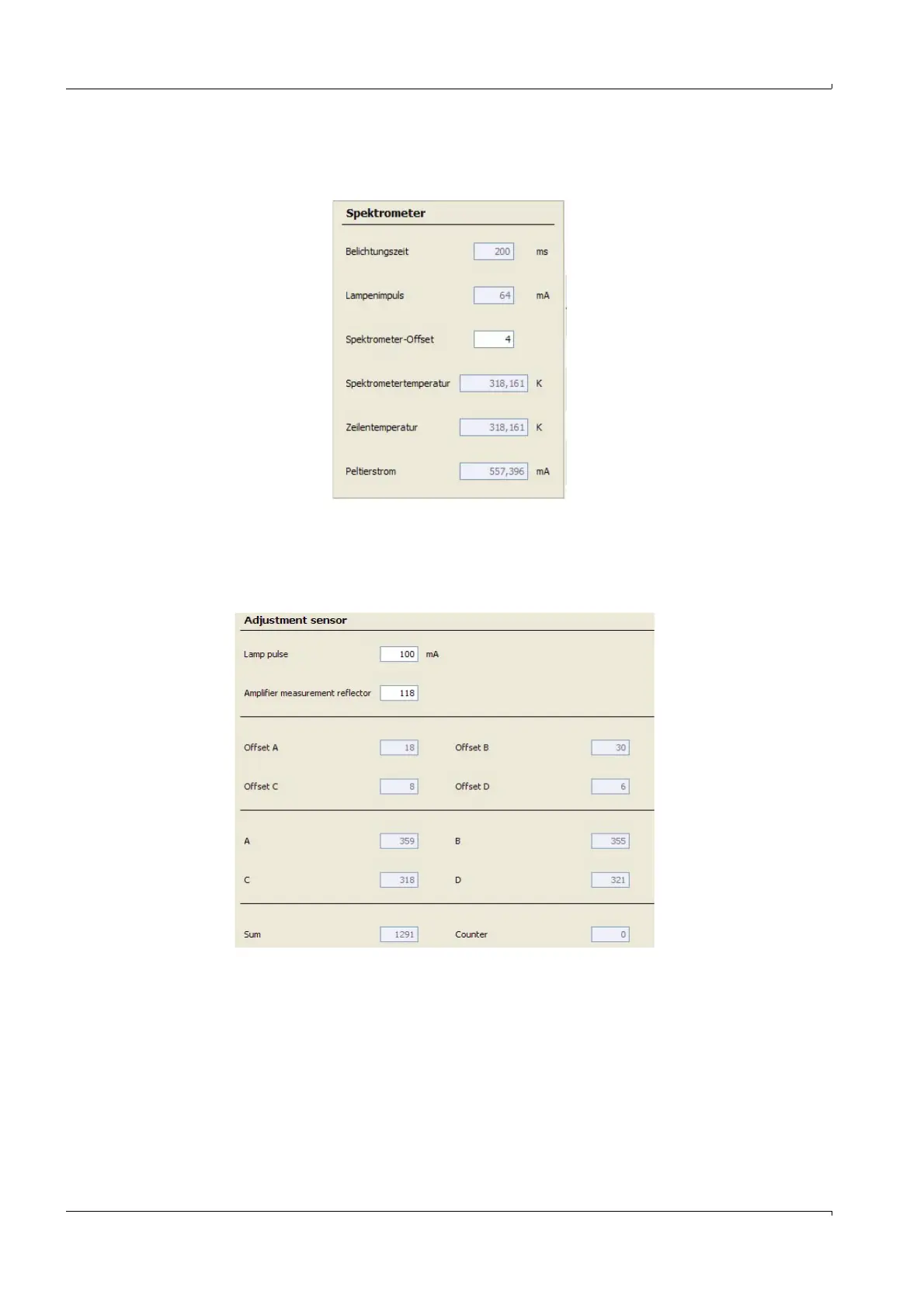

Spectrometer
Menu: GM32/Diagnosis/Sensor values/Spectrometer
Spectrometer values from last reference cycle.
Adjustment sensor
Menu: GM32/Diagnosis/Sensor values/Adjustment sensor
Limit values for lamp pulse and amplification settings are entered in the Parameter/Adjust-
ment sensor menu (
p. 36, §4.2.3.5).
● Lamp pulse: Lamp pulse current during the 4 quadrant measurement. Changes
depending on the total from the 4 quadrants.
Criterion: Amplifier measurement reflector at 255.
● Amplifier measurement reflector: Amplification of the 4 quadrant measurement.
Changes depending on the total of the 4 quadrants (max. 255).
● Offset: Offsets are determined during the check cycle or after amplifier switching.
● A .. D, Sum: Current signals.
● Counter: Delay time before correction made.
To Next Page
