70 GM32 · Technical information · 8011923 · V 1.4 · © SICK AG
Maintenance
Subject to change without notice
5 Fit the drain hose screw fitting to the gas outlets

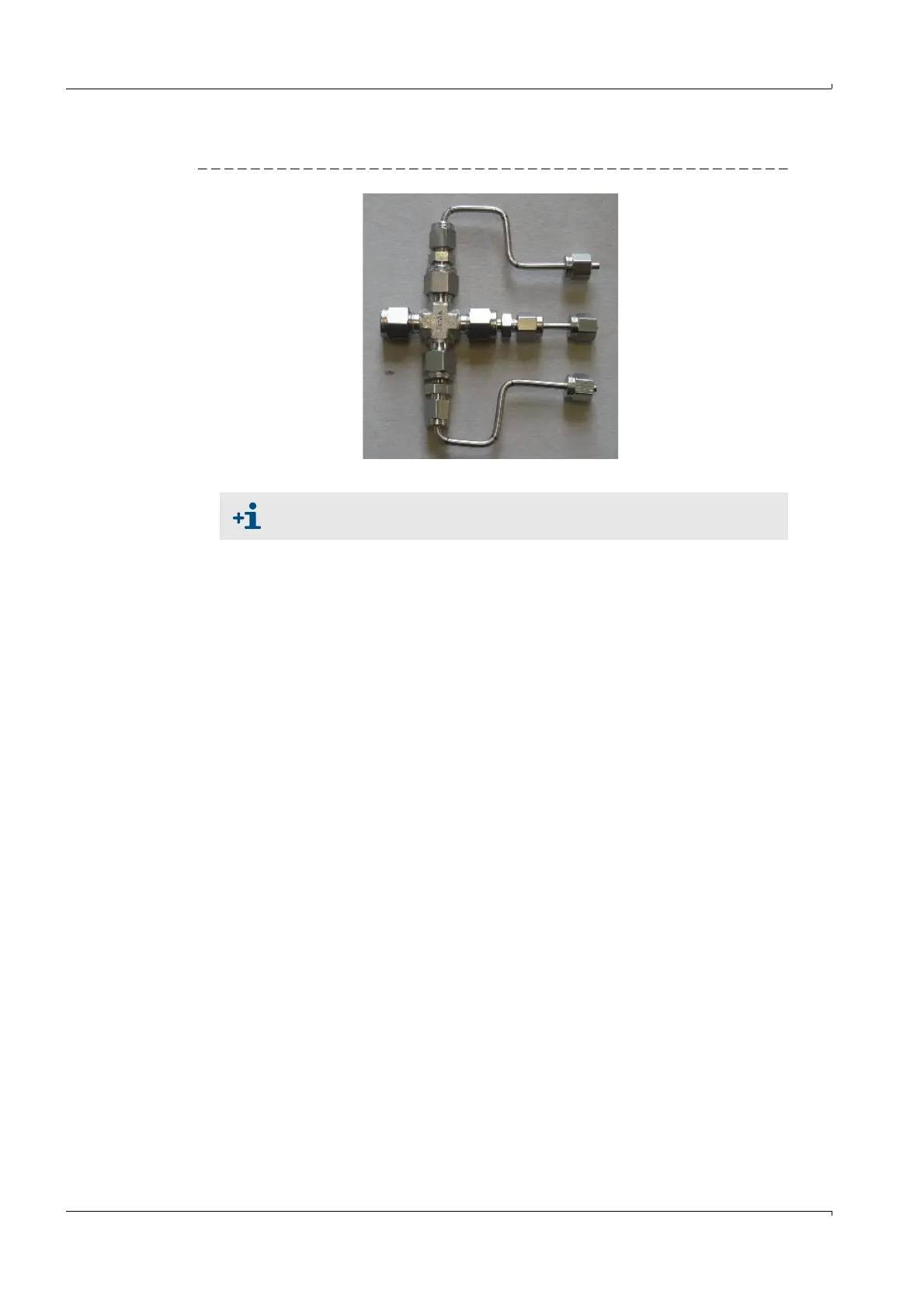

Fig. 13 Drain hose screw fitting
6 Connect the drain hose to the screw fitting
7 Select the suitable Suprasil reflector matching the measuring path (flange-flange) from
the filter box accessories.
– Measuring path <5m (R=-1982)
– Measuring path >5m (R=-5000).
8 Fit the reflector on the filter box.
9 Fit the suitable GM32 adapter plate to the filter box
Lay the drain hose away from the measuring location (e.g. outdoors)
Do not bend the hose
