a min. 262
a min. 262
a min. 262
!
!
!
"
"
"
§ §
§

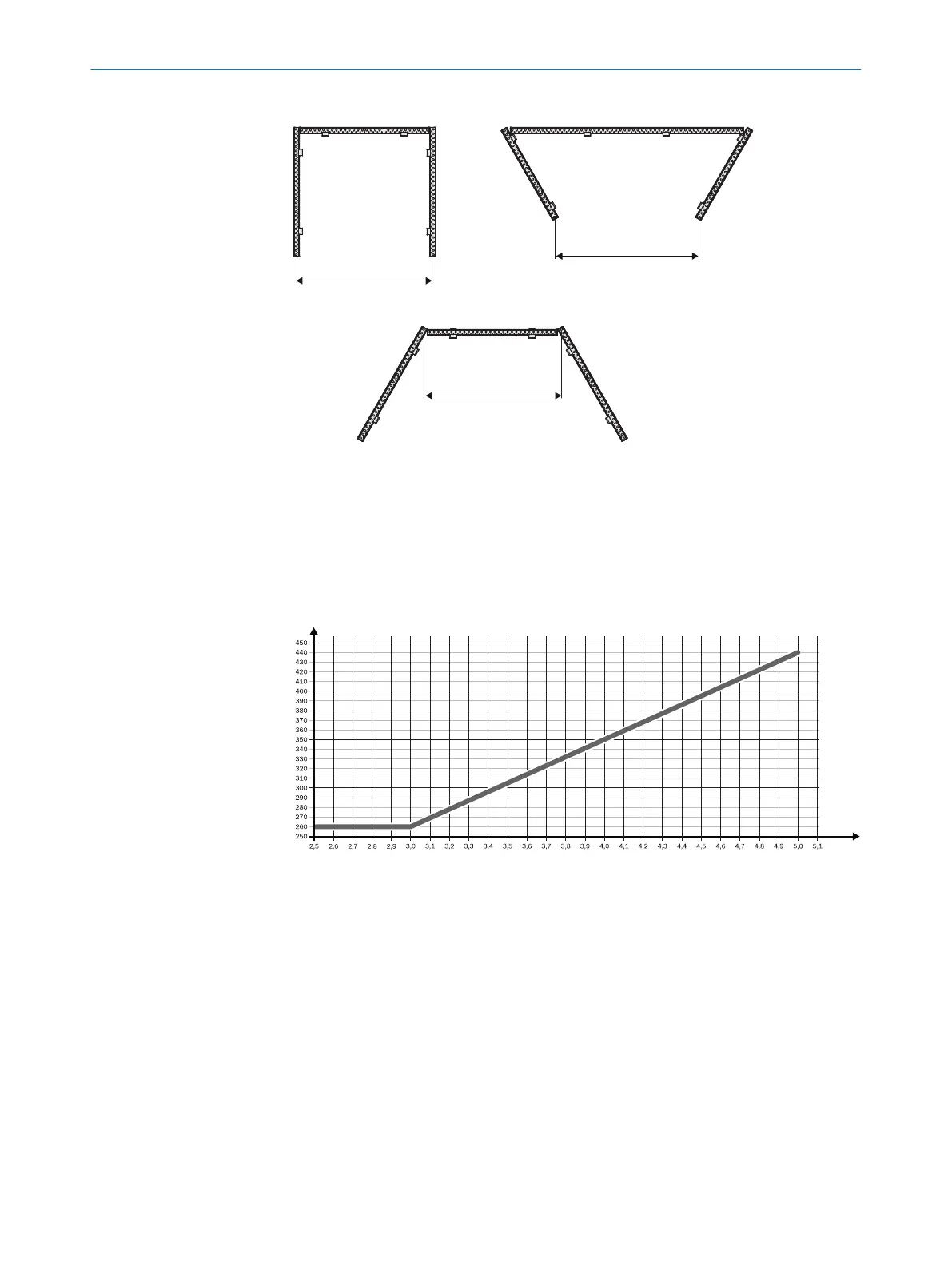

Figure 16: Minimum distance between host and guest 2 (mm)
!
Guest 1
"
Guest 2
§
Host
b
F
or protective field widths over 3 m, minimum distance a [mm] can be read in the
diagram:
Figure 17: Diagram minimum distance between host and guest 2
Or:
b
F
rom a 3 m protective field width, calculate the minimum distance with the follow‐
ing formula
a [mm] = tan 5° × D [m] × 1000
Example:
a = tan 5° × 4 m × 1000
a = 349.28 mm ~ 350 mm
PROJECT PLANNING 4
8012624/10OM/2018-08-09 | SICK O P E R A T I N G I N S T R U C T I O N S | miniTwin4
27
Subject to change without notice
