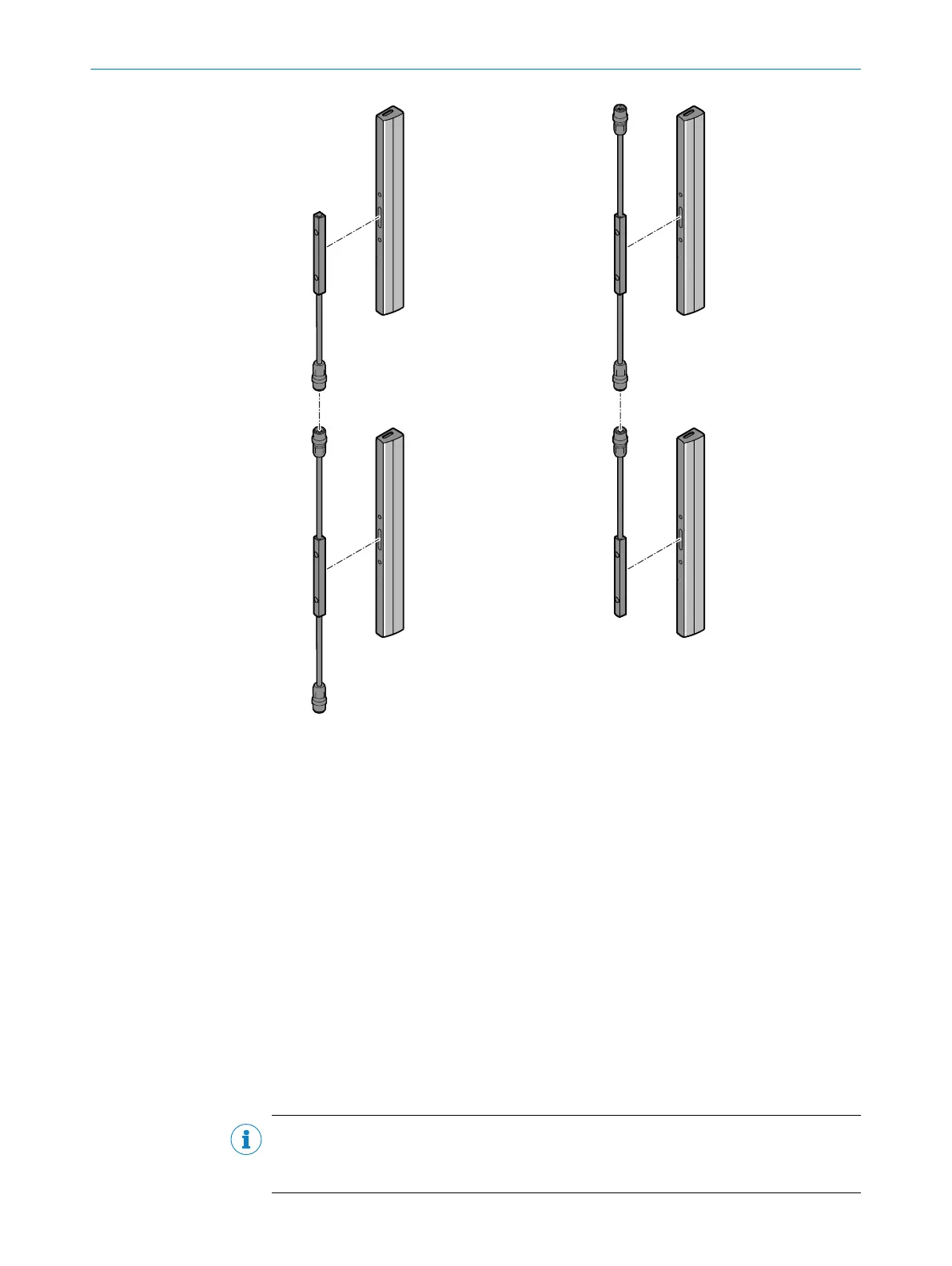

Figure 35: Mount the system plug, rotated by 180°, on the device connection
!
System plug for single systems
"
System plug for cascaded systems
§
System plug for cascaded systems, rotated by 180°
$
System plug for single systems, rotated by 180°
The individual safety light curtains can be used as single systems after disconnecting
t
hem from the cascaded systems if they are connected via a system plug for single sys‐
tems.
If a device which may already have been configured is used to extend a cascade or
replace a (defective) device in a cascade, see table 9, page 66.
Further topics
•
"D
eactivating reset and EDM", page 66
5.4 Mounting
Important information
NOTE
b
R
ead this section completely before installing the safety light curtain.
b
Read the information on aligning the twin sticks.
MOUNTING 5
8012624/10OM/2018-08-09 | SICK O P E R A T I N G I N S T R U C T I O N S | miniTwin4
47
Subject to change without notice
