Approach
1.
Mount t
he C-Fix brackets (!) so that the twin stick is positioned at the correct
height.
For applications in which vibrations could occur as well as for protective field
hei
ghts of ≥ 360 mm, we recommend assembling the brackets at a distance from
a fourth of the twin stick length from the end of the twin stick.
2. Tighten the M5 screws with a torque of about 3 Nm. Higher torques can damage
the brackets; lower torques provide inadequate protection against displacement.

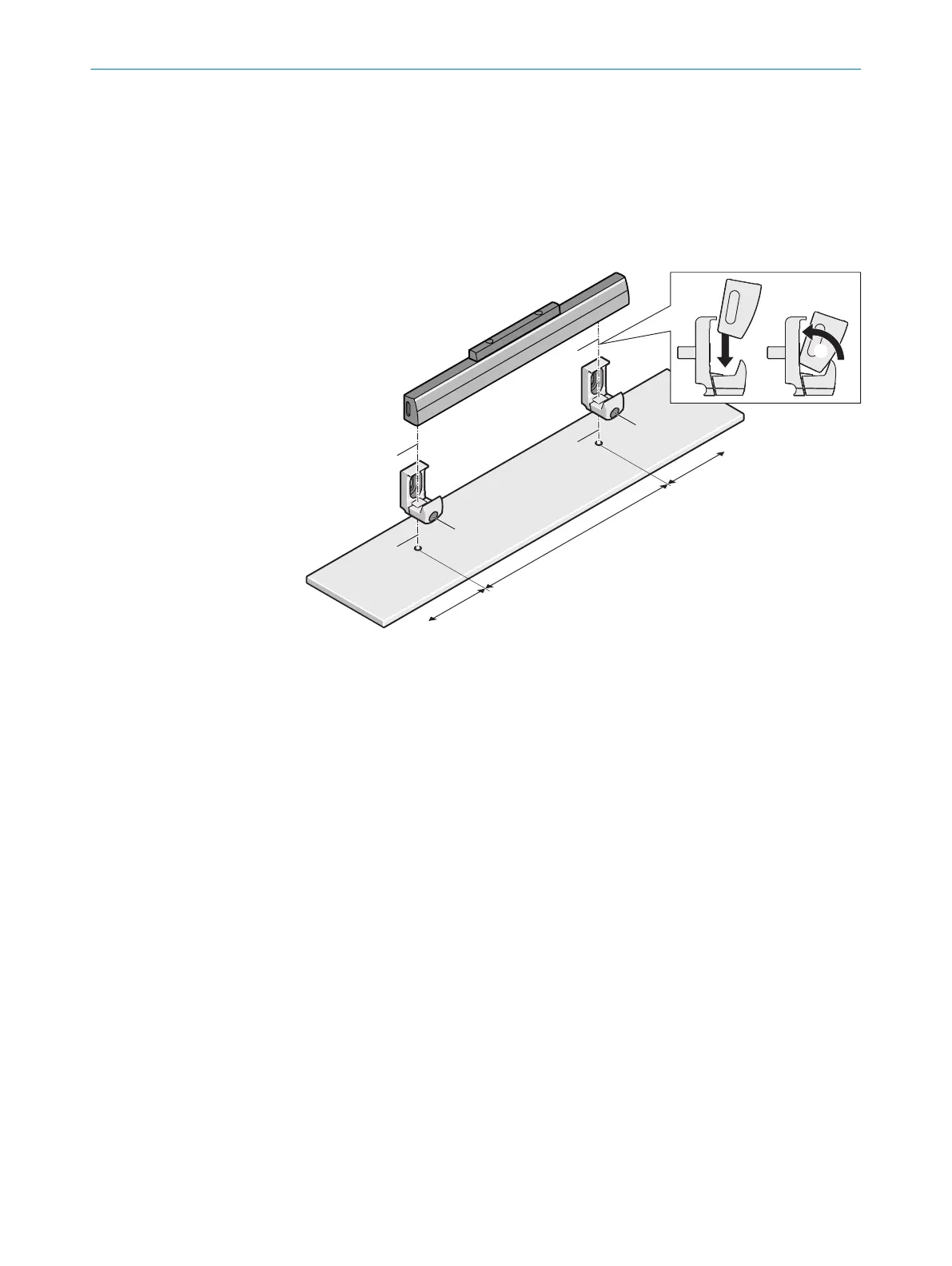

Figure 43: Mounting the miniTwin4 with C-Fix brackets
3.
Inser
t the twin stick into the C-Fix brackets and press downward gently (").
4.
Turn the twin stick to the rear until it engages in the C-Fix brackets (§).
5. Push the twin stick into the desired position.
6. To secure the twin stick ( ), tighten the M3 screws of the C-Fix brackets with a
torque of approx. 1.5$Nm.
5.4.5 Mounting with L-Fix bracket
Overview
T
he miniTwin4with a protective field height of 120 mm is mounted with the help of 2 L-
Fix brackets.
MOUNTING 5
8012624/10OM/2018-08-09 | SICK O P E R A T I N G I N S T R U C T I O N S | miniTwin4
53
Subject to change without notice
