Protective field height of the twin stick in mm Drilling distance L in mm
1080 1,092.6
1140 1,152.6
1200 1,212.6
5.4.4 Mounting with C-Fix bracket
Overview
T
he C-Fix bracket can be positioned very flexibly on the twin stick. It does not extend
the dimensions of the miniTwin4 safety light curtain.
With the C-Fix bracket, twin sticks can be mounted so they make contact or at right
angles to each other without harming the resolution at the junction points.

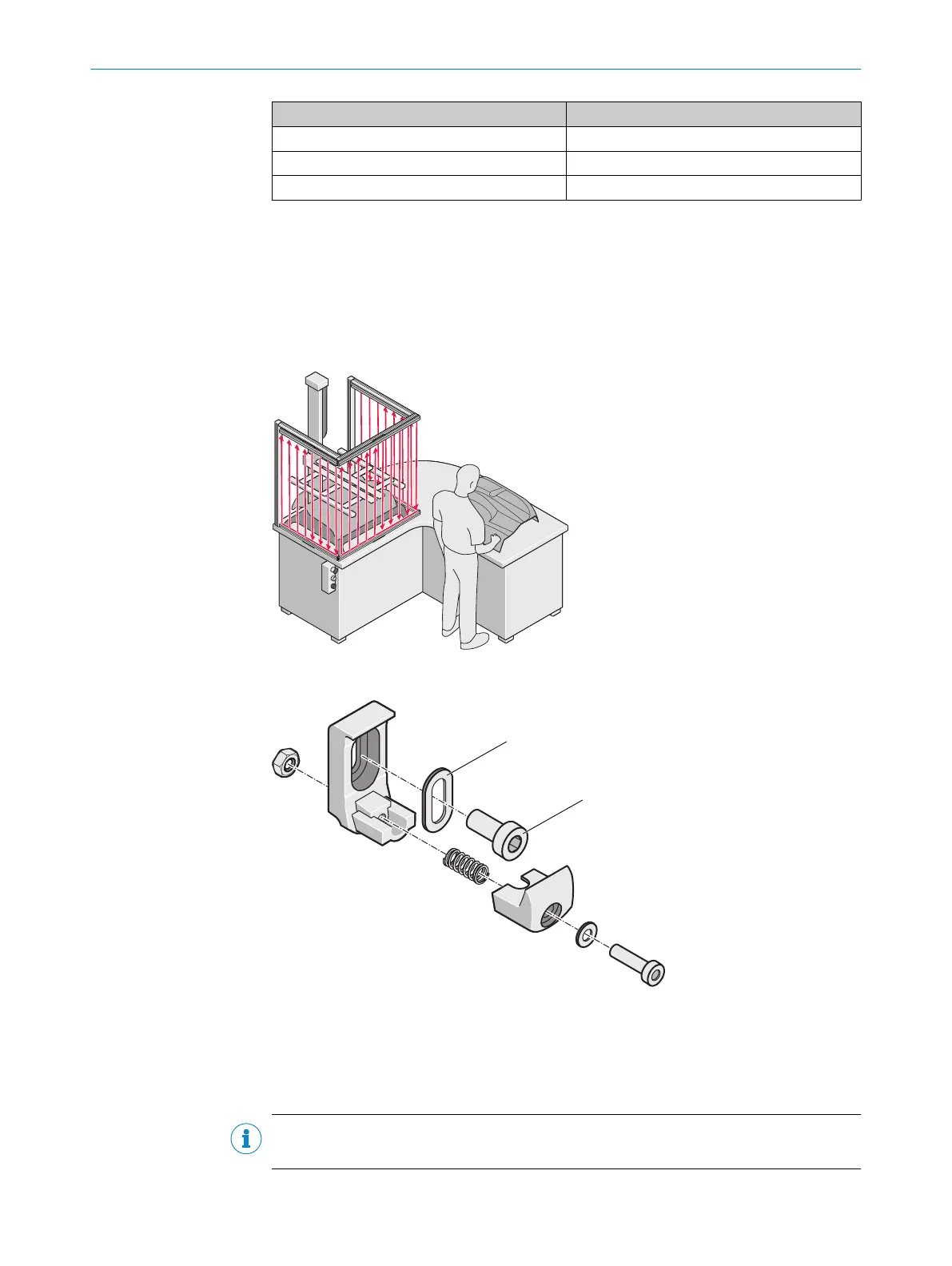

Figure 41: Application example, mounting with C-Fix bracket
Figure 42: C-Fix bracket, part no. 2045843
!
Washer
"
M5 fixing screw
Important information
NOTE
The C-Fix bracket cannot be used on a device with 120 mm protective field height.
5 MOUNTING
52
O P E R A T I N G I N S T R U C T I O N S | miniTwin4 8012624/10OM/2018-08-09 | SICK
Subject to change without notice
