System plug for cascaded systems
§
System plug for cascaded systems, rotated by 180°
$
System plug for single systems, rotated by 180°
7.4.1 Cascading new devices
Approach
1. Install and wire the devices.
2. Switch on the voltage supply.
3. If external device monitoring is connected correctly, it is configured automatically
and the EDM LED lights up orange.
4. To configure the restart interlock, press the reset pushbutton for between 1 and
3 s, then release it. The RES LED flashes orange.
✓
The cascade is in operation.
!
O
S
SD1
EDM
k
2
24 V
DC
k
1
0
V
DC
K1
K2
O
SSD2

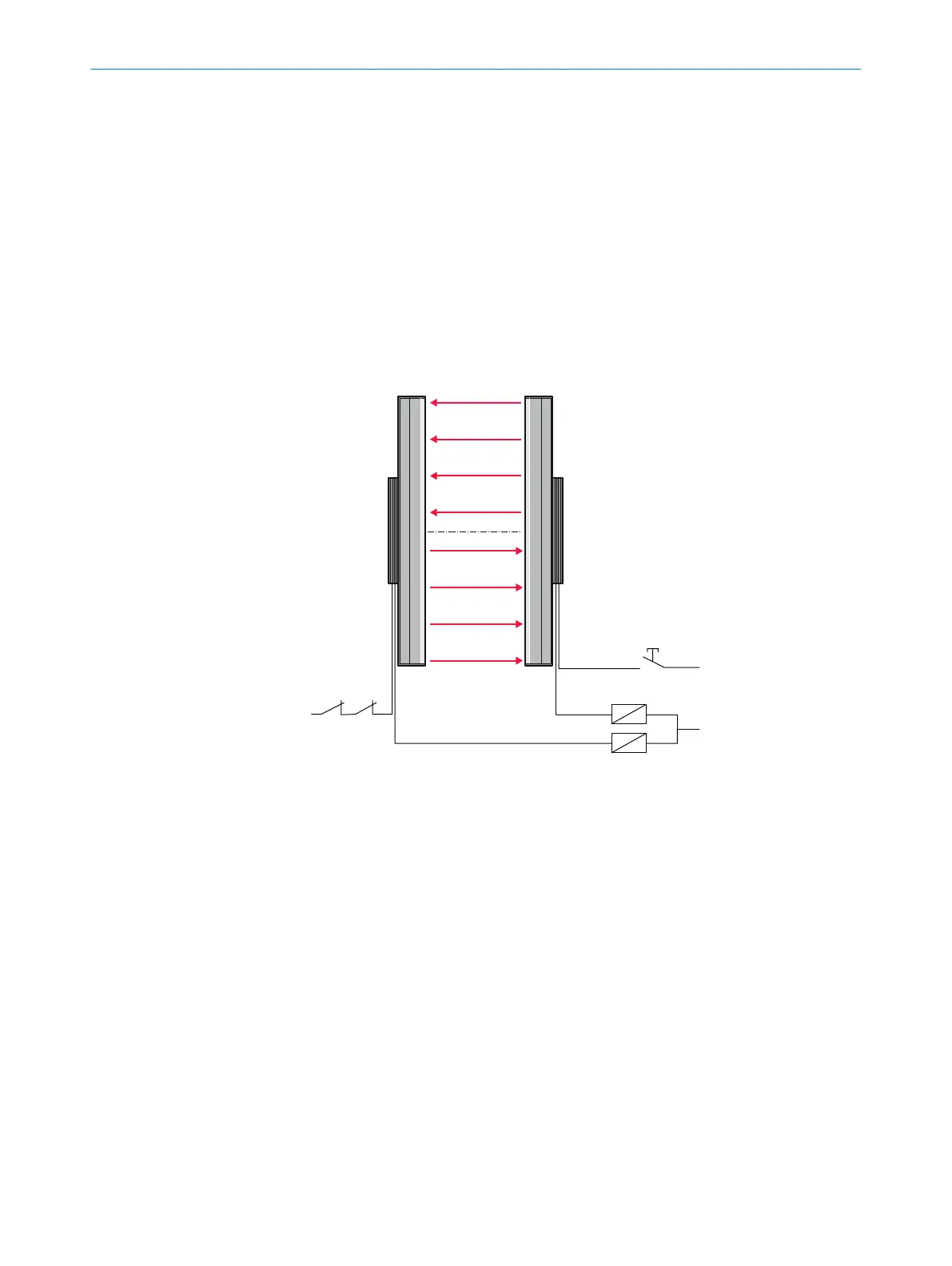

Figure 61: Configurable functions
!
Reset button
Further topics
•
"C
onfiguring beam coding", page 63
7.4.2 Connecting a new device in an existing cascade
Overview
If an unconf
igured device is used, it may be necessary to manually configure the RES.
EDM is automatically detected and saved. The configuration of a cascade device is
done using the plug.
Approach
1. Install and wire the device.
2. Switch on the voltage supply.
3. If a host twin stick is exchanged, it may be necessary to reconfigure EDM or RES.
✓
The device is in operation.
CONFIGURATION 7
8012624/10OM/2018-08-09 | SICK O P E R A T I N G I N S T R U C T I O N S | miniTwin4
71
Subject to change without notice
