SICK miniTwin4

11.2.2 Status indicator
!
!
!
!
!
!
!
!
180 mm
300 mm
120 mm 240 mm
&
"
§
$
%

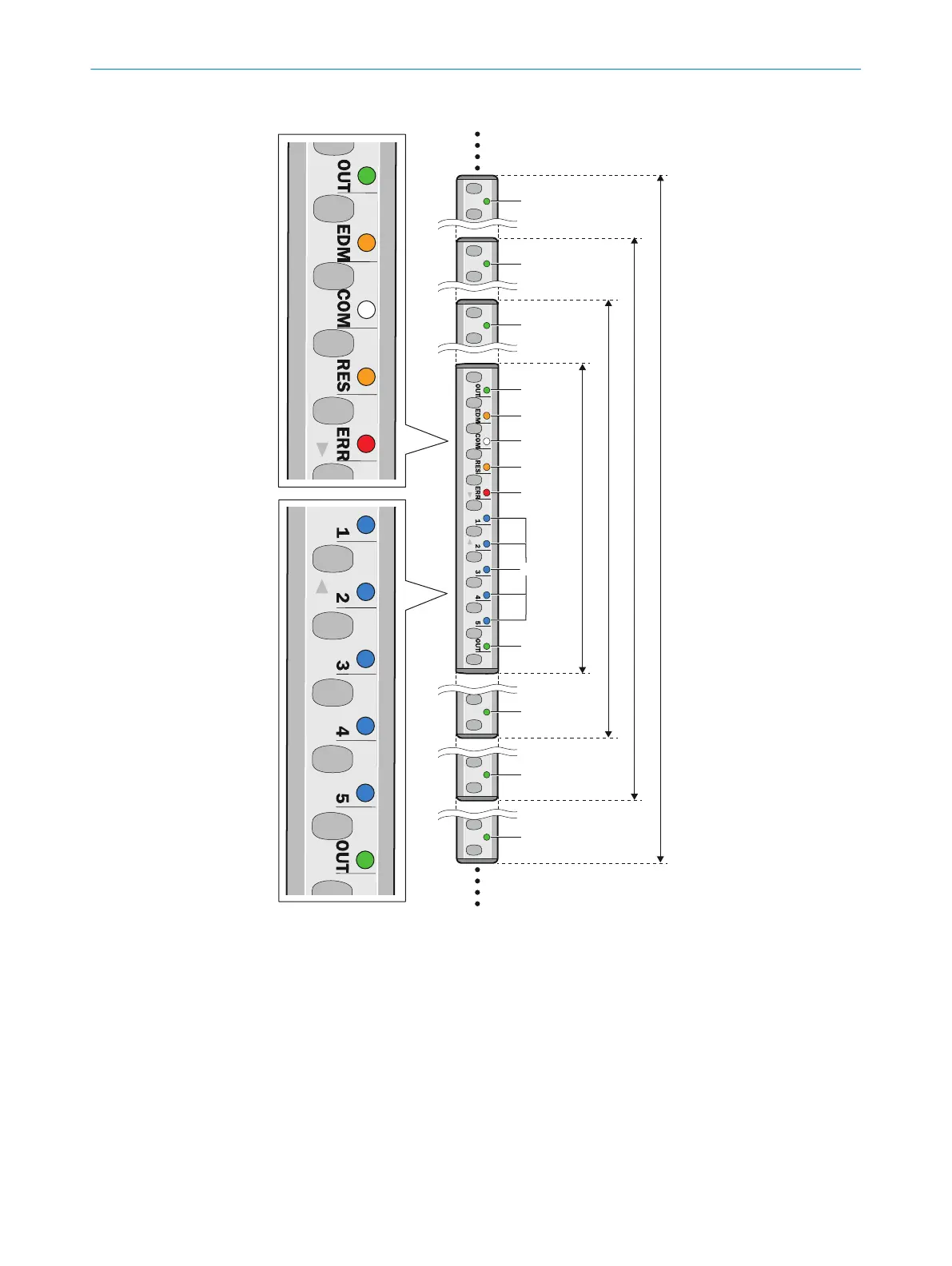

Figure 64: LEDs on the twin sticks
!
OUT
"
EDM
§
COM
$
RES
%
ERR
&
1, 2, 3, 4, 5
figure 7 sho
ws the LEDs of the safety light curtain. The OUT LED (!) is mounted at reg‐
ular intervals above a protective field height of 180 mm and can light up red or green. It
is only labeled OUT in two locations on the safety light curtain.
Lit up LEDs indicate a specific status of the safety light curtain. Flashing LEDs demand
action.
TROUBLESHOOTING 11
8012624/10OM/2018-08-09 | SICK O P E R A T I N G I N S T R U C T I O N S | miniTwin4
85
Subject to change without notice
