SICK miniTwin4 User Manual

Further topics
•
"Minimum dis
tance from the hazardous point", page 23
•
"Minimum distance from reflective surfaces", page 25
•
"Data sheet", page 89
•
"Design", page 21
5.4.1 Mounting direction of the twin stick
Overview
T
he safety light curtain consists of 2 identical twin sticks. Each twin stick contains both
the sender as well as the receiver unit, (figure X). Install the twin sticks so that the opti‐
cal elements are located opposite one another. To do so, rotate one twin stick by 180°
so that the sender unit of twin stick 1 points towards the receiver unit of twin stick 2. If
the EDM LED of twin stick 1 points towards LED 5 of twin stick 2, they have been
installed correctly.
s
s
r
r
! !

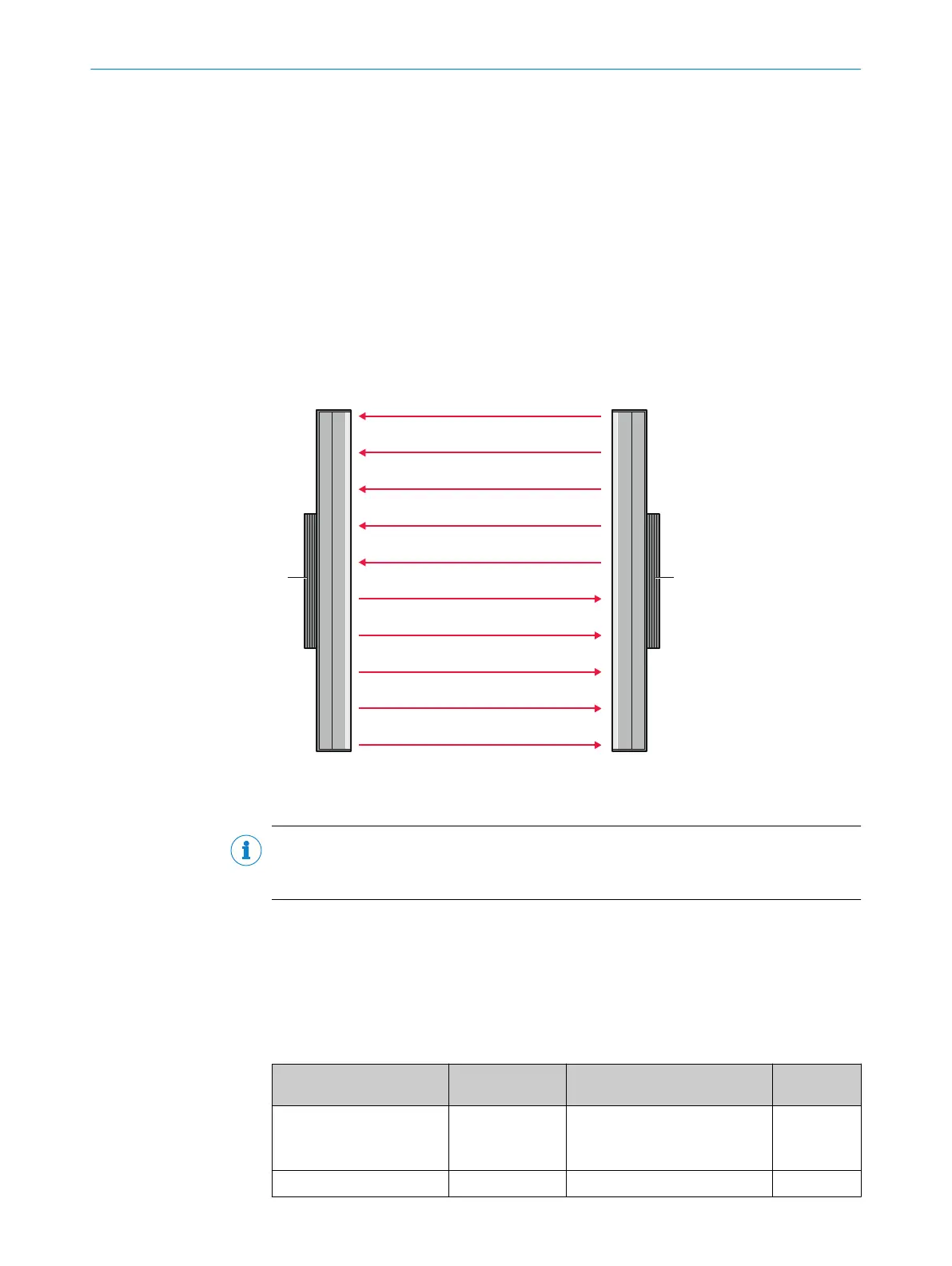

Figure 37: Mounting direction of the twin stick
!
Twin stick
NOTE
After electrical installation, the quality of the alignment of the safety light curtain can
be checked. During mounting, make sure the twin sticks are aligned to one another.
Further topics
•
"Ali
gnment of the twin stick", page 74
5.4.2 Mounting options
Possible ways of mounting theminiTwin4:
T
able 5: Mounting options
Bracket Protective field
hei
ght
Application features Page
O-Fix ≥ 180 mm
•
F
ixed mounting position
•
Flush-mounted
•
Not suitable for cascading.
page 50
C-Fix ≥ 180 mm
•
Flexible mounting position page 52
MOUNTING 5
8012624/10OM/2018-08-09 | SICK O P E R A T I N G I N S T R U C T I O N S | miniTwin4
49
Subject to change without notice
