DANGER
H
azard due to lack of effectiveness of the protective device
Persons or parts of the body to be protected may not be recognized or not recognized in
time in case of non-observance.
b
Observe the calculated minimum distances for the machine in which the safety
light curtain is integrated.
b
Then, mount the safety light curtain such that it is not possible to reach over,
under or around, or to stand behind the safety light curtain, and that the light cur‐
tain cannot be repositioned.
DANGER
H
azard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of non-
observance.
b
The safety light curtain can only be mounted on machines on which the protective
field width does not change when the safety light curtain is switched on.
CAUTION
T
o consider during mounting:
b
Mount the twin sticks on a level surface.
b
When mounting, make sure that the safety light curtain is aligned correctly. The
two housings of the twin sticks must be located exactly opposite one another.
b
Take appropriate measures for vibration damping if shock specifications exceed
the values in the data sheet section.
b
When mounting, observe the minimum distance of the system.
b
Then, mount the safety light curtain such that it is not possible to reach over,
under or to stand behind the safety light curtain, and that the light curtain cannot
be repositioned.

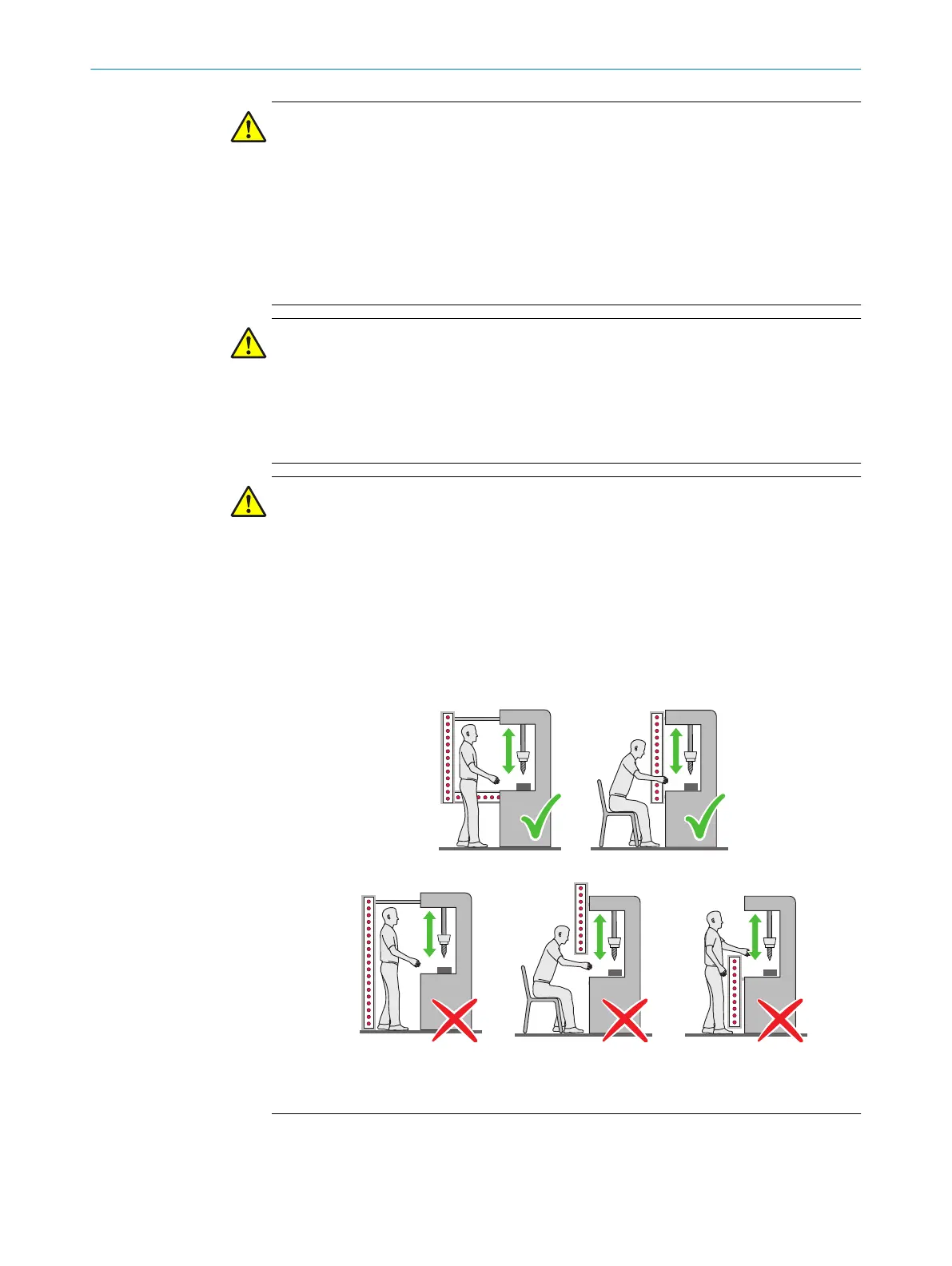

Figure 36: With correct mounting (above), the standing behind, reaching under and reach‐
in
g over errors (below) must be ruled out.
5 MOUNTING
48
O P E R A T I N G I N S T R U C T I O N S | miniTwin4 8012624/10OM/2018-08-09 | SICK
Subject to change without notice
