SICK miniTwin4 User Manual

Bracket Protective field
hei
ght
Application features Page
L-Fix ≤ 540 mm
•
F
ixed mounting position
•
Not suitable for cascading.
page 53
Combination of C-Fix/L-Fix ≥ 240 mm
•
Fixed mounting position of
L-Fix bracket
•
Flexible mounting position
of C-Fix bracket
page 55
C-Fix-Flex ≥ 180 mm
•
F
lexible mounting position
•
Flexible alignment of the
protective field
page 56
More information can be found at www.sick.com.
Further topics
•
"Br
ackets", page 101
5.4.3 Mounting with O-Fix bracket
Overview
W
ith the O-Fix bracket, the safety light curtain can be mounted flat, e.g. directly on the
machine bed.

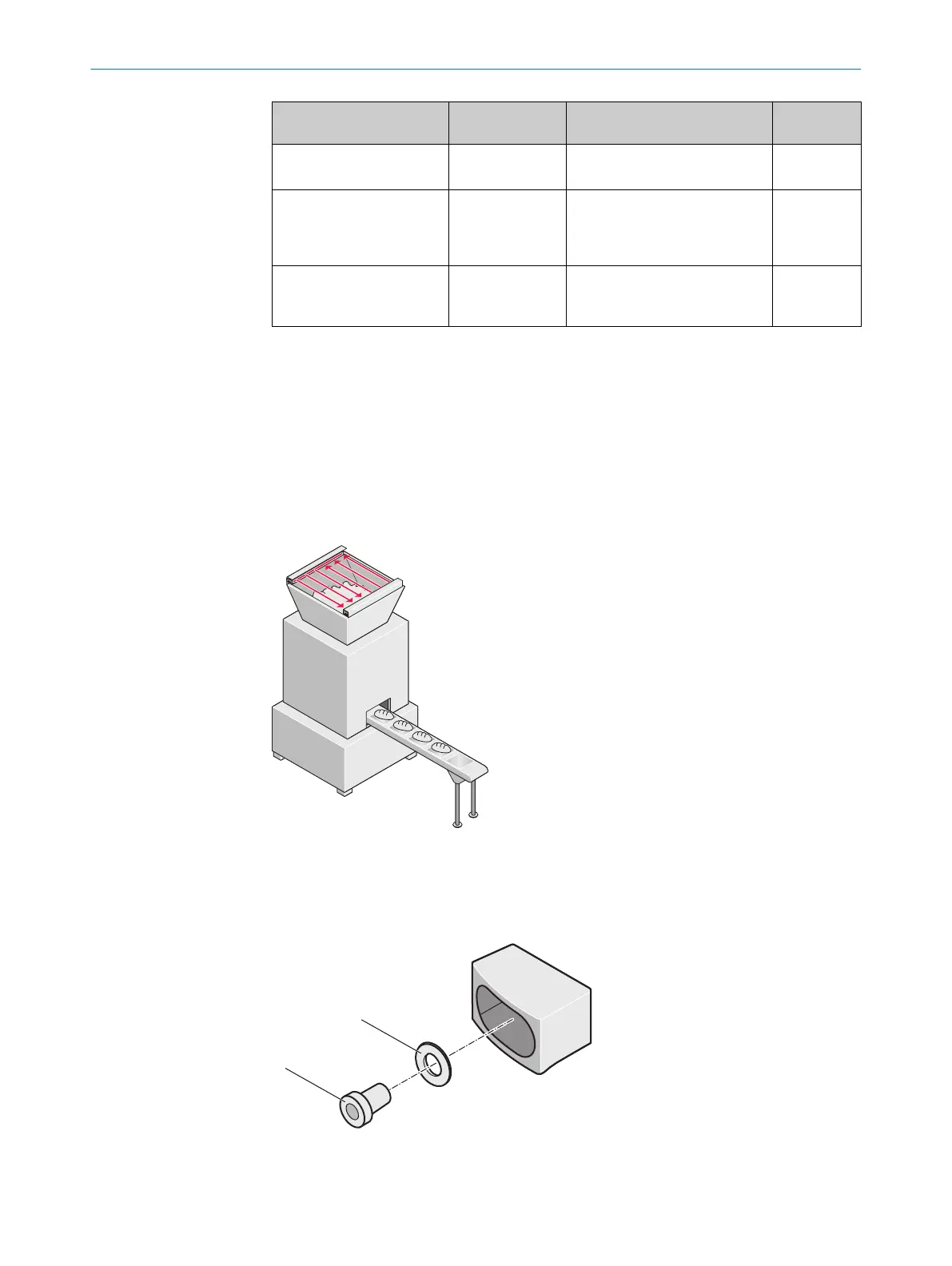

Figure 38: Application example, mounting with O-Fix bracket
T
he O-Fix bracket is mounted at the top and bottom of the miniTwin4 safety light cur‐
tain. Due to the O-Fix bracket, the respective twin stick is extended on both sides by
about 13 mm (see figure 66, page 101).
!
"
Figure 39: O-Fix bracket, part no. 2045835
!
DIN 125 washer
5 MOUNTING
50
O P E R A T I N G I N S T R U C T I O N S | miniTwin4 8012624/10OM/2018-08-09 | SICK
Subject to change without notice
