SICK miniTwin4

§
%
!
!
"
"
$
4°
20,6
4°
3 mm

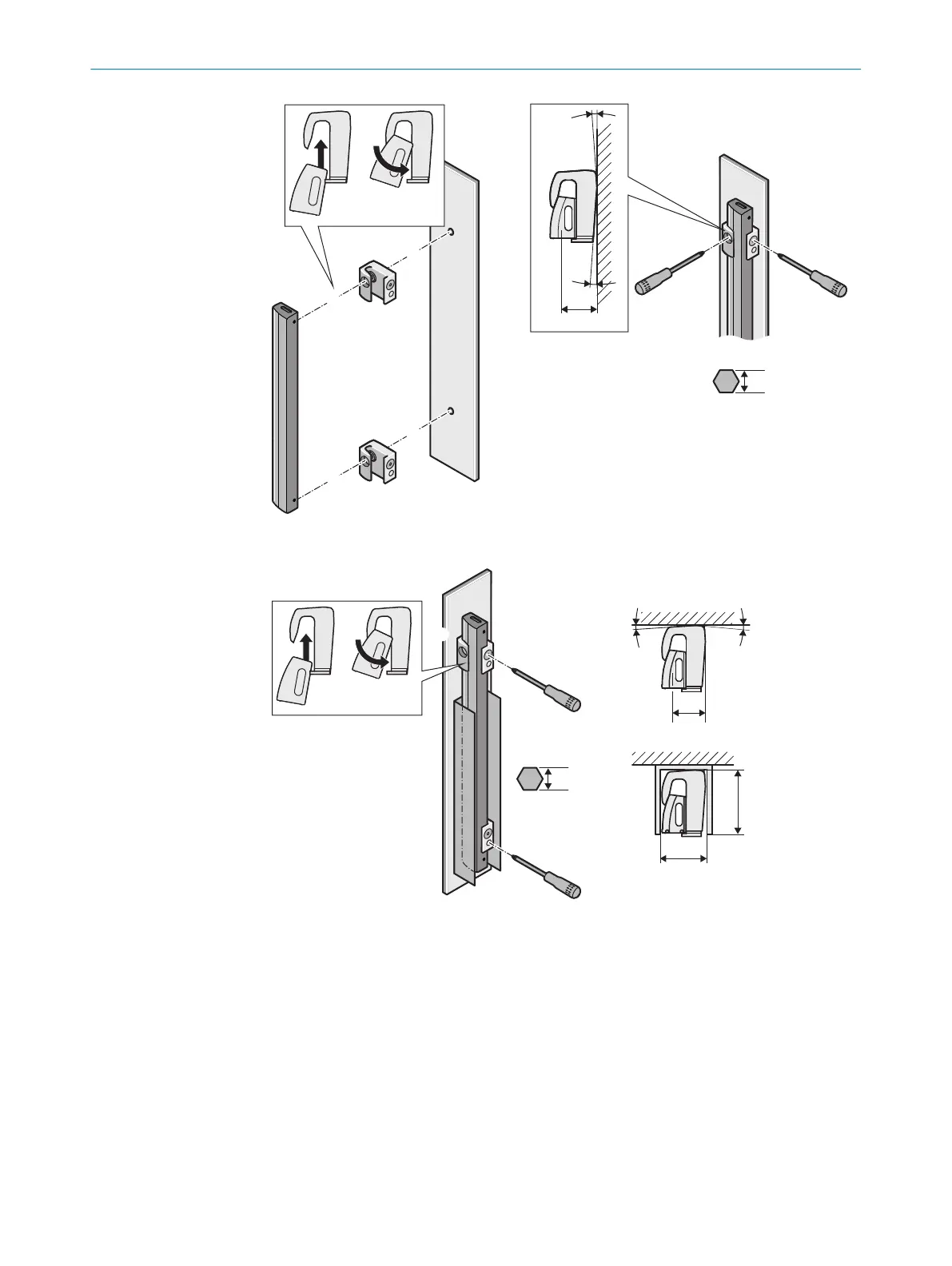

Figure 49: Mounting with C-Fix-Flex bracket, protective field parallel to the mounting surface
3 mm
4
° 4°
min. 29
min.
40
20,4
%
!
$
§
"
Figure 50: Mounting with C-Fix-Flex bracket, protective field perpendicular to mounting surface
5.5 Resolution at the end of the twin sticks
Overview
If se
veral safety light curtains are mounted so that they make contact or a safety light
curtain is mounted on a wall, depending on the type of bracket, the resolution at the
junction points or ends of the twin sticks differs. figure 51 shows:
•
The resolution between 2 twin sticks (higher value)
•
The resolution for a junction point of a twin stick with a wall or the ground (lower
value)
5 MOUN
TING
58
