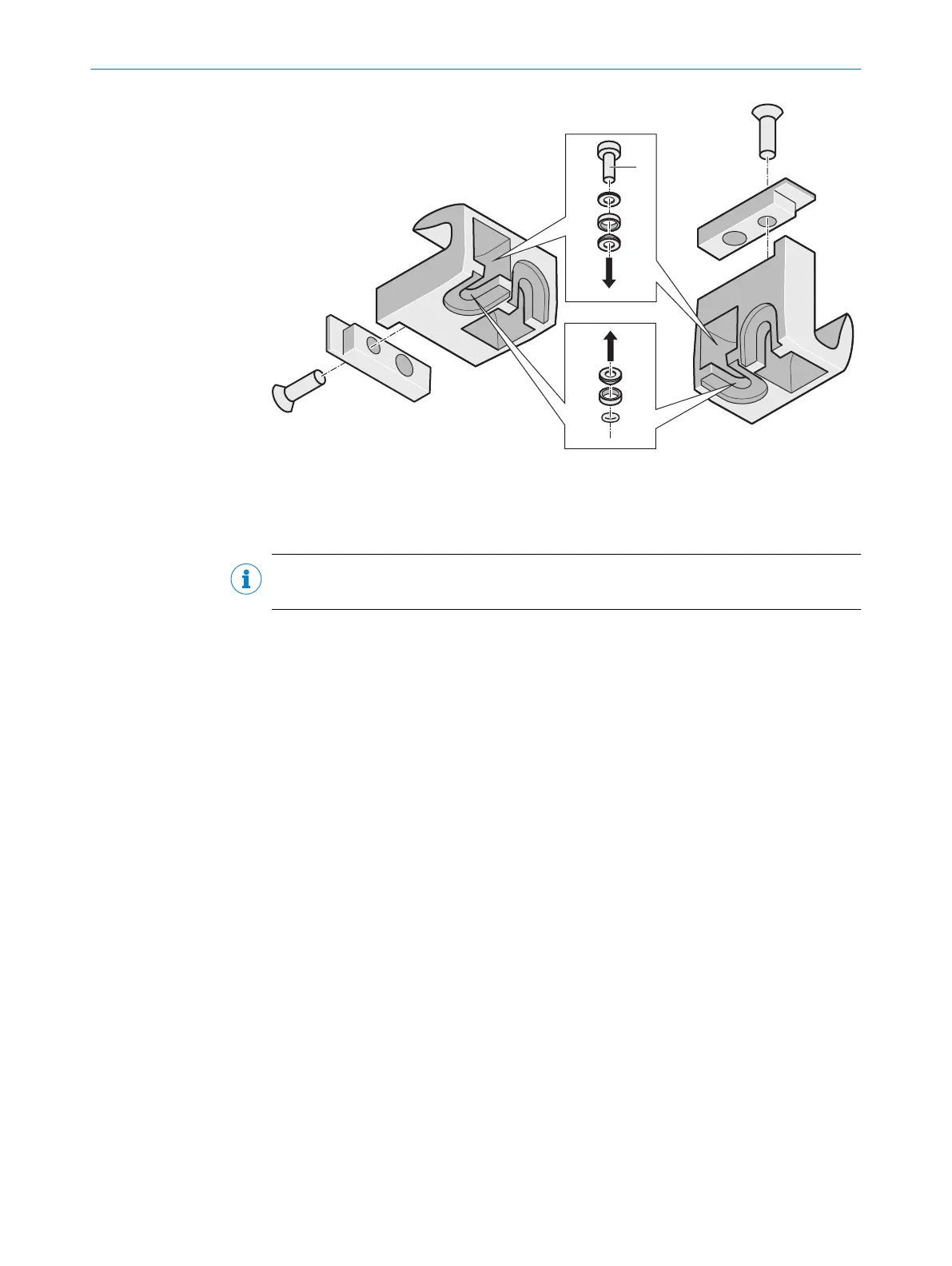

Figure 48: C-Fix-Flex bracket, part no. 2056598
!
M5×16 fixing screw
Important information
NOTE
T
he C-Fix-Flex bracket cannot be used on a device with 120 mm protective field height.
Approach
1.
Mount t
he C-Fix-Flex brackets (!) hand-tight at first so that the twin stick is posi‐
tioned at the correct height.
For applications in which vibrations could occur as well as for protective field
hei
ghts of ≥ 360 mm, we recommend assembling the brackets at a distance from
a fourth of the twin stick length from the end of the twin stick.
2. Insert the twin stick into the C-Fix-Flex brackets and press to the rear until it
engages (").
3. Push the twin stick into the desired position.
4. To secure the twin stick ( ), tighten the M3 screws of both C-Fix-Flex brackets with
a torque of approx. 1.5§Nm.
5.
Correct the bracket angle until alignment is optimal ($).
6. Tighten the M5 fixing screws of both C-Fix-Flex brackets with a torque of about
5 Nm. Higher torques can damage the bracket; lower torques provide inadequate
protection against vibrations (%).
MOUNTING 5
8012624/10OM/2018-08-09 | SICK O P E R A T I N G I N S T R U C T I O N S | miniTwin4
57
Subject to change without notice
