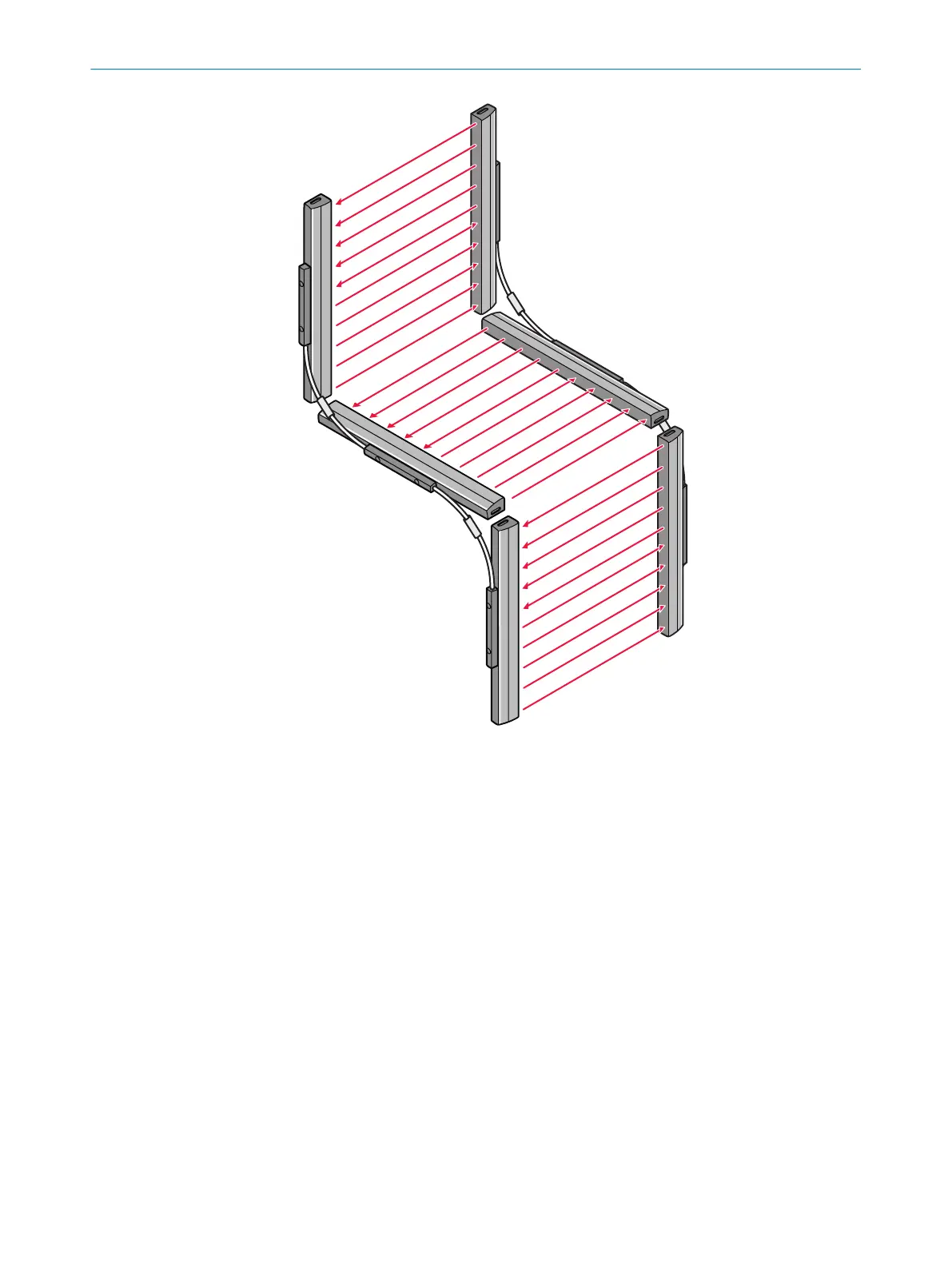

Figure 26: Cascading
!
Host
"
Guest 1
§
Guest 2
The following system plugs are available for cascading:
•
S
ystem plug for single systems with an M12×4 + FE system connection (male con‐
nector)
•
System plug for cascaded systems with an M12×4 + FE system connection (male
connector) and an M12×4 + FE extension connection (female connector)
A cascaded system with several safety light curtains is configured solely through the
selection of the system plug (single system or cascade) and its cabling. No other action
is necessary.
The individual safety light curtains can be used as single systems after disconnecting
them from the cascaded systems if they are connected via a system plug for single sys‐
tems.
