Prerequisites
•
T
he system or machine is in a non-dangerous state.
•
The twin sticks are aligned. LEDs 1 to 5 (O blue) show the alignment quality. At
least 3 of the 5 LEDs must light up so that the configuration can be deactivated.
Approach
1.
Switch the safety light curtain off and then back on and begin deactivation within
2 min.

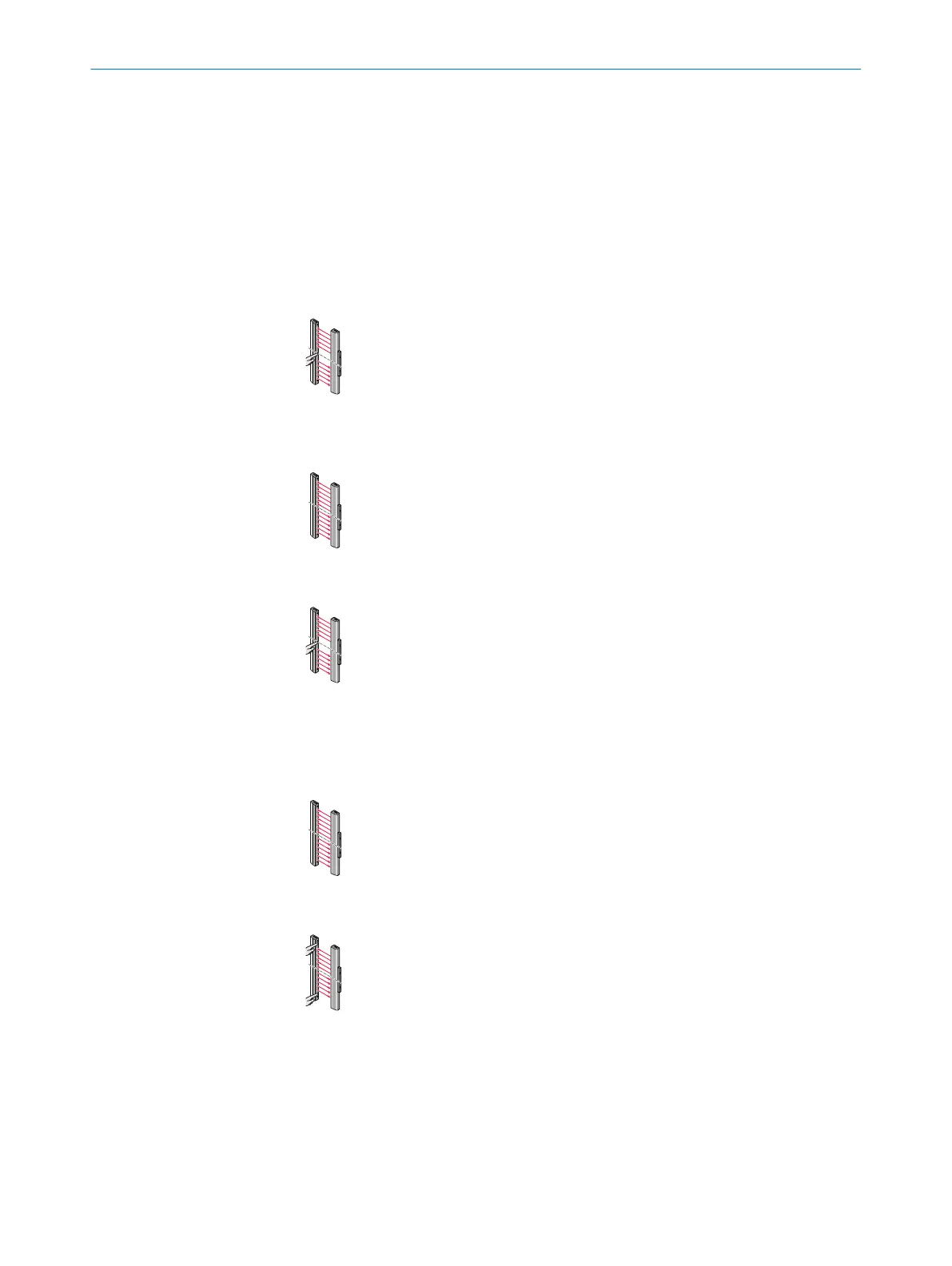

2. Interrupt the protective field of the safety light curtain until the COM LED flashes
white once (after about 3 s).
3. Stop the interruption within the next 30 s.
4.
Keep the protective field of the safety light curtain clear until the COM LED flashes
white once (after about 3 s).
5. Within the next 30 s, interrupt the protective field of the safety light curtain again
in t
he center until the COM LED flashes white once (after about 3 s).
6. Stop the interruption within the next 30 s.
✓
T
he run direction of LEDs 1 to 5 (Ö blue) points outwards; it points to the next
interruption.
7. Keep the protective field of the safety light curtain clear until the COM LED flashes
white once (after about 3 s).
8. Within the next 30 s, interrupt the protective field of the safety light curtain exter‐
nall
y until the COM LED flashes white once (after about 3 s).
9. Stop the interruption within the next 30 s.
✓
T
he run direction of LEDs 1 to 5 (Ö blue) points inwards; it points to the next
interruption in the center.
10. Keep the protective field of the safety light curtain clear until the COM LED flashes
white once (after about 3 s).
CONFIGURATION 7
8012624/10OM/2018-08-09 | SICK O P E R A T I N G I N S T R U C T I O N S | miniTwin4
67
Subject to change without notice
