SICK OD2000 User Manual

OD2000-050xxxx
Ø 100 µm
0 50 (1.97)40 (1.57)
Ø 70 µm
Ø 250 µm
60 (2.36)

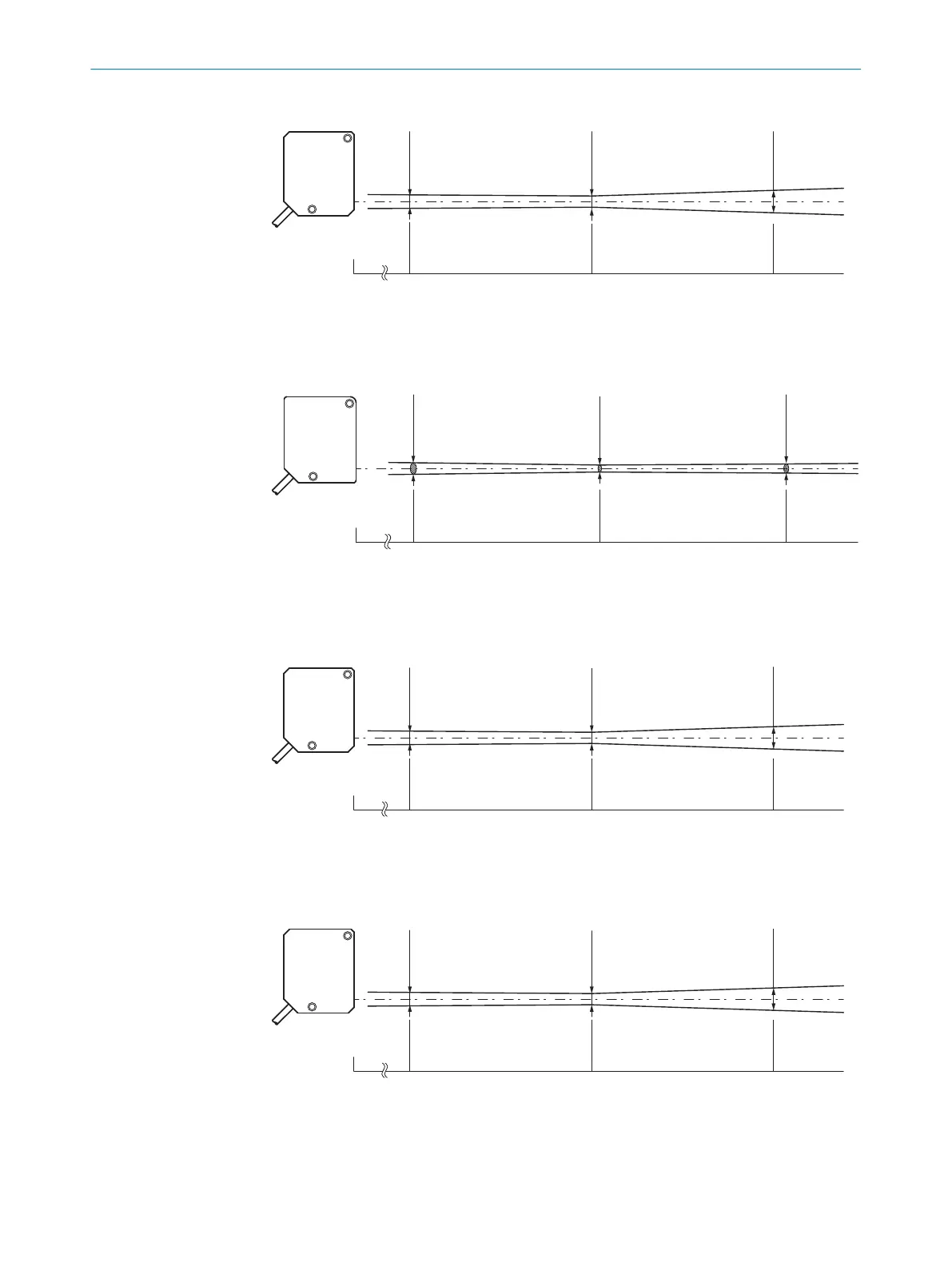

Figure 26: Typical light spot size for OD2000-050xxxx, unit for distance values: mm (inch),
decimal separator: period
OD2000-130xxxx
Ø 0.7 (0.03)
0 130 (5.12)60 (2.36)
Ø 0.3 (0.01)
Ø 0.5 (0.02)
200 (7.87)
Figure 27: Typical light spot size for OD2000-130xxxx, unit for distance values: mm (inch),
decimal separator: period
OD2000-245xxxx
Ø 600 µm
0 245 (9.65)70 (2.76)
Ø 500 µm Ø 800 µm
420 (16.54)
Figure 28: Typical light spot size for OD2000-245xxxx, unit for distance values: mm (inch),
decimal separator: period
OD2000-350xxxx
Ø 700 µm
0 350 (13.78)100 (3.94)
Ø 600 µm
Ø
1000 µm
600 (23.62)
Figure 29: Typical light spot size for OD2000-350xxxx, unit for distance values: mm (inch),
decimal separator: period
TECHNICAL DATA 10
8026231/1I18/2023-01-05 | SICK O P E R A T I N G I N S T R U C T I O N S | OD2000
61
Subject to change without notice
