9
ß
à
2
t
1
1234 0
1234 0
1234 0
1234 0
4
5
3
8
7
6
7
6 6
7

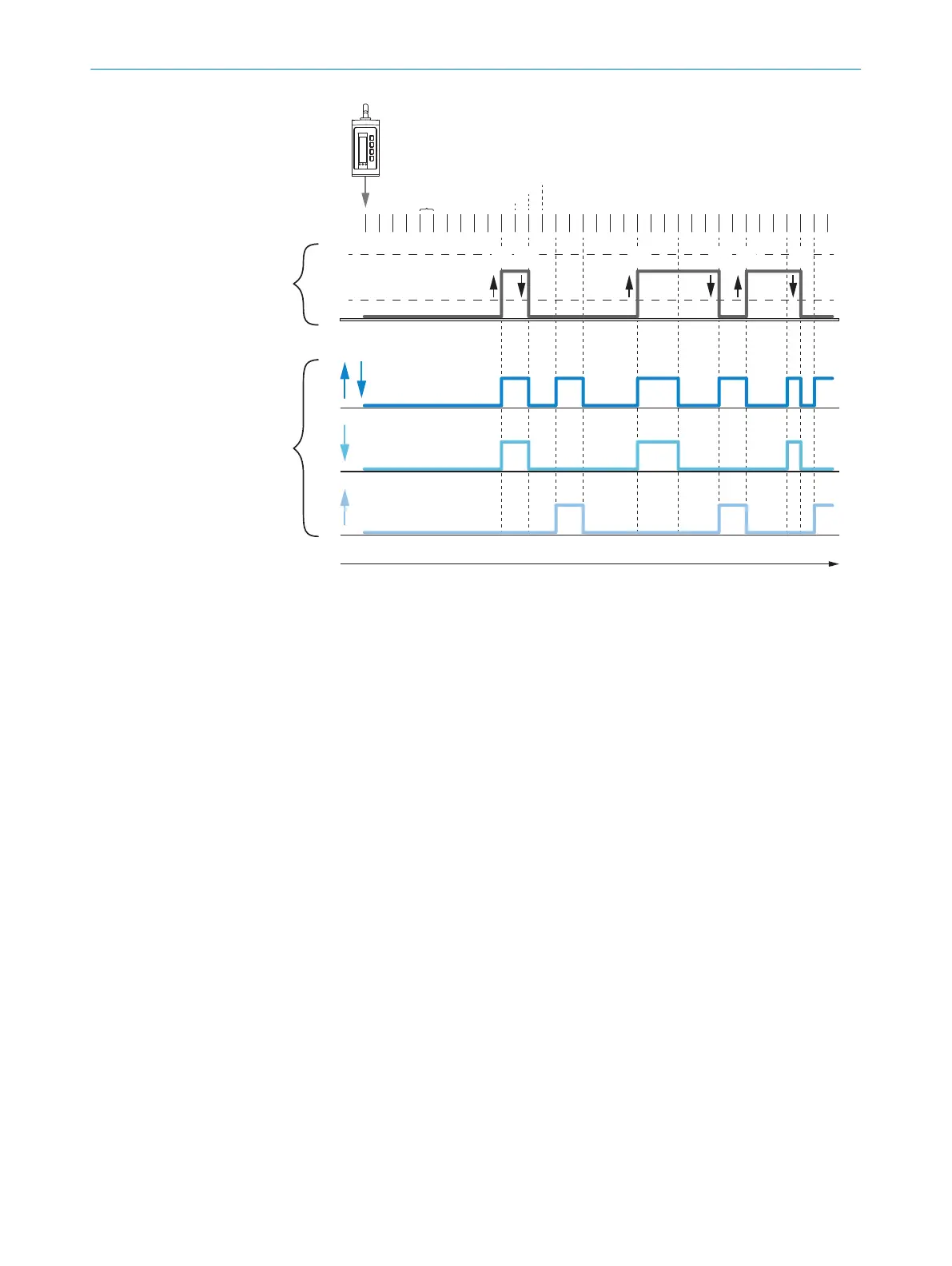

Figure 17: Edge height jump: Duration of the change in measured value is shorter than the time
span of the cycle offset.
1
Cycle offset: 4, without measured value filter
2
Fixed cycle time, e.g. 1ms
3
Signal diagram for real distance
4
Max. limit value for edge height change (mm)
5
Min. limit value for edge height change (mm)
6
Change in measured value, from large to small distance
7
Change in measured value, from small to large distance
8
Signal diagram for digital output
9
Jump direction parameter > Both
ß
Jump direction parameter > Negative
à
Jump direction parameter > Positive
7.4.3.8 Q1 Off menu
If the Q1 Off output mode is activated, the Q1 output has no function and is deactivated.
7.4.4 Q2/Qa Output menu group
The Q2/Qa output can be configured either as an analog output or as a digital output.
Devices without an analog output have a second digital output, see "Device variants",
page 13. The information about the analog output is not relevant for these devices.
If an output mode is selected, the required settings can be taught in or set manually.
Depending on the selected output mode, different parameters are available.
7.4.4.1 Setting analog value
An analog value can be taught-in or set manually. Do not teach in the same distance
value for the near-sensor and far-sensor distances.
OPERATION 7
8026231/1I18/2023-01-05 | SICK O P E R A T I N G I N S T R U C T I O N S | OD2000
39
Subject to change without notice
