7.4.3.7.4 Examples: Output of the digital output in the edge height jump output mode
1
2
9
ß
à
4
5
8
6
6
7
1234 0
1234 0
1234 0
1234 0
t
3

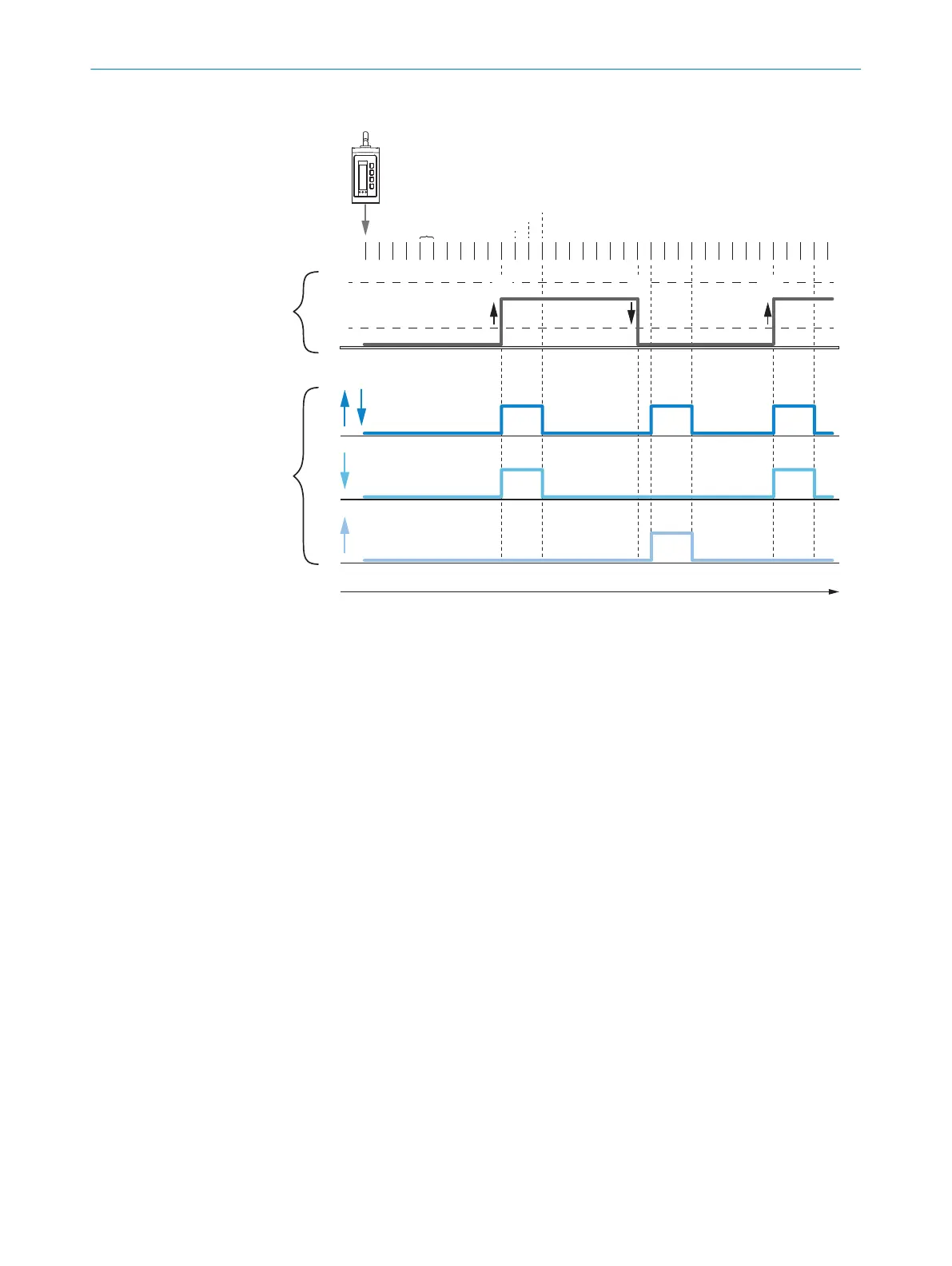

Figure 16: Edge height jump: Duration of the change in measured value is longer than the time
span of the cycle offset.
1
Cycle offset: 4, without measured value filter
2
Fixed cycle time, e.g. 1ms
3
Signal diagram for real distance
4
Max. limit value for edge height change (mm)
5
Min. limit value for edge height change (mm)
6
Change in measured value, from large to small distance
7
Change in measured value, from small to large distance
8
Signal diagram for digital output
9
Jump direction parameter > Both
ß
Jump direction parameter > Negative
à
Jump direction parameter > Positive
7 OPERATION
38
O P E R A T I N G I N S T R U C T I O N S | OD2000 8026231/1I18/2023-01-05 | SICK
Subject to change without notice
