SICK OD2000

12 Annex
12.1 Menu structure

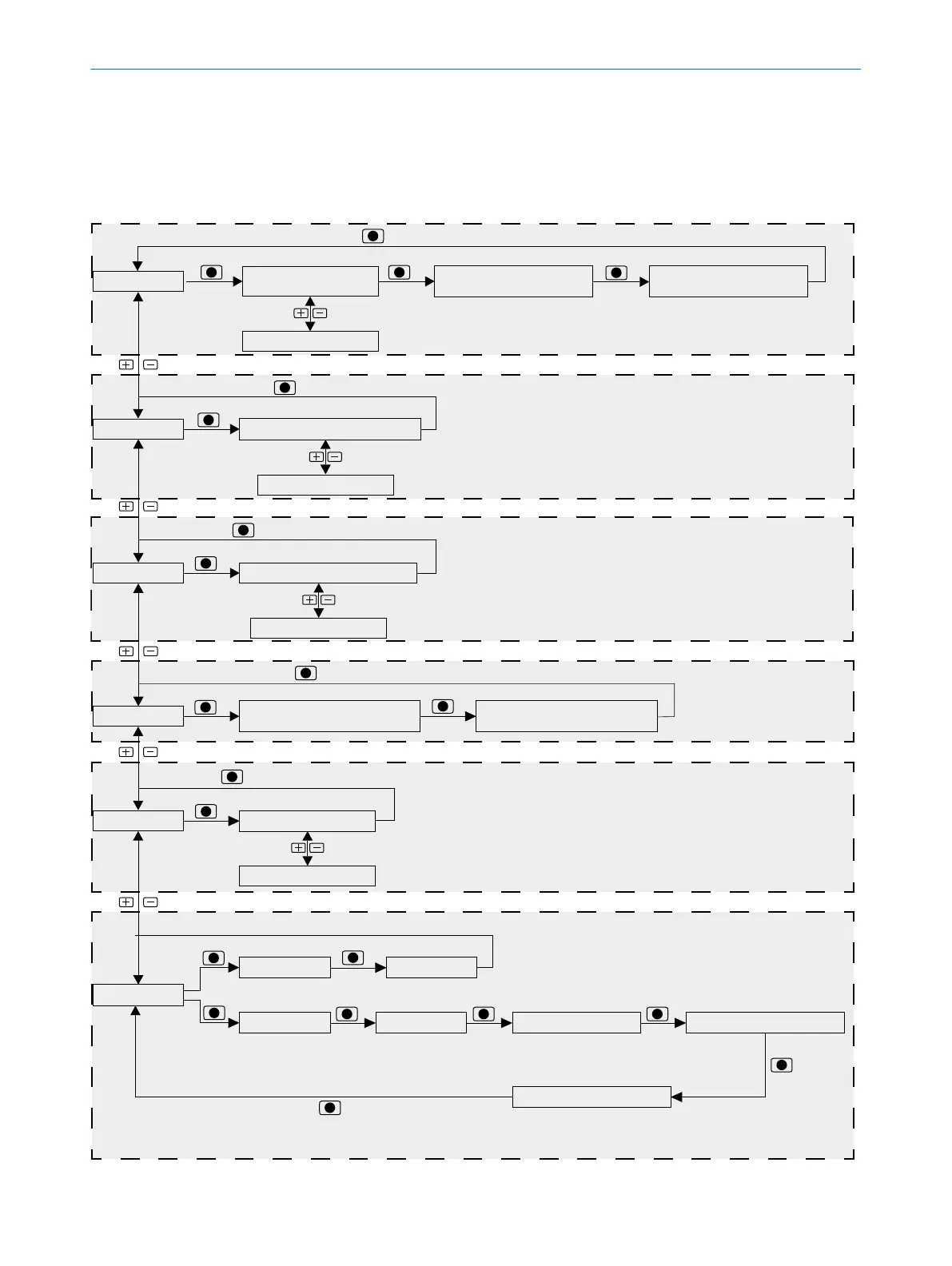

12.1.1 Quick menu structure
Distance
3 s
SET Q1 / Q2
Mode
SET Q1 / Q2
SP1 teach-in (auto)
SET Qa
4 mA / 0 V teach-in (auto)
SET Qa
20 mA / 10 V teach-in (auto)
SET Q1 / Q2
SP2 teach-in (auto)
Select option
Select option
3 s
SET Zero point teach-in
Distance(rel.)
Select area
Select option
3 s
Distance(bar)
Light distribution curve
3 s
Analog value
3 s
SET mode
Mode
3 s
Records
Start Stop
Min. value Max. value
Average value
Delta min./max.
Standard deviation
1)
1)
