TECHNICAL DATA 9
117
Subject to change without notice
ORIGINAL OPERATING INSTRUCTIONS| VMS4200/5200 (Multicontroller)
9.2.2 Dimensional drawings for the cabinet

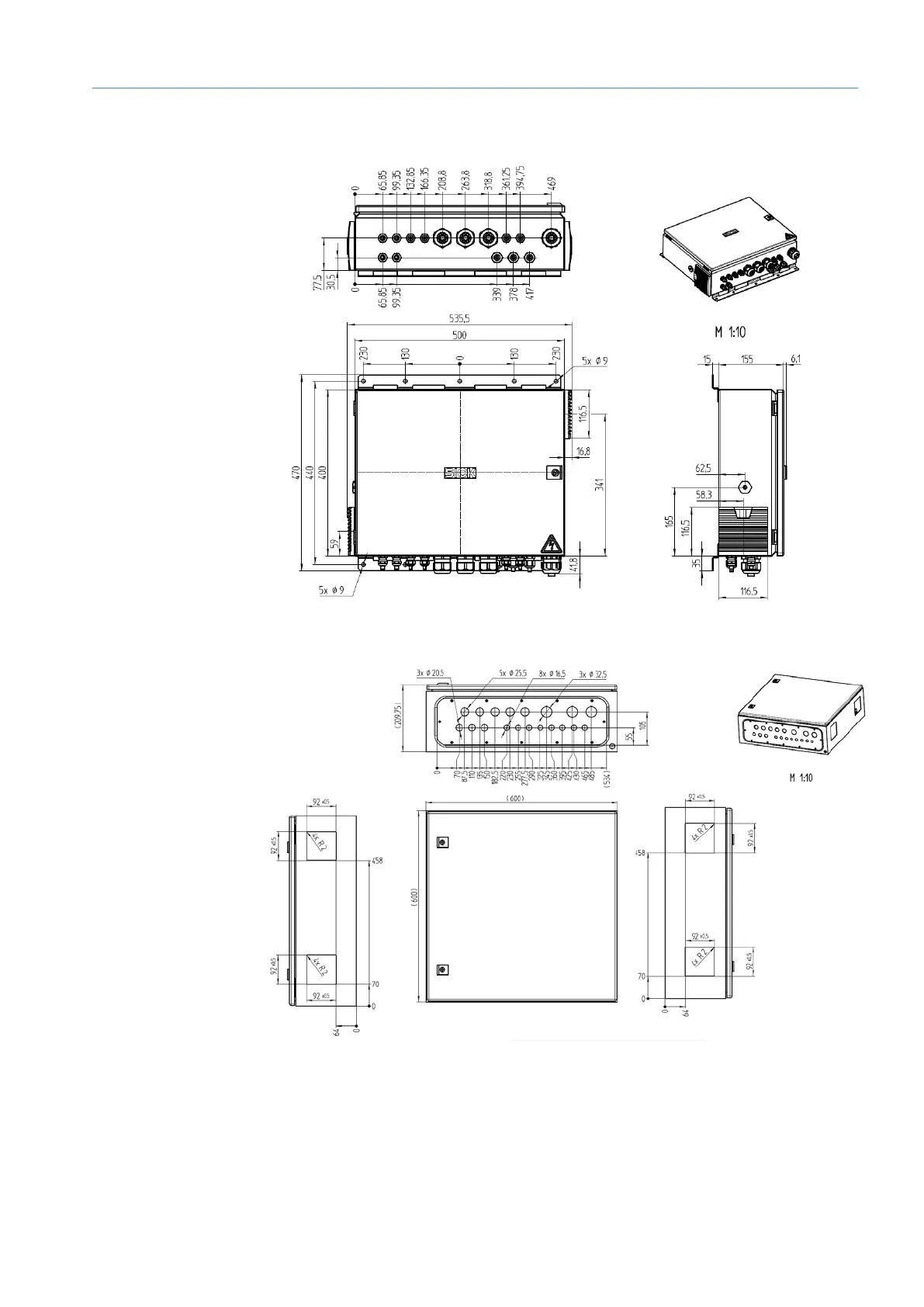

Fig. 92: Dimensional drawings for the cabinet of the VMS4200/5200
Fig. 93: Dimensional drawings for the cabinet of the VMS4200/5200 (Multicontroller)
