SICK VMS4200

SYSTEM DESCRIPTION 3
27
8022965-17I6/2020-03-19|SICK
Subject to change without notice
ORIGINAL OPERATING INSTRUCTIONS| VMS4200/5200 (Multicontroller)
3.3.4 Data output

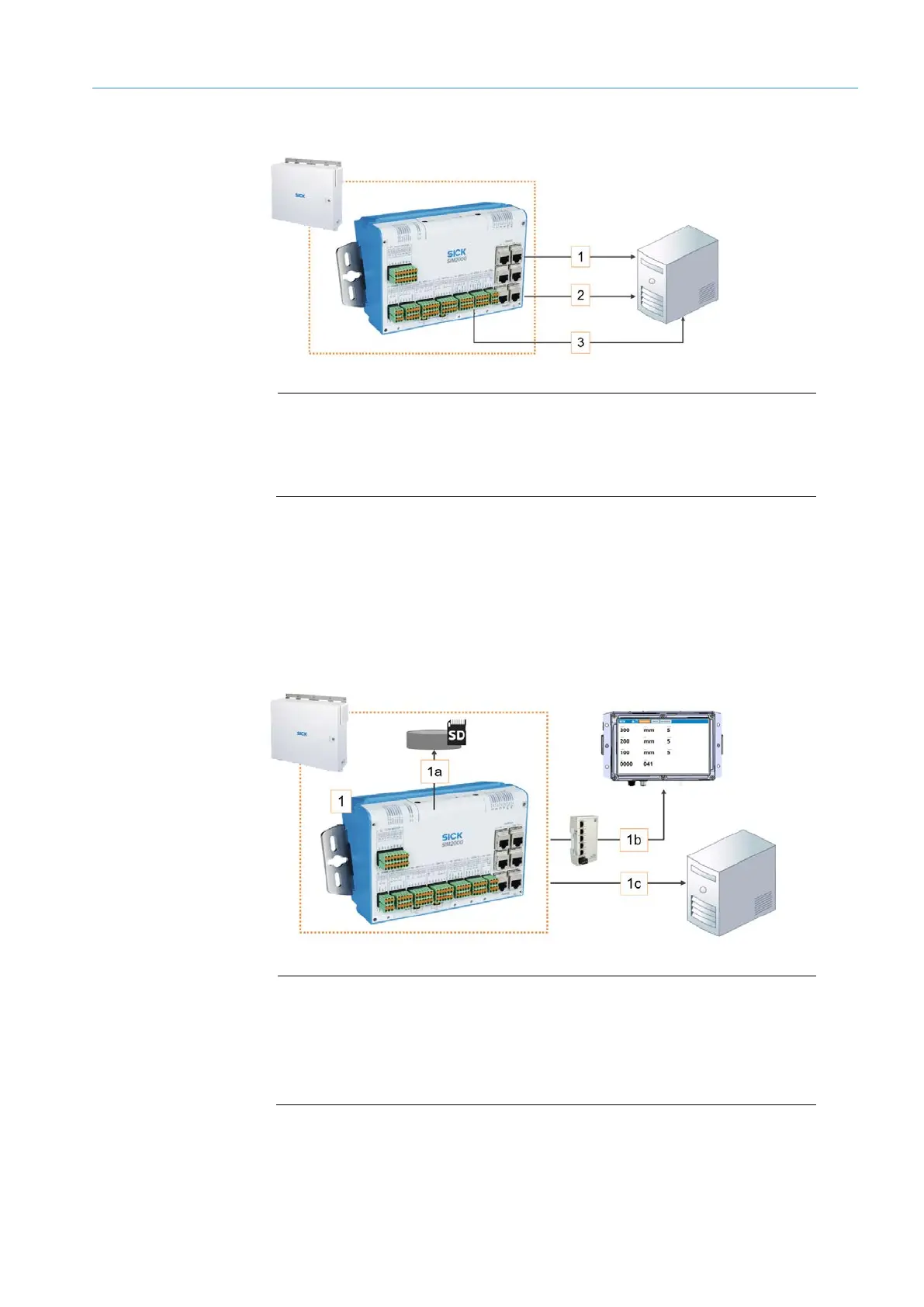

Fig. 16: Data output of the VMS4200
Legend
1
Data output via Ethernet
2
Data output via fieldbus
3
Data output via RS-232 / RS422
• The SIM2000 system controller assigns the calculated measurement results to the
respective object.
• The measurement results are issued to a higher-level system.
• The data is issued via a host telegram coordinated by the customer.
• The calculated 3D point cloud of the calculated model can also be optionally outputted
here.
Fig. 17: Data output of the VMS5200
Legend
1
SIM2000 system controller
1a
Saving of measurement results in alibi memory
1b
Display of measurement results on LFT display
1c
Data output via Ethernet, fieldbus, RS-232 / RS422
• During billing-related operation of the VMS5200, before the data is outputted the
measurement results are saved in the SIM2000 alibi memory, which is required
for legal-for-trade verification.
• The measurement results are also displayed on the LFT display.
VMS4200 data output
VMS5200 data output
