5.3 Connection for the Ethernet switch (set up at the factory)
5.3.1 VMS4200/5200

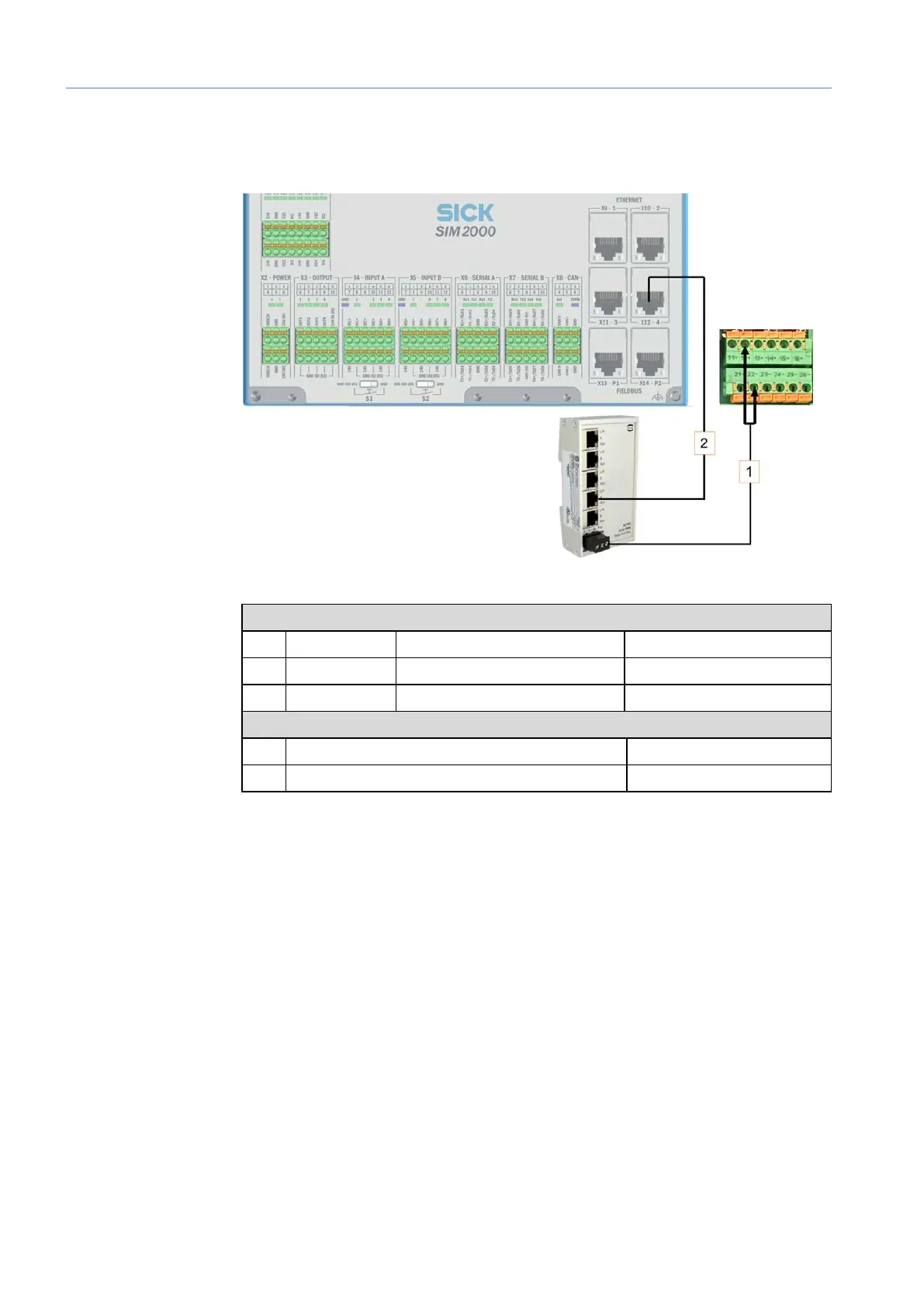

Fig. 66: Connection for the Ethernet switch (set up at the factory)
Voltage supply
No. Wire color Area on fuse block Connection
Red F1_6A 12 +
Dark blue F1_6A 22 -
Ethernet connection to the system controller
No. Connection to the Ethernet switch Port on SIM2000
2 X4 X12 -4
Tab. 11: Connection for the Ethernet switch (set up at the factory)
