3 SYSTEM DESCRIPTION
14
8022965-17I6/2020-03-19|SICK
ORIGINAL OPERATING INSTRUCTIONS| VMS4200/5200 (Multicontroller)
Subject to change without notice
3.2 System components

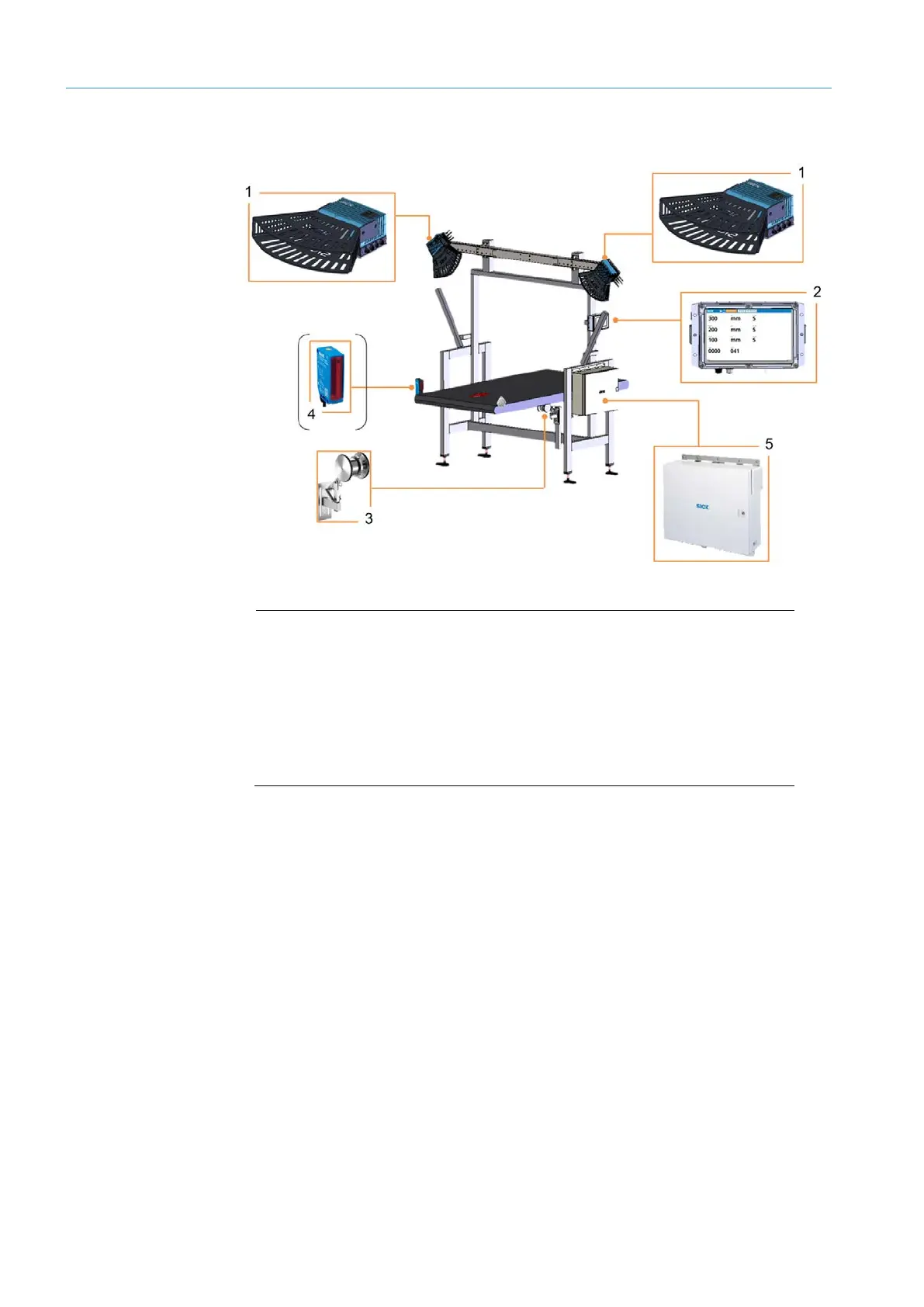

Fig. 1: Components of the VMS4200/5200(Multicontroller)
Legend
1 LMS4x21 2D LiDAR sensors with laser protective cover
2 LFT display - VMS5200 (Multicontroller) only
3 Incremental encoder (e.g., DFV60)
4 Photoelectric retro-reflective sensor for triggered systems (e.g., RAY26)
5 Cabinet with the SIM2000 system controller (and possibly SIM2000
dimensioning controller) and power supply units
Mount the system components according to the technical drawing on a frame provided
by the customer.
Additional glare protection on the frame (beam blocker) prevents objects located
outside of the measuring range from being included in the calculation of measured
values.
Devices
Mounting
