Dimensional drawings
C.1 Dimensional drawings of the mounting rails
S7-300 Automation System Module data
C-4 Manual, 08/2006, A5E00105505-04
Mounting rail 160 mm

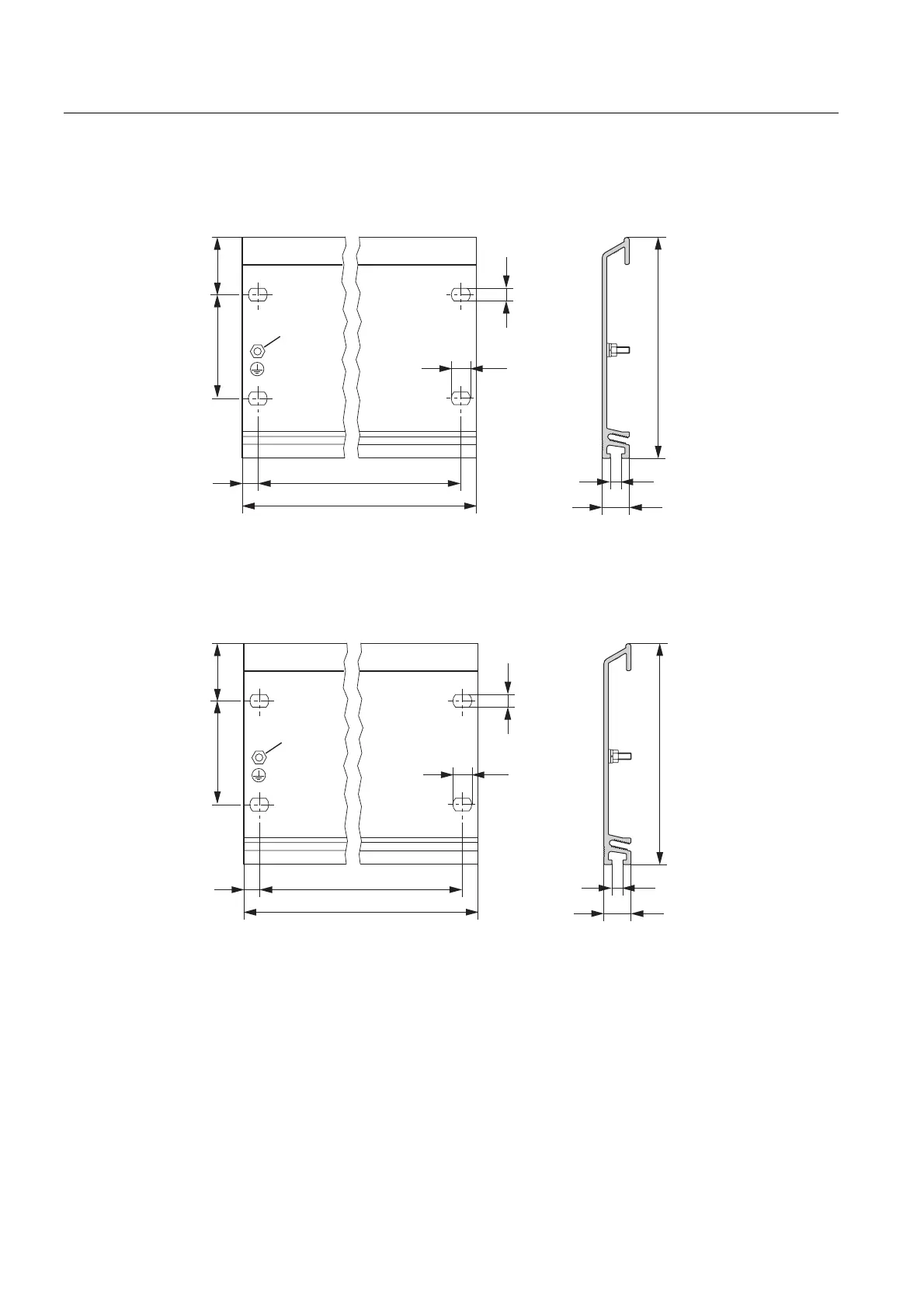

The figure below shows the dimensional drawing of the 160 mm mounting rail.
0
Figure C-5 Dimensional drawing of the mounting rail with standard width of 160 mm.
Mounting rail 482.6 mm
The figure below shows the dimensional drawing of the 482.6 mm mounting rail.
0
Figure C-6 Dimensional drawing of the mounting rail with standard width of 482.6 mm.
