37 Parameterization, Flash programming
Parameters are set for the CS1140 fire detection system via the maintenance PC by
means of the software tool set ’AlgoWorks’
Online-Help text in various languages
2 user levels (service engineer; Person locally responsible)
New software is programmed by means of the ’Flash Tool’ software. For the modules
E3X102/103, B3Q6../565 the application software is now loaded into the Flash ROM
via the maintenance PC by means of the ’Flash Tool’ software.
Details see document e4282
E3M...
B3D021
Modem box
RS232
CC11

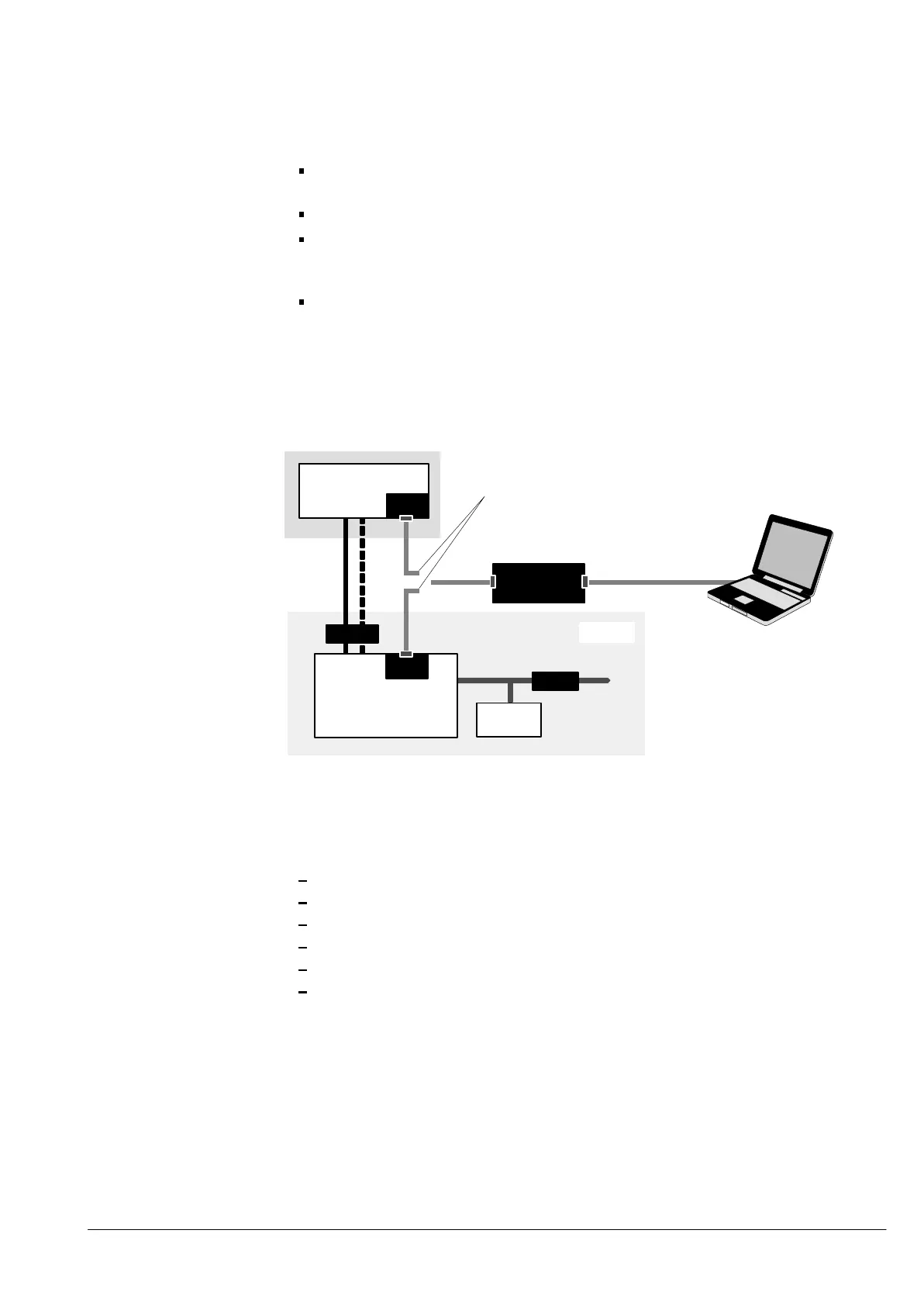

Maintenance PC with
’AlgoWorks’ + ’FlashTool’
software
I-Bus
C-Bus
CPU
E3X10.
ST2
AlgoPilot B3Q...
CPU /
Operating unit
ST2
– for flash programming new application software
– download all system data
Functions at ”Service engineer” level
Load new application software (Flash) if necessary
Prepare/supplement structure of the system
Define user functions (system-specific)
Specify/correct user text
Detector localization
Data transfer of user functions to control unit
Modules
B3D021 505259 Modem box for AlgoWorks (DUAL RS232 ITF) complete with flat cable 20 cond., L=0.2m
505330 flat cable L=0,2m as spare part
