28 Remote transmission
Most fire detection systems are linked to a remote transmission system. Therefore in
case of alarm (alarm stage 2) the fire detection system must initiate the remote trans-
mission device (RT-device).
Remote transmission device
located in cabinet of control unit
required space depends on the type of remote transmission device
powered by 24VDC of the fire control unit
single channel (alarm + fault) or multi channel (several alarm channels)
disabling/enabling via AlgoPilot

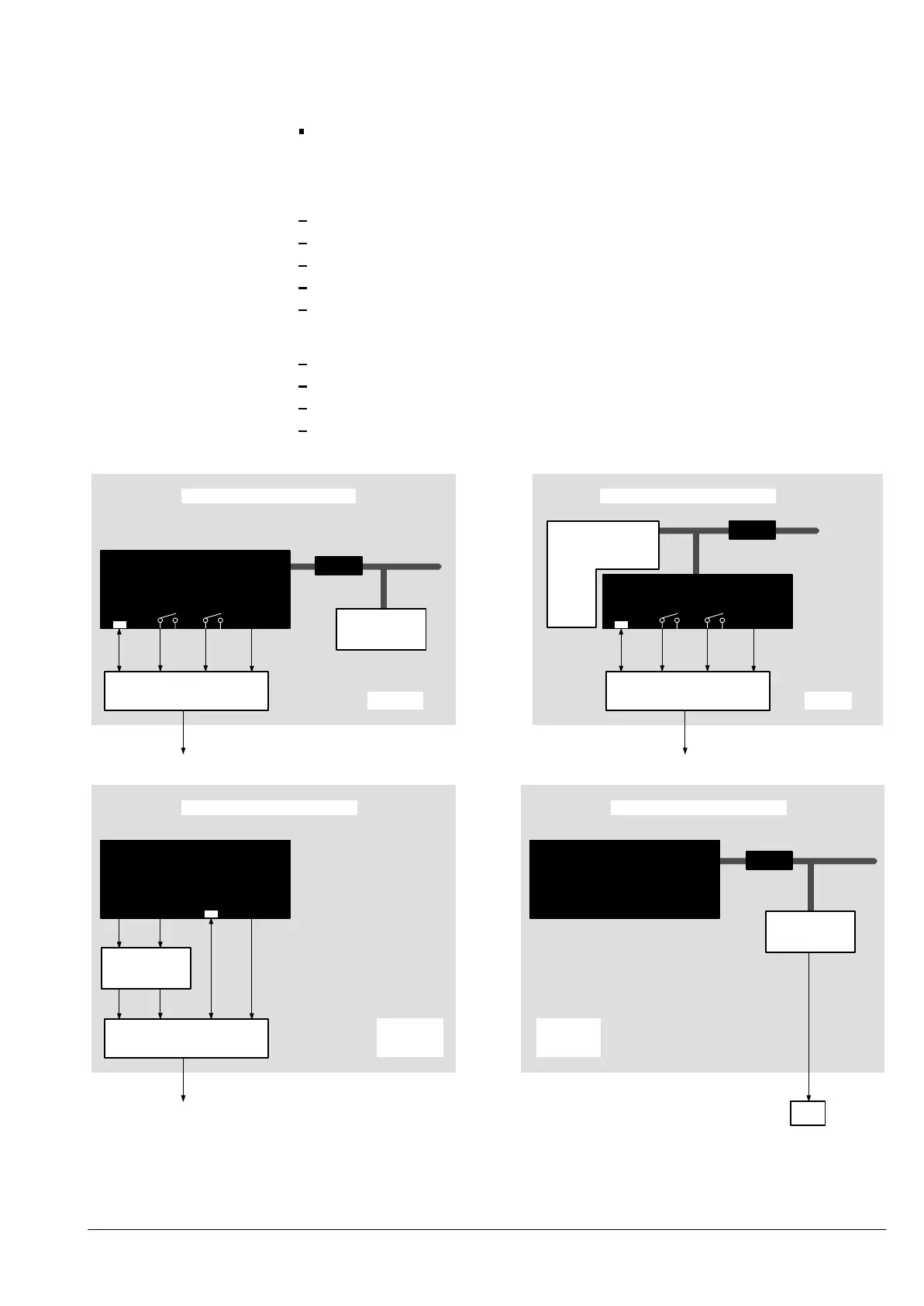

Interfacing
via output contacts and special control in-/outputs of the E3X10. or E3G070
via remote transmission interface E3G091 when using as ’multi channel’
via VdS-module E3L030 to ’Hauptmelder’ (ÜE) (Germany)
also CPU-overlapping initiation possible (several CPUs tied to same RT-device)
I-Bus
E3G070
AlgoPilot
B3Q... (CPU)
I-Bus
Interfacing via E3G070
K2
24V
RT-device
CI11
E3X10.
CPU
I-Bus
Interfacing via E3X10.
K2
24V
RT-device
CC11
alarm faultalarm fault
E3X10./E3G070
Interfacing via E3G091
24V
RT-device
CC11
CI11
Q1.........Qx
E3G091
K2
CPU
Interfacing via E3L030
E3L030
ÜE
CC11
CI11
E3....
