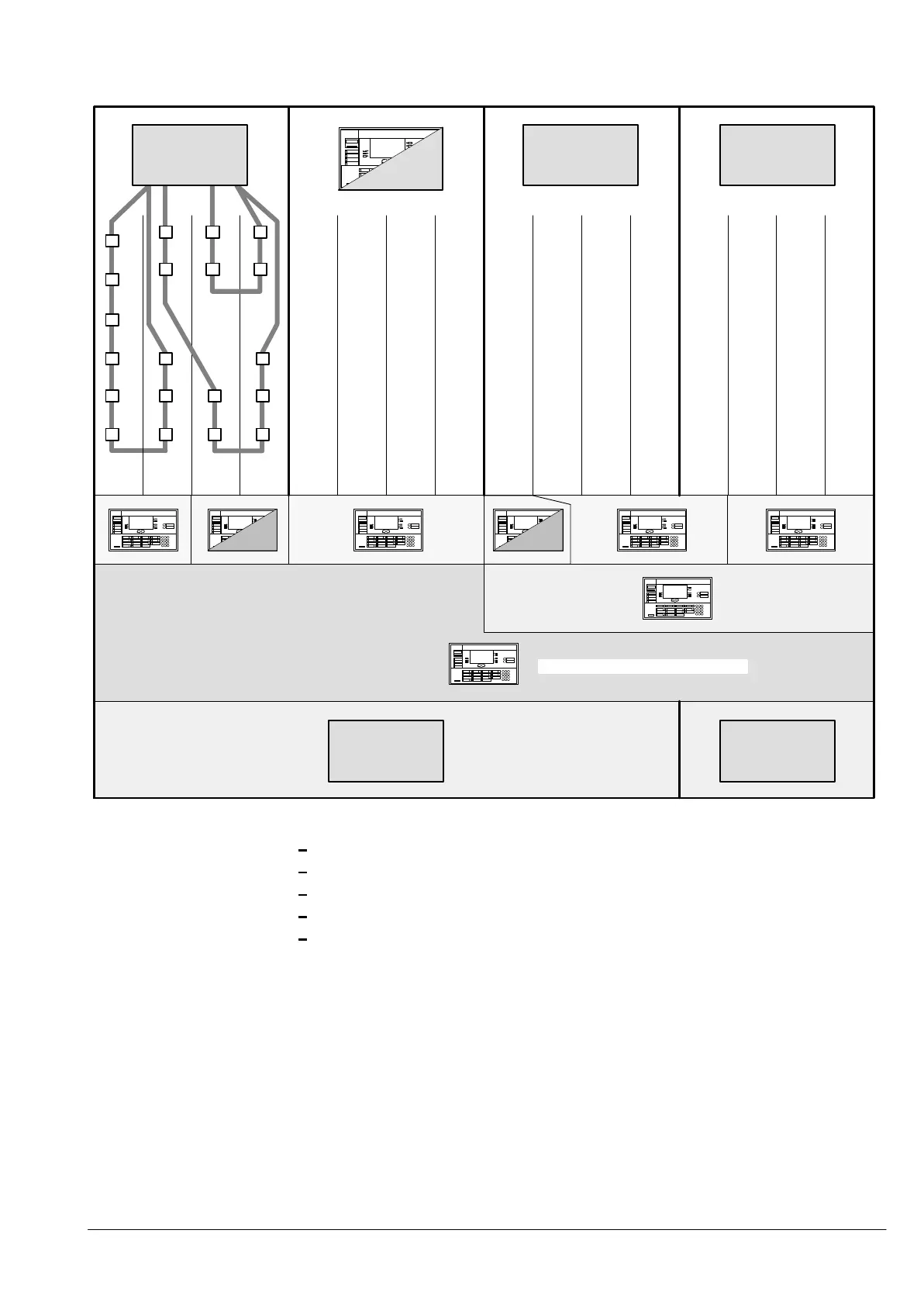

6.6 Logical AREAS
1 2
34
CC
5
6
78
.. ..
.. ..
CC
61 62
63 64
CC
All AREAS control terminal
A R E A A R E A
CI
CI CI
CKCK
within one main CPU (’CI’ or ’CC’) max. 4 AREAS can be configured
CPUs cannot link up with AREAS of other CPUs
CPU overlapping controls are possible
Control terminals (’CT’/’CI’) can be freely allocated to AREAS as required
Visibilities on gateways (’CK’) shall be set per station only, not per AREA! To avoid
CERLOOP addressing problems, one C-Bus station must not be split onto two gate-
ways!
