Siemens Cerberus CS1140 Planning

e4595e25
70
Fire & Security Products
Siemens Building Technologies Group
05.2003

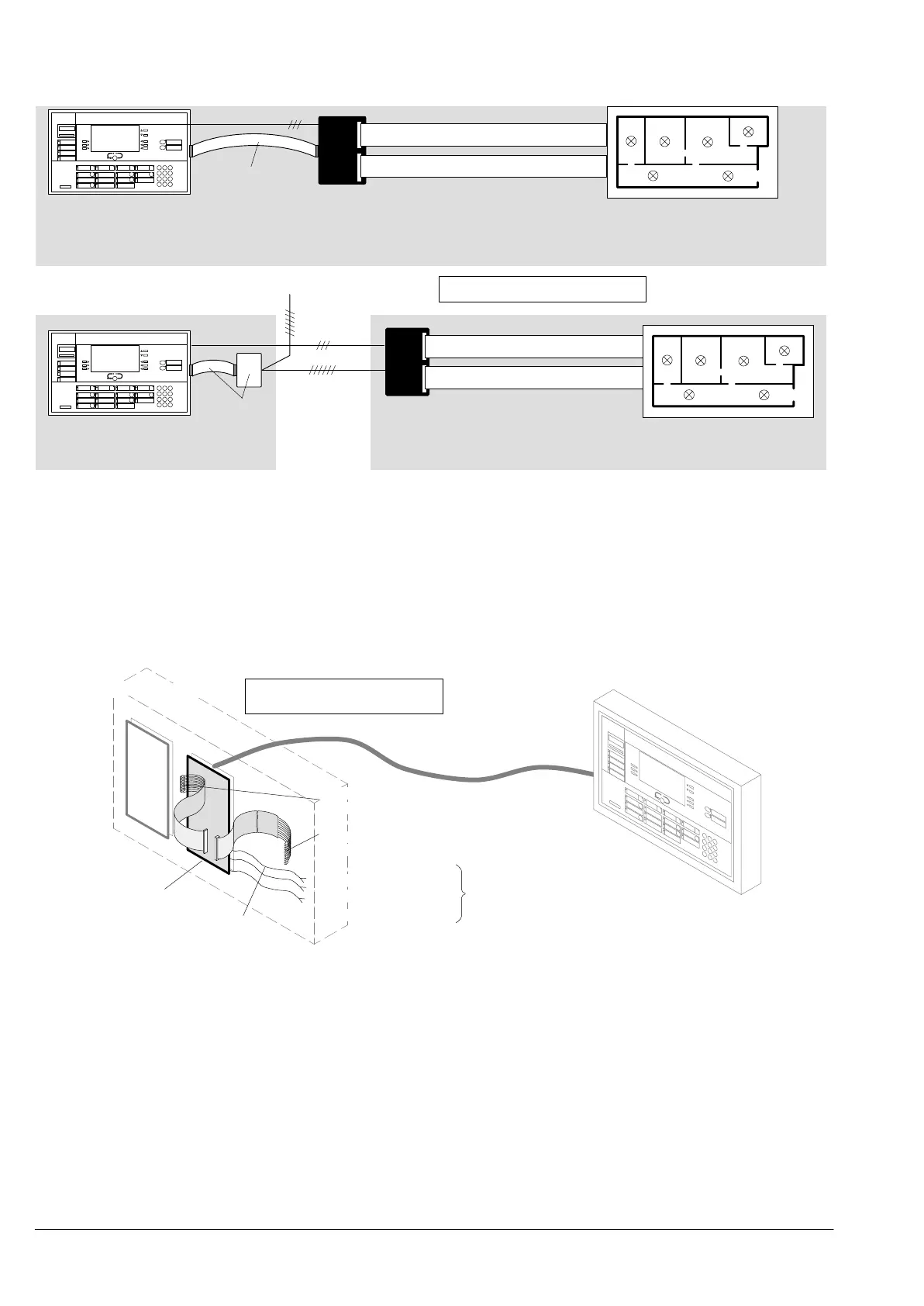

25.6 Mimic Display panel outputs station type CT11 and CI11
AlgoPilot B3Q...
Z3I530
24V
Data bus
max.1000m
(Adapter)
24V
F12A100
or
F12A470
AlgoPilot B3Q...
Parallel branching permissible
 Details see document e1260
(not monitored)
Mimic Display panel
LED flat cable F50F410
1
48
LED flat cable F50F410
cable length 1m, 24 red LEDs
LED flat cable F50F410
1
48
LED flat cable F50F410
Mimic Display panel
K3R072
K3R072
cable length 1m, 24 red LEDs
K3R072:
G short circuit-protected outputs
G output for local buzzer and LED operation
G inputs for button ’buzzer switch-off’ und ’lamp test’
G only suitable for the activation of LEDs
G outputs can only be allocated the statuses from one logical node
G max. 24 devices, however max. 8 addresses
Key ’Lamp test’
Key ’Switch-off buzzer’
Buzzer
LED 1....24
wires 49+50 for ’LED operation’
LED 25....48
wires 49+50 unused
Short-circuit proof in-/outputs only
for inside housing application
max. permissible length
of the data bus 1000m
These in-/outputs can be in parallel with
other K3R072 if located in same cabinet
Dimensions:
104 x 200 x 43mm
Z3I520
AlgoPilot
Mimic display panel housing
K3R072
K3R072
Modules
K3R072 528605 Mimic Display activation
Z3I520 484969 Cable set for K3R072 comprises 12 cables (2-wire with connector, length=0.5m)
F50F410 529141 LED flat cable for K3R072 50-wire, 24 red LEDs, cable length 1m
Z3I530 484972 Adapter for K3R072/B3R051 to adapt flat cable to terminals
F12A100 495275 Flat cable Micro 12-pin, 0.4m from AlgoPilot B3Q... to K3R072/B3R051
F12A470 495288 Flat cable Micro 12-pin, 1.5m from AlgoPilot B3Q... to K3R072/B3R051
