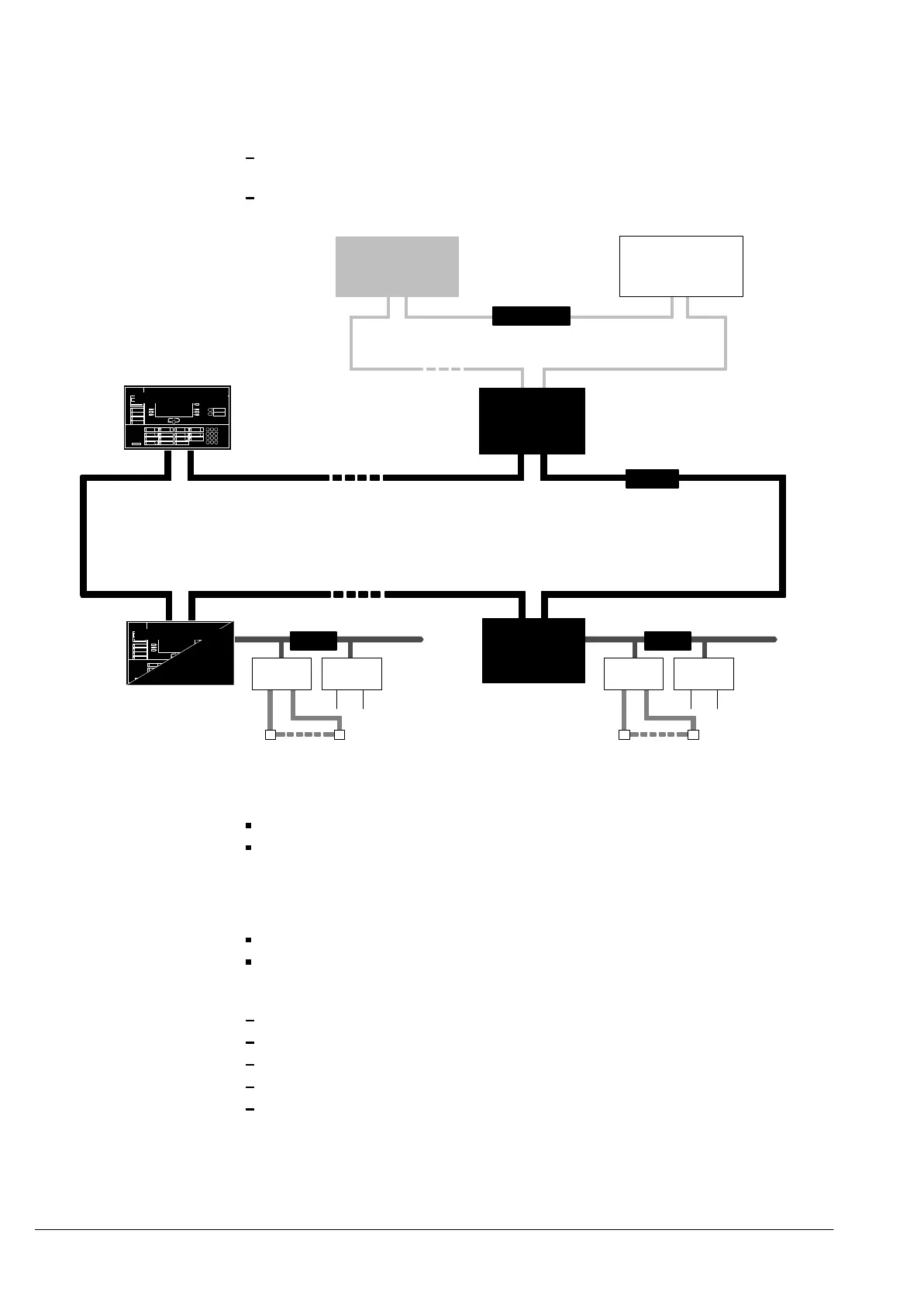

6 C-Bus stations
The C-Bus network contains max. 16 stations (user connected)
within the limits stated below (CC, CI, CT, CK) are any stations in any arrangement pos-
sible
max. 64 AREAS
C-Bus network
– max. 16 stations
– 4 different types of stations
– loop line max. 1400m with G51 ø 0.8mm
I-Bus I-Bus
C-Bus
DMS7000/LMS
(management
system)
CERLOOP
CT11
CK11
CC11
Gateway
Line–
modules
Main CPU
Detector Detector
Control–
modules
Line–
modules
Control–
modules
CI11
Main CPU
(max.15)
(max.16)
(max.15)
(max.15)
Control terminal
Control terminal
6.1 Station
Function unit within C-Bus network
Several stations can be located in the same or in geographically dispersed cabinets
6.2 Type of station
Differentiated by function and represented by a certain module
Certain modules can be used for different types of stations
Types of stations available:
CI11 Combination of main CPU and operating unit (AlgoPilot)
CC11 Main CPU
CT11 Control terminal (AlgoPilot)
CA11 Parallel control terminal
CK11 Gateway (e.g. conversion of C-Bus protocol  CERLOOP protocol)
